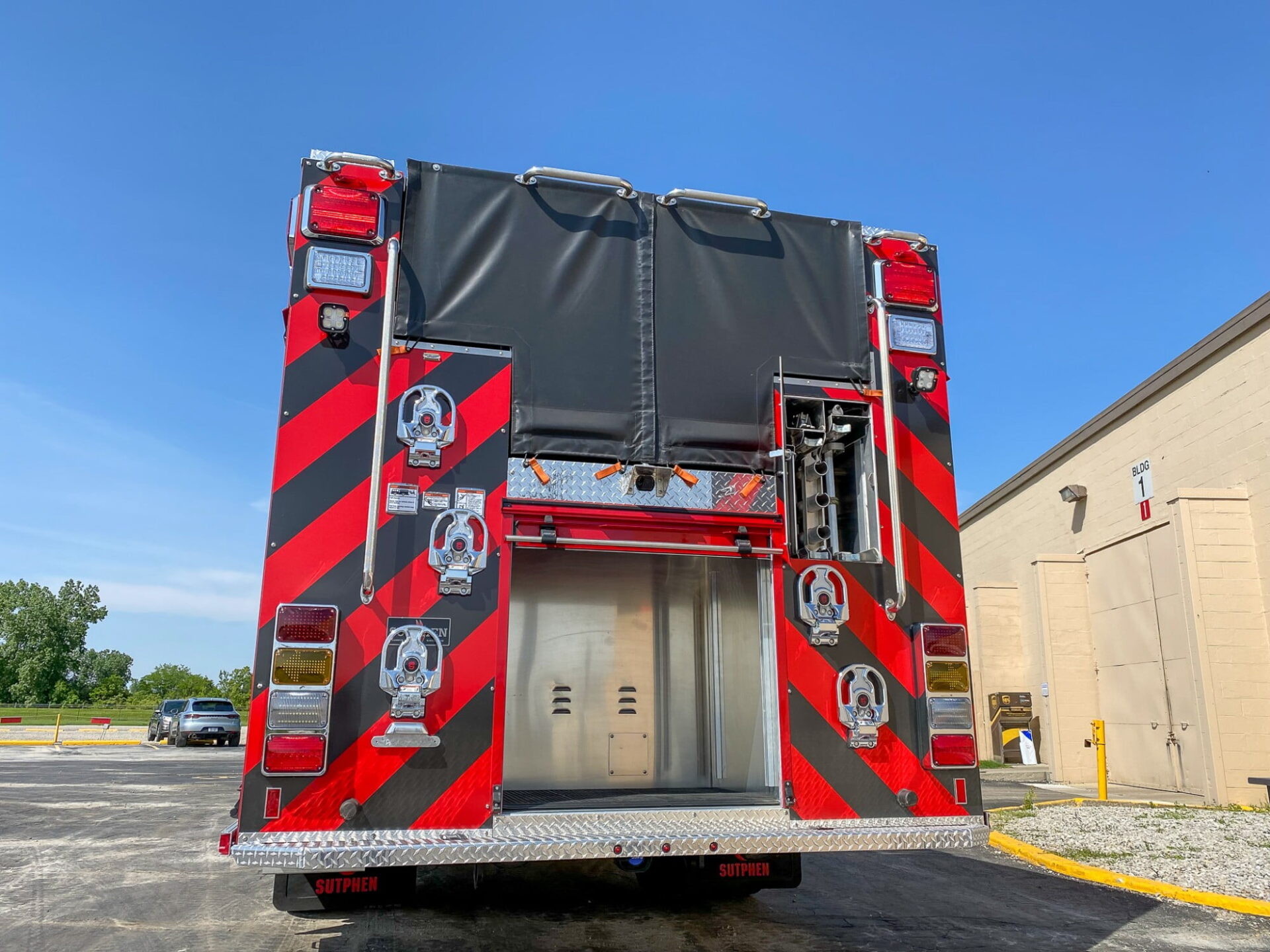

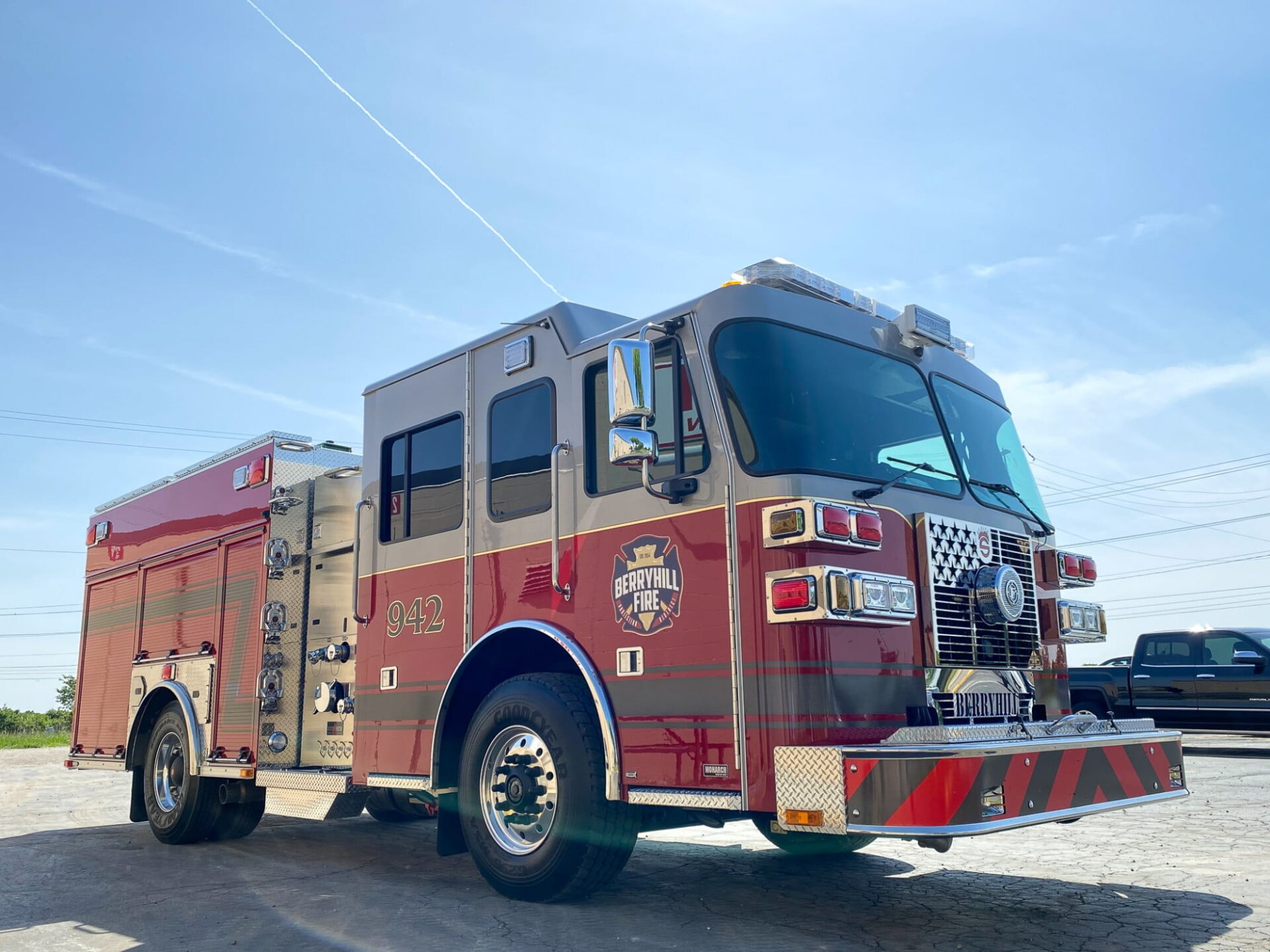

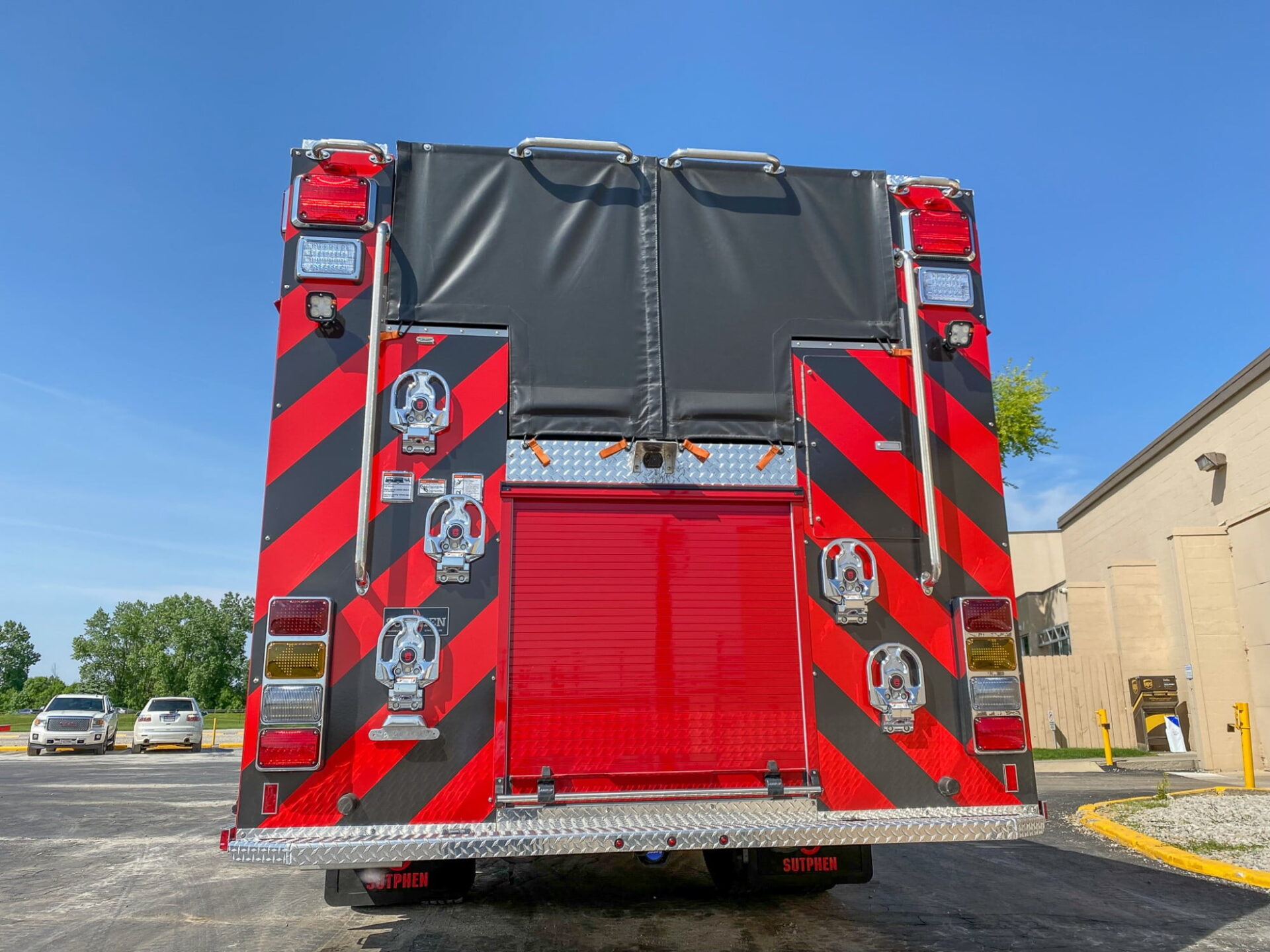

Custom Pumper – Berryhill Fire Protection District, OK

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs.
Rear Axle and Suspension
24,000 lbs.
Engine
Cummins X 12, 500HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS4000

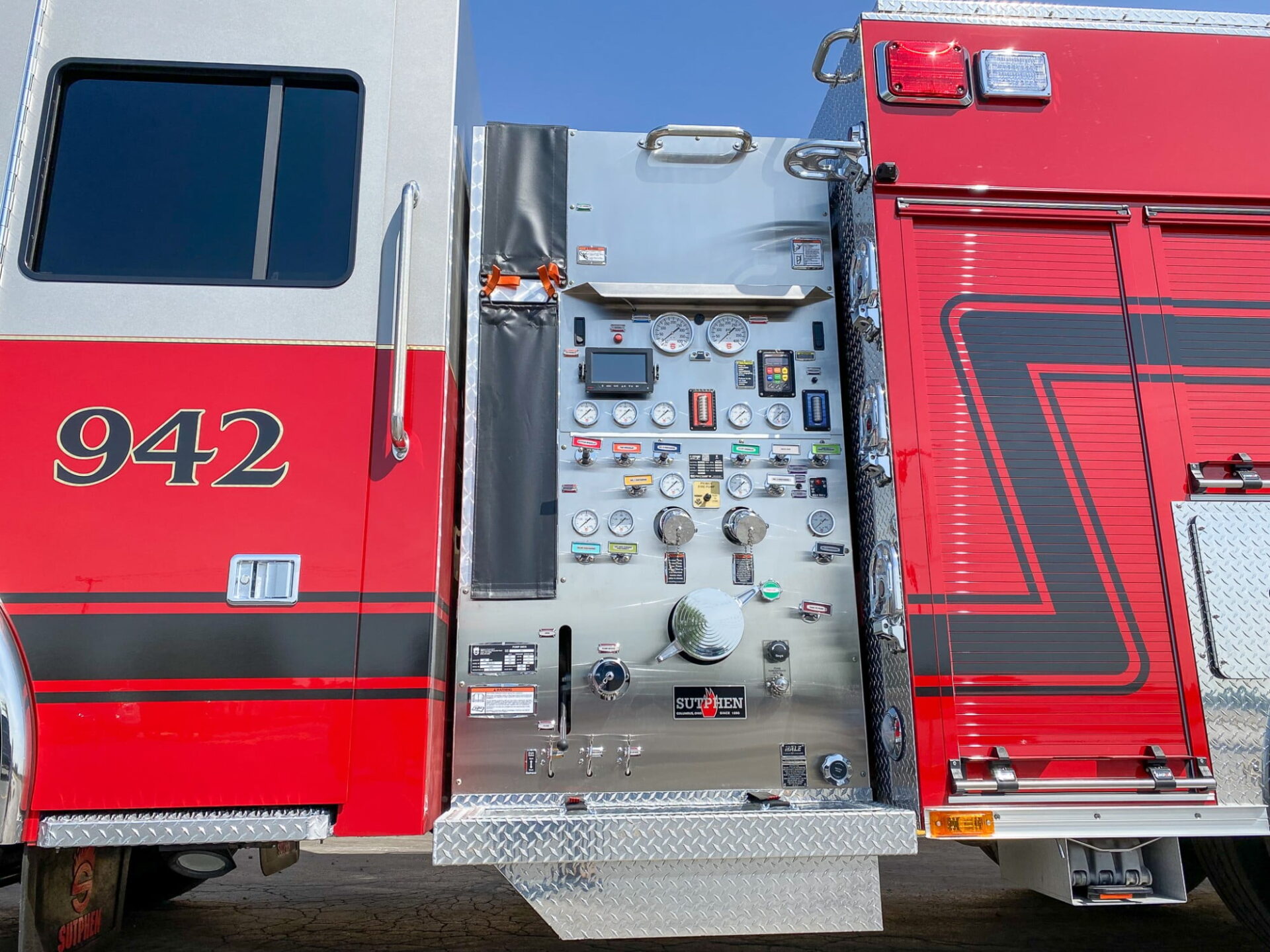

Water Pump
Xs qmax 2000 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(1) 2 ½” Crosslay
Speedlays
(2) 2” w/ Swivels and Poly Lift-Out Trays
Water Tank
750 -gallon
Water Tank
30-gallon foam tank
Construction
3/16” extruded aluminum

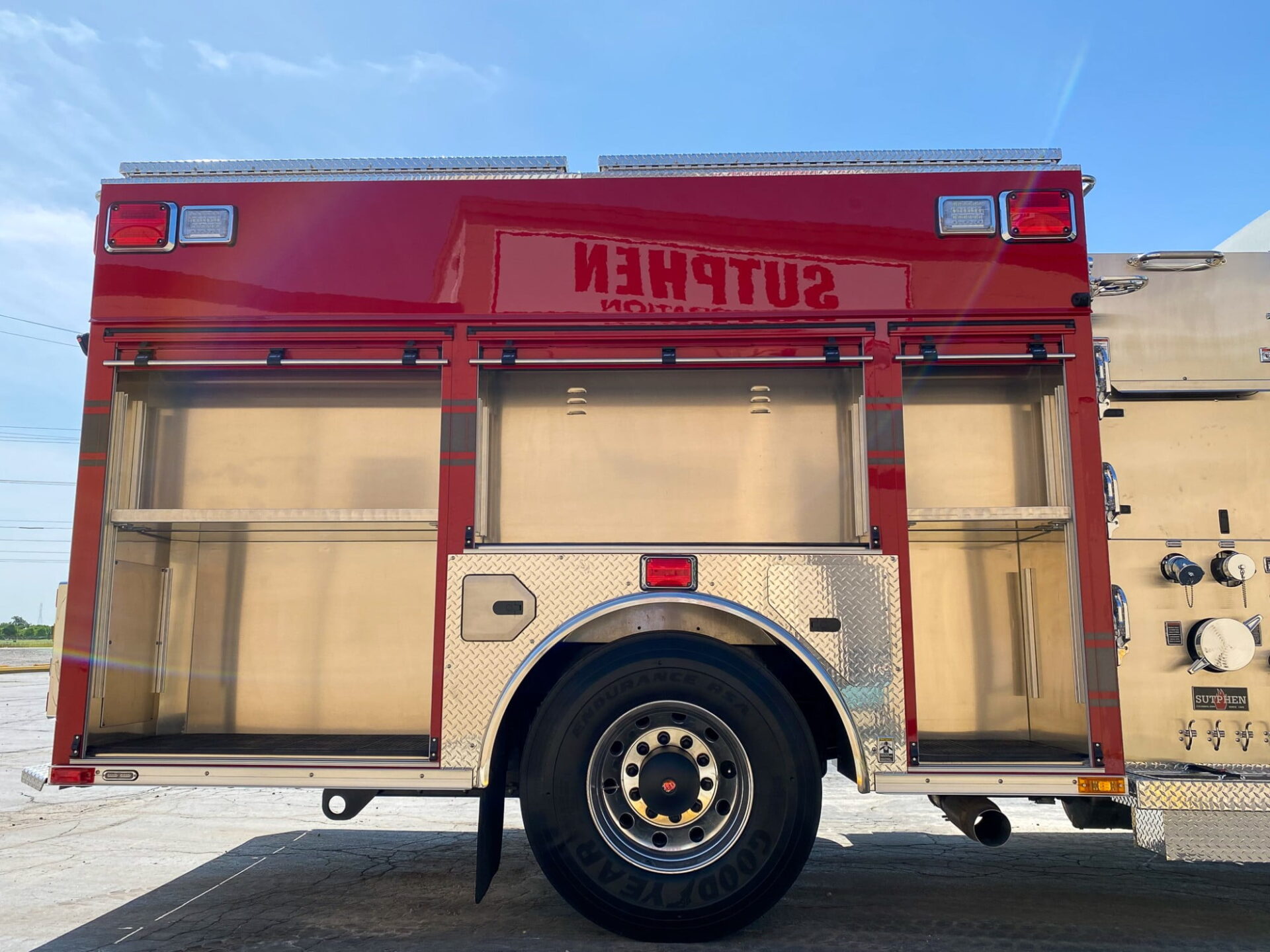

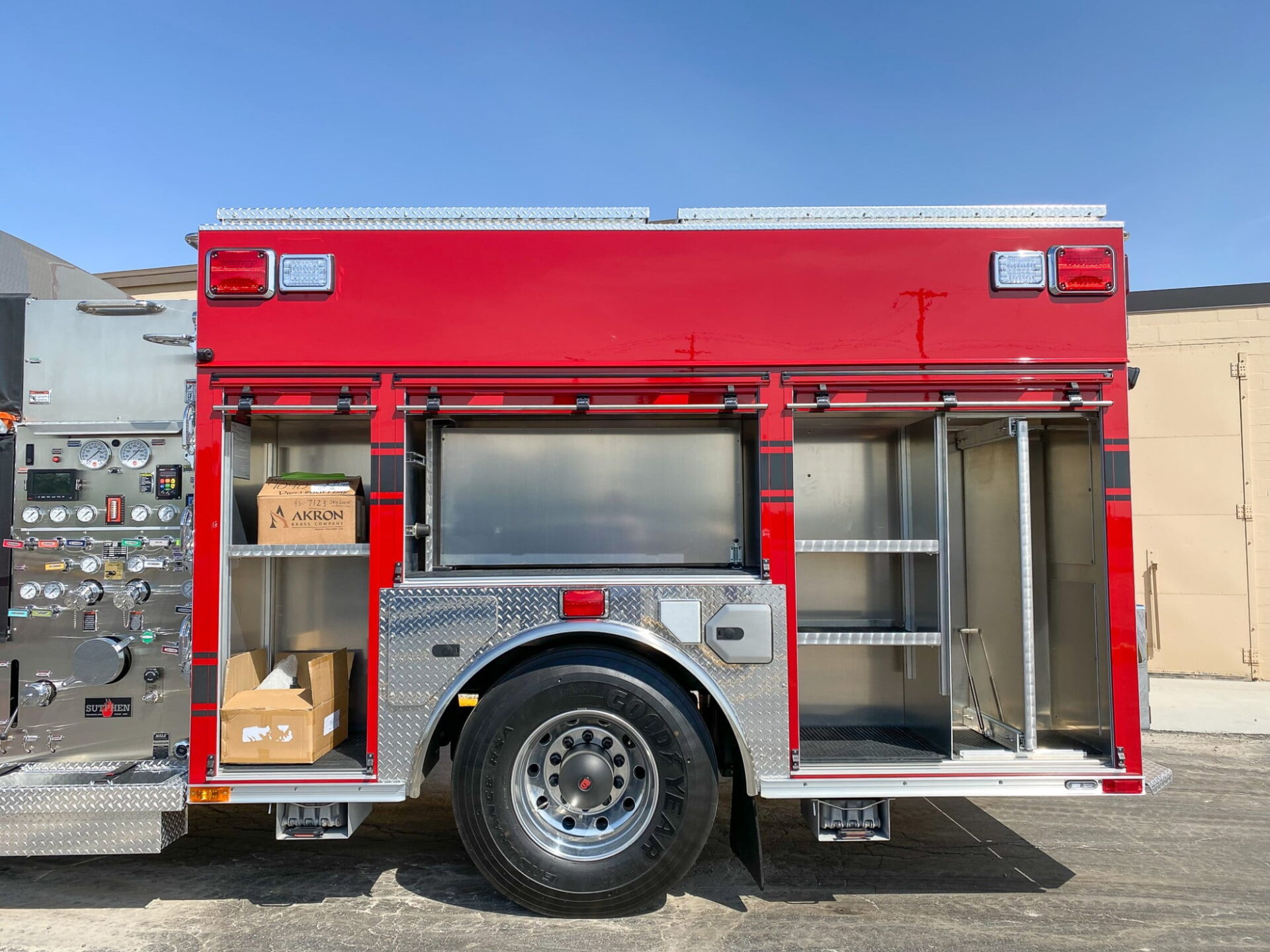

Doors
Amdor roll-up compartment
Total Compartment Space
244 cu. ft.
Body
G2 – Alum 40/51 Ladder Chute
Bumper Extension
18” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC Inview 360HD
Oil Dry Hopper
Included
FRC Spectra Brow
Light
Whelen Freedom LED
Lightbar
FRC 900 LED
Scene lights
FireTech LED Work
Lights
