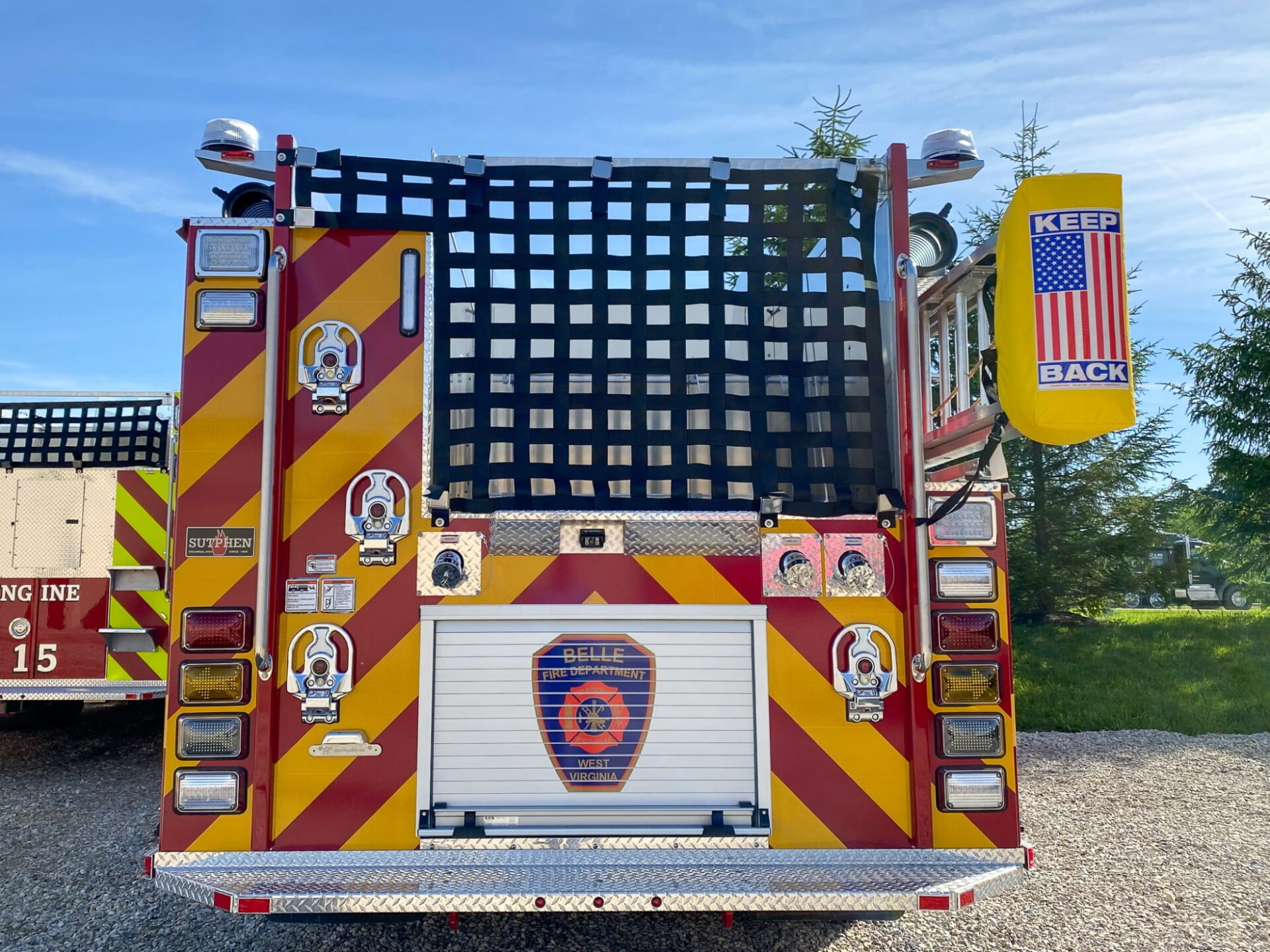

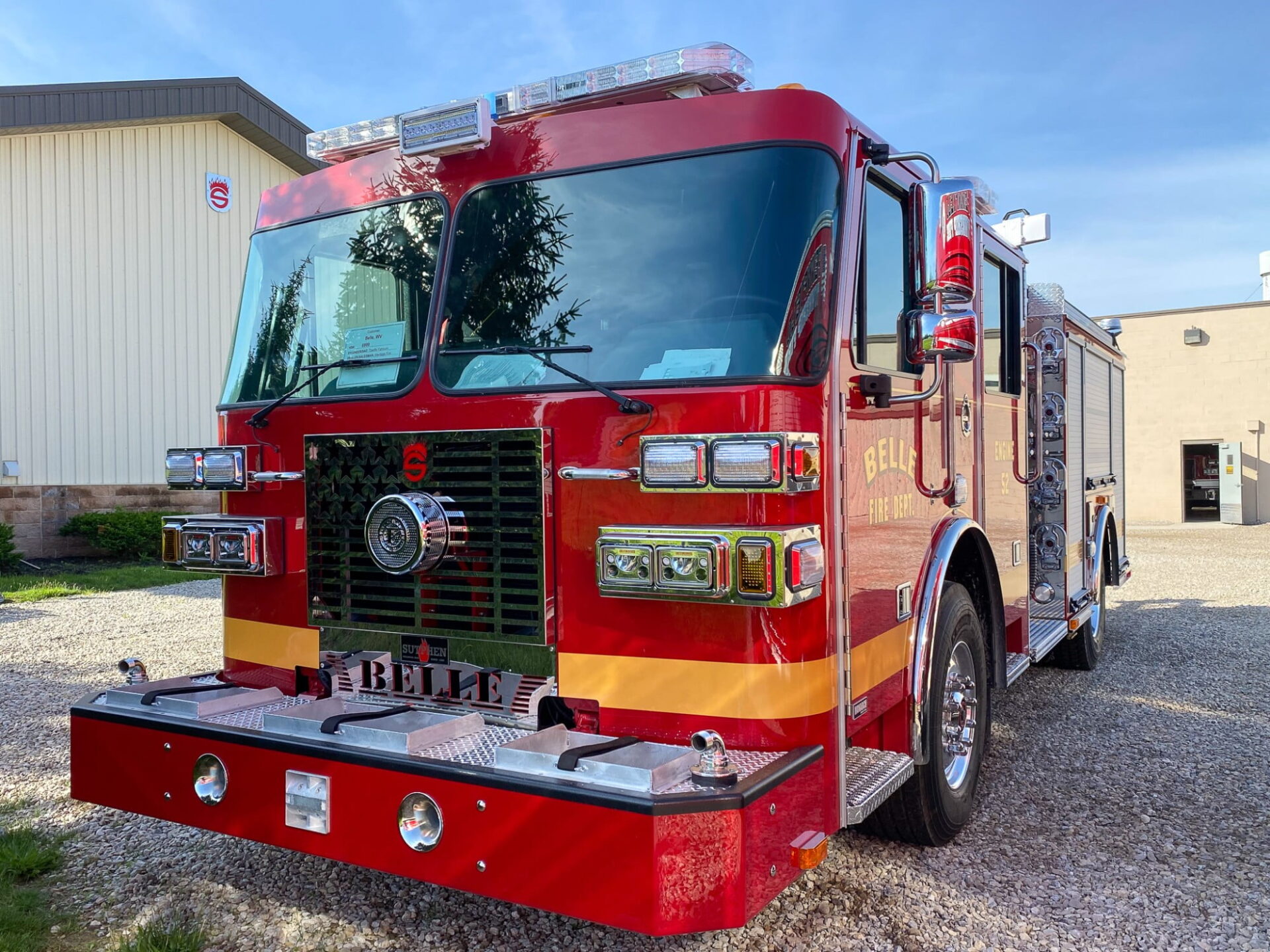

Custom Pumper – Belle Fire Department, WV

Specs

Cab
Four-door, five-person
10” Single, Domex
Frame rails (110k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 450HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qtwo-2000 gpm 6” suction two stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (2) 2 ½” Right Rear, (2) 1 ½” Front Bumper, (1) 3” Deck Gun
Water Tank
750-gallon
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment , satin finish

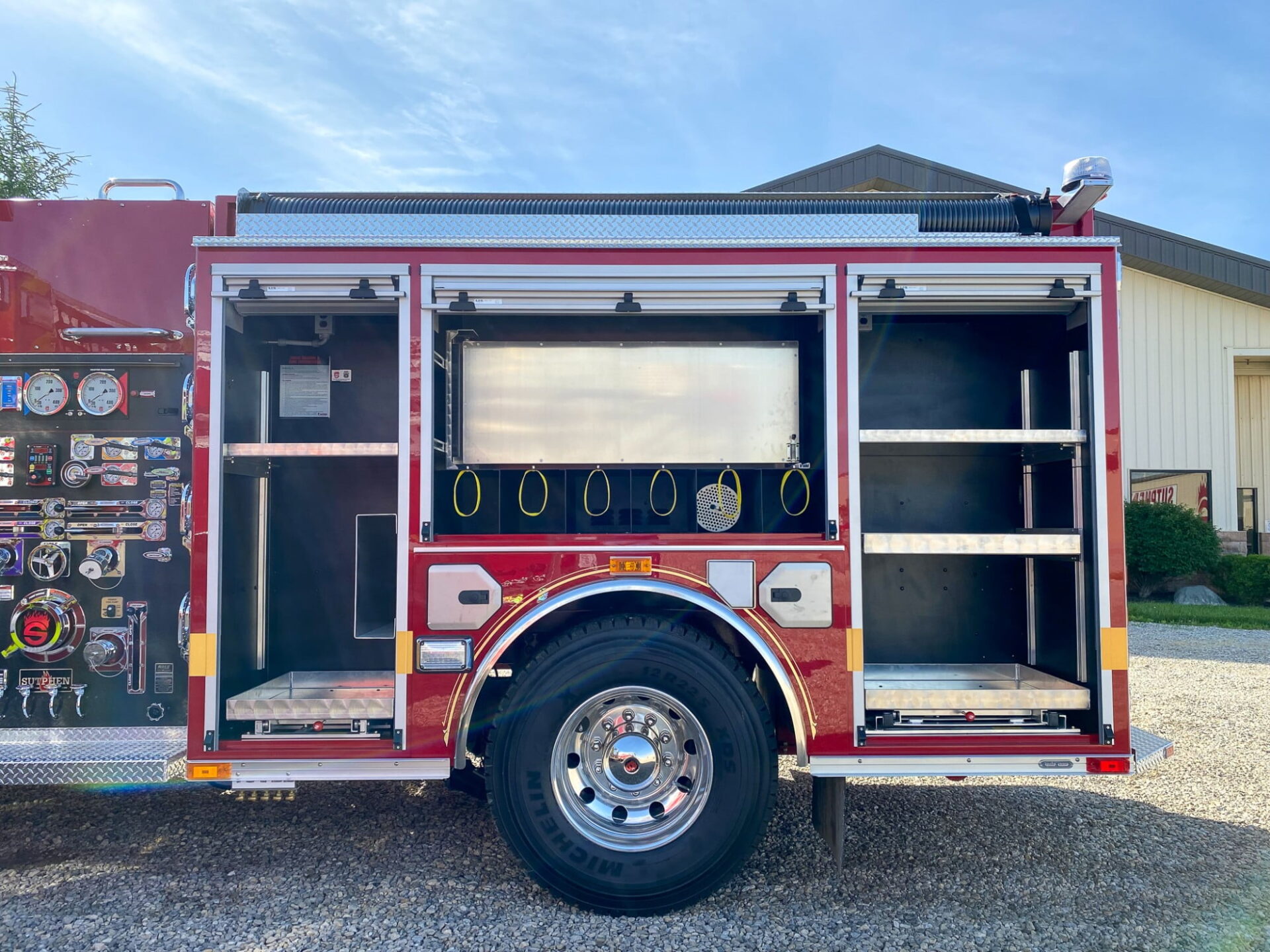

Total Compartment Space
Over 170 cu. ft.

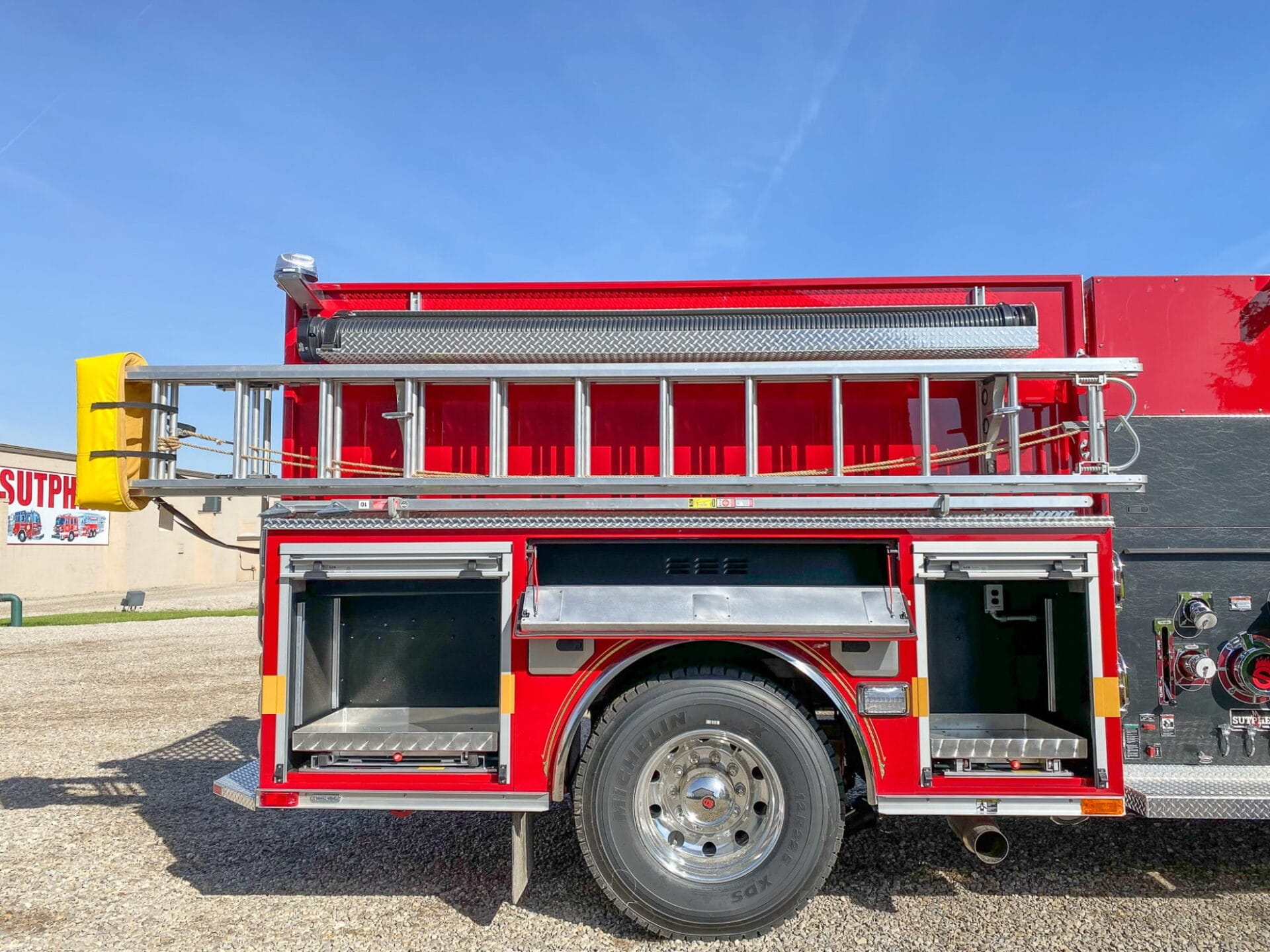

Duo-Safety Ladder Package
900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
Body
PA-11 Res 31/37 Low Right w/ Chrome Brackets
Bumper Extension
20” formed stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
Wired, Brigade, Single Camera
Whelen Freedom IV
72” led lightbar (12 modules w/ opticom)
FR Spectra 12V
Brow
FR Spectra 12V
Tele
Whelen Freedom 23”
Mini lightbar
