Custom Pumper – Barboursville Fire Department, WV

Location:
Barboursville, West Virginia
Department:
Barboursville Fire Department

Specs

Cab
Four-door, six-person
10” Double Frame
Rails, (50k psi)
Front Axle and Suspension
19,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins X 12, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000

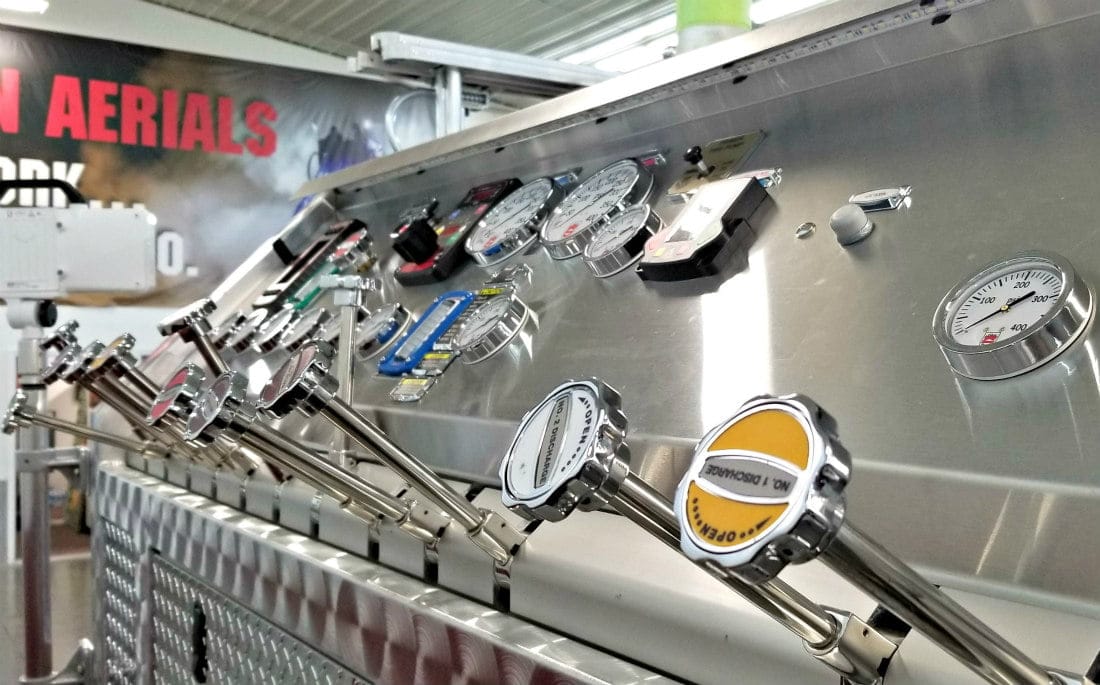

Water Pump
Qmax-1500 gpm
Discharges
(2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/Right of Main hosebed, 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(2) 2”, with 1 ½” Swivel
Water Tank
1,000-gallon
Water Tank
30-gallon foam tank
Hale Foamlogix 2.1
Included
Construction
3/16” extruded aluminum
Doors
Hinged compartment door
Total Compartment Space
257 cu. ft. of compartment space
Duo-Safety 900A (24
2-section & 775 dr-14 14’ roof & 10’ folding)
Bumper Extension
18”
Wheel Chocks
Ziamatic quic-lift electric ladder rack
Roto-Ray Warning Light
Included
Safety Vision SV-CLCD0-70
Camera system
Siren
Federal q2b
Whelen M9 LED
Scene lights
Traffic Advisor, Whelen
Led, 36”
