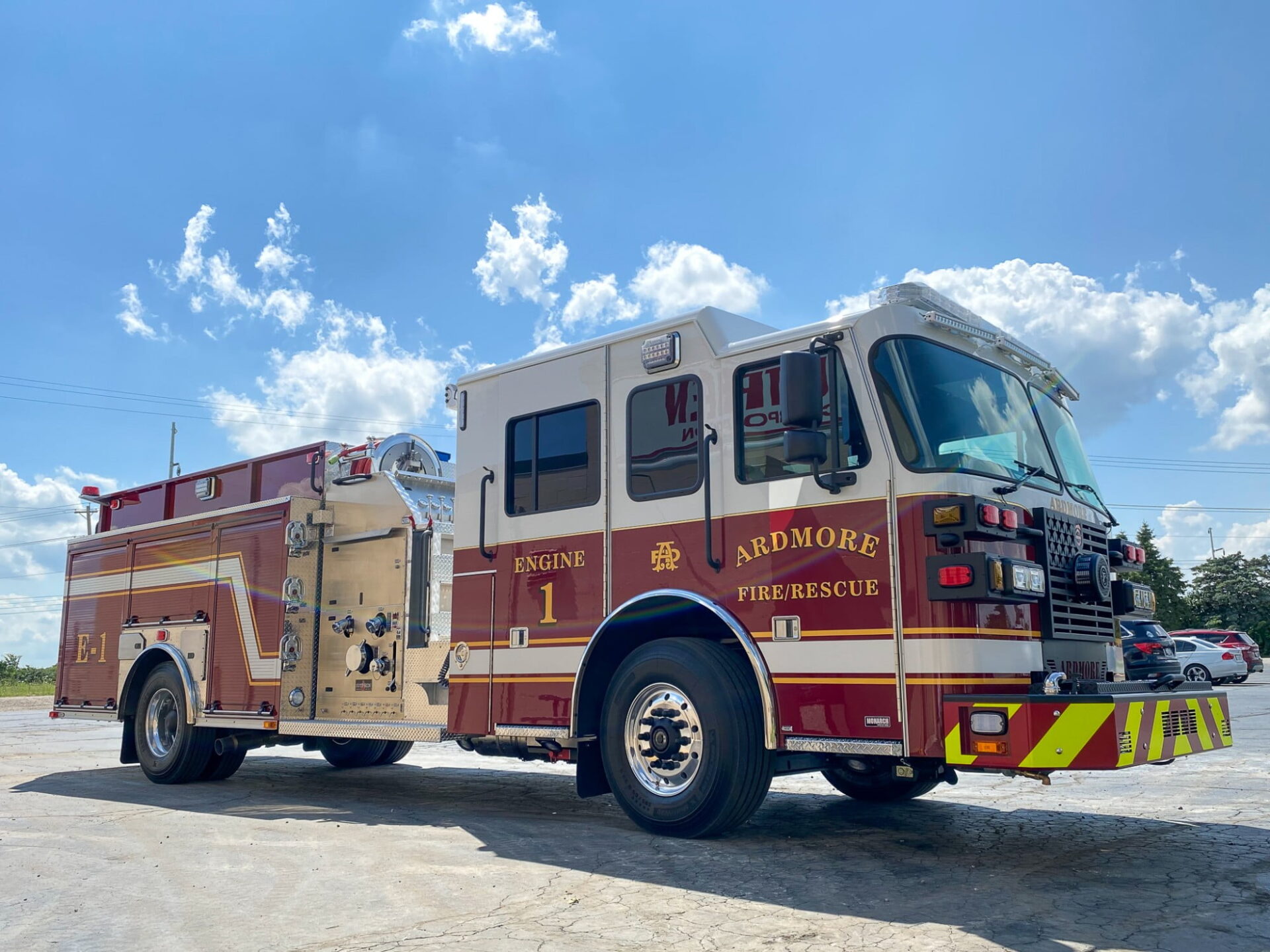

Custom Pumper – Ardmore Fire Department, OK

Specs

Cab
Four-door, five-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS3000

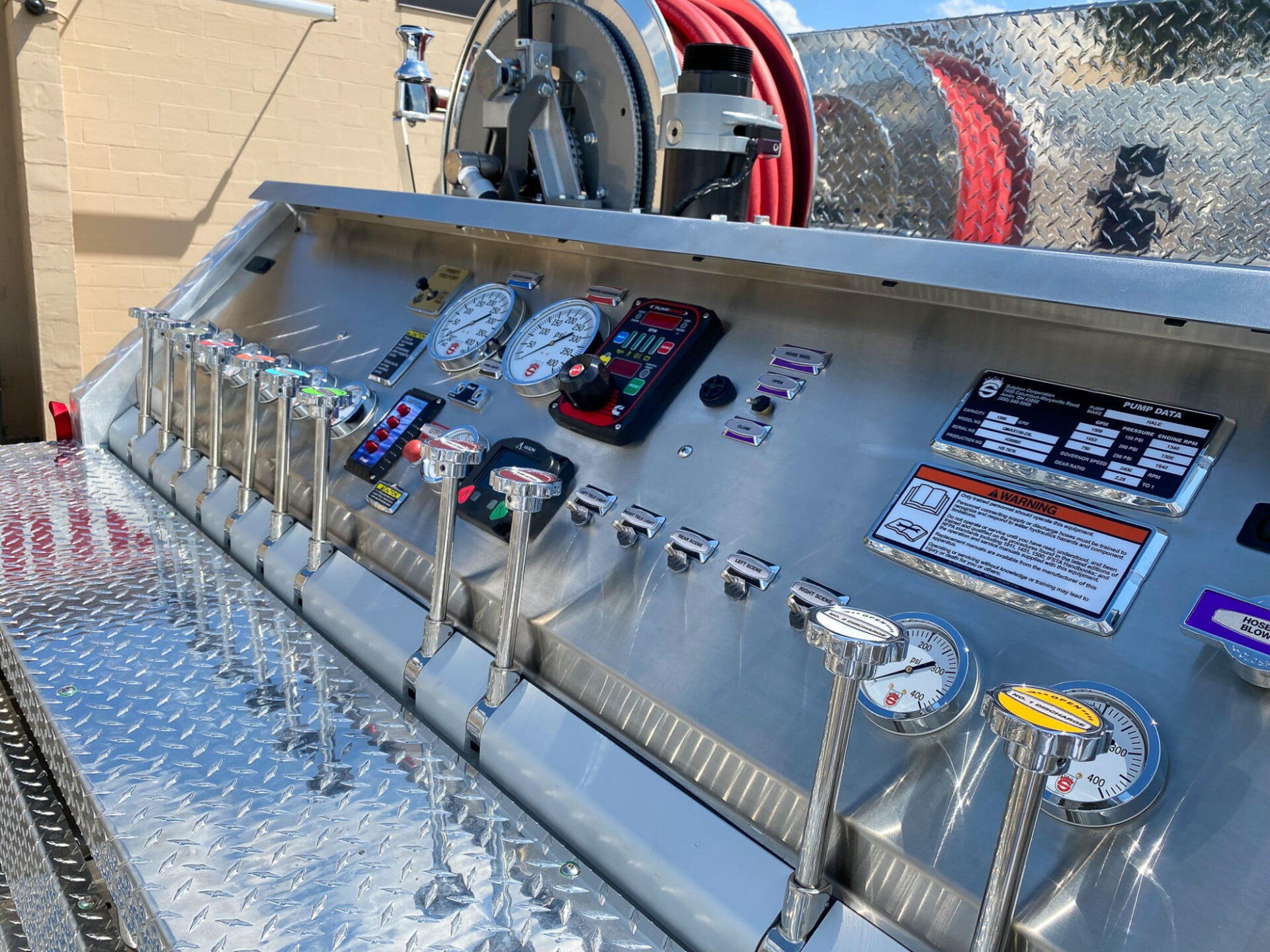

Water Pump
Qmax - 1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 2” Speedlays w/ 1 ½” Swivel
Water Tank
1000-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment , painted

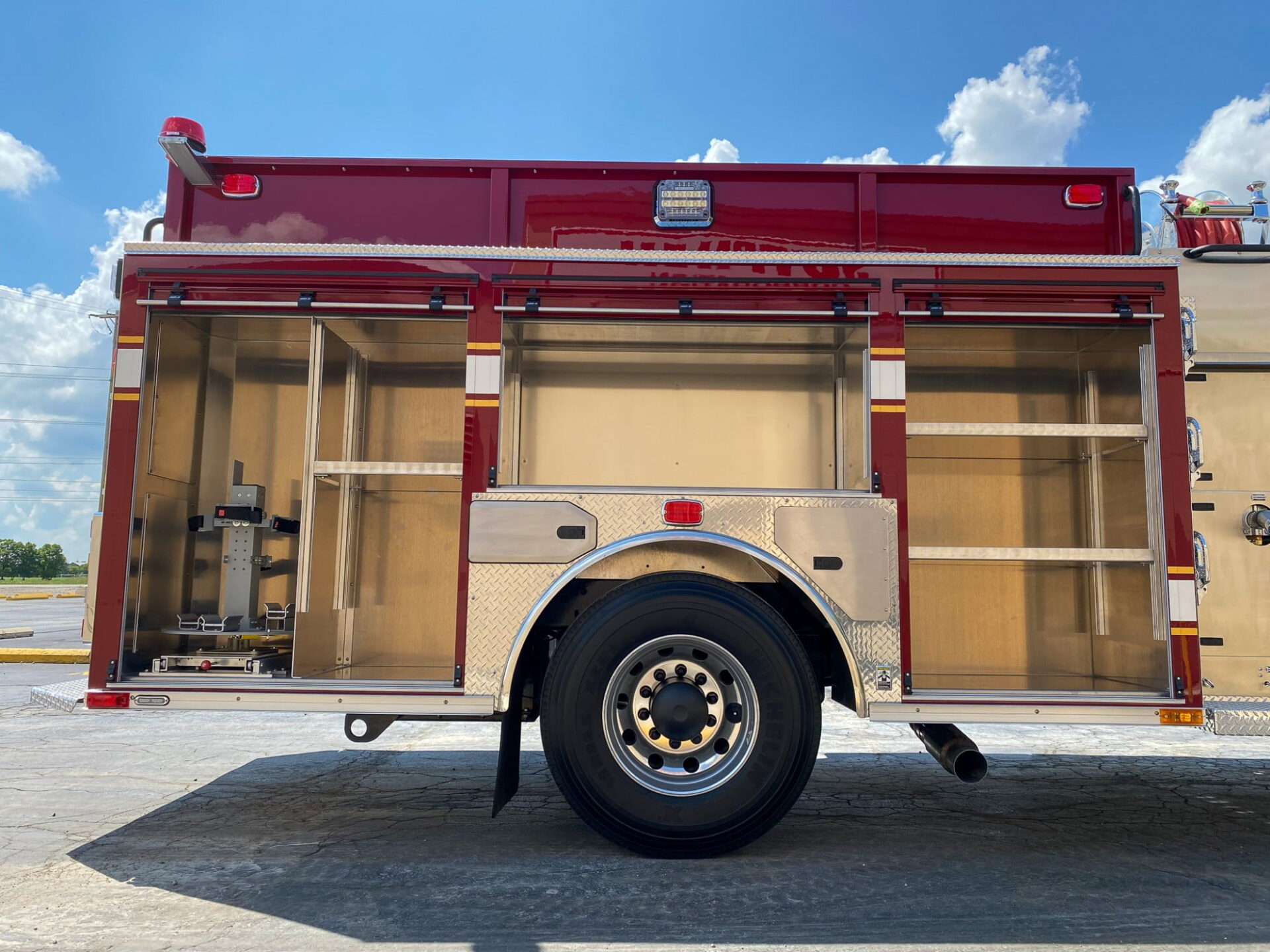

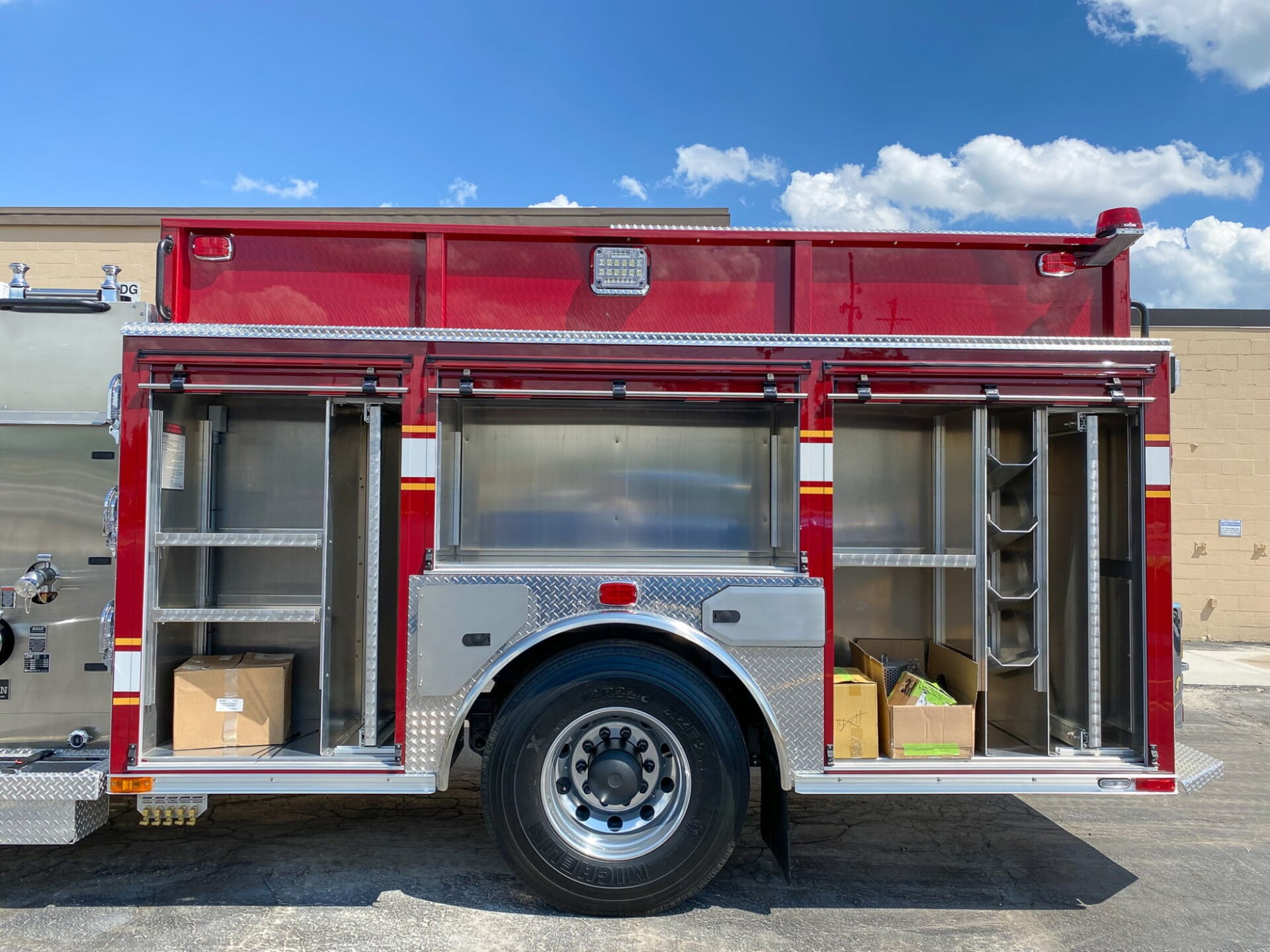

Total Compartment Space
Over 246 cu ft.
Alco-Lite Pel-24 Ladder Package
(1) 24’ 2-section, (1) PRL-14 14’ Roof, (1) 10’ Folding
Body
G9 – Alum 40/51 Ladders Through Tank
Bumper Extension
18” formed steel channel,
Siren
Federal q2b , grille mount
Intercom System
Sigtronic 5 Position Headset
Camera System
FRC, Inview Trueview, Two Camera (Wired)
Whelen Freedom LED
Lightbar
Hiviz 72” Brow
Light
Guardian Elite LED
Scene light
Firetech FT-X-15-F-W Tele
Lights
