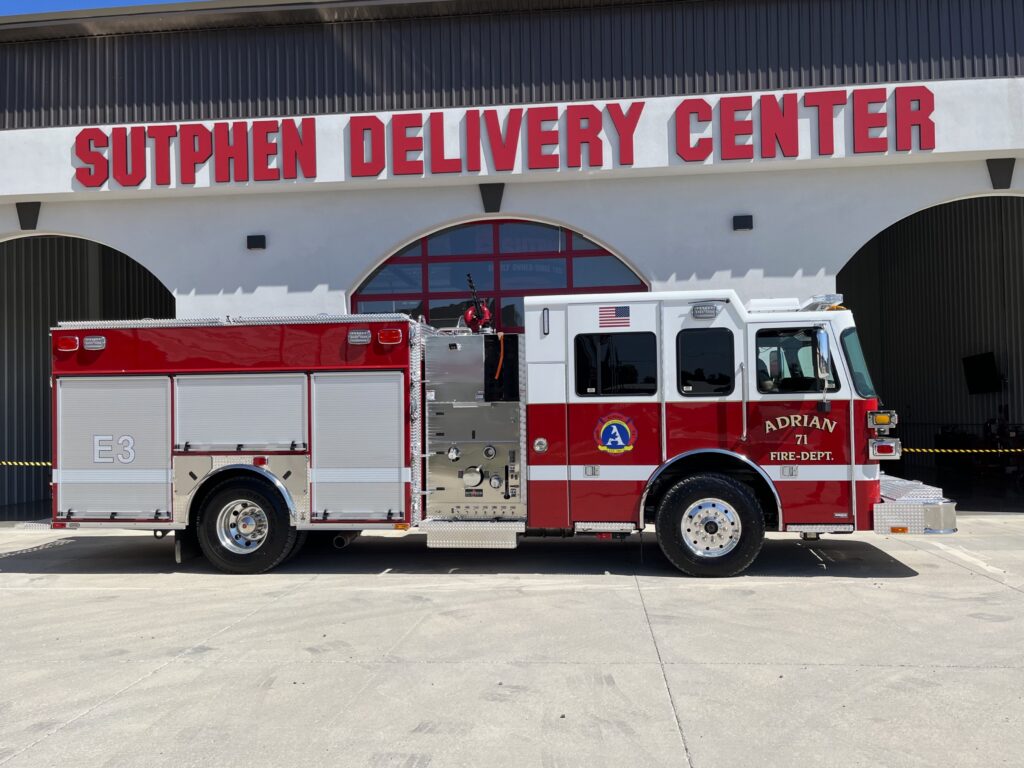

Custom Pumper – Adrian Fire Department, MI

Specs

Cab
Four-Door, Four-Person
10” Double Frame
Rails (50K PSI)
Front Axle and Suspension
20,000 lbs w/ (4) 56" Leafs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
QMAX-1500 GPM, Single Stage Pump
Discharges
(2) 2 ½” Left, (1) 3” w/ 4” Outlet Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, 2 ½” Plumbing, (1) 3” Deck Gun
Crosslays
(2) 2” w/ 1 ½” Swivel
Water Tank
1,000-Gallon
Foam Tank
25-Gallon
Foam System
Hale SmartFoam 2.1A
Construction
3/16” Extruded Aluminum
Doors
Mixed AMDOR Roll-Up and Hinged Compartment
Total Compartment Space
300 cu. ft
Duo-Safety Ladder Package
900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
Body
S9 – Alum 43/53 Lad Thru Tank
Bumper Extension
24” Polished Stainless Steel
Siren
Federal Q2B, Grille Mount
Camera System
FRC, Inview Trueview, Three Cameras (Wired)
Whelen Freedom IV 72" LED
Lightbar
Whelen PFH2 12V
Brow Light
Whelen ION-T Red LED
Light
Whelen M9V2 Red LED
Light
Monitor
TFT XFC-42 CrossFire w/ Safety Flow w/ Quad Stack Tips & Stream Shaper
