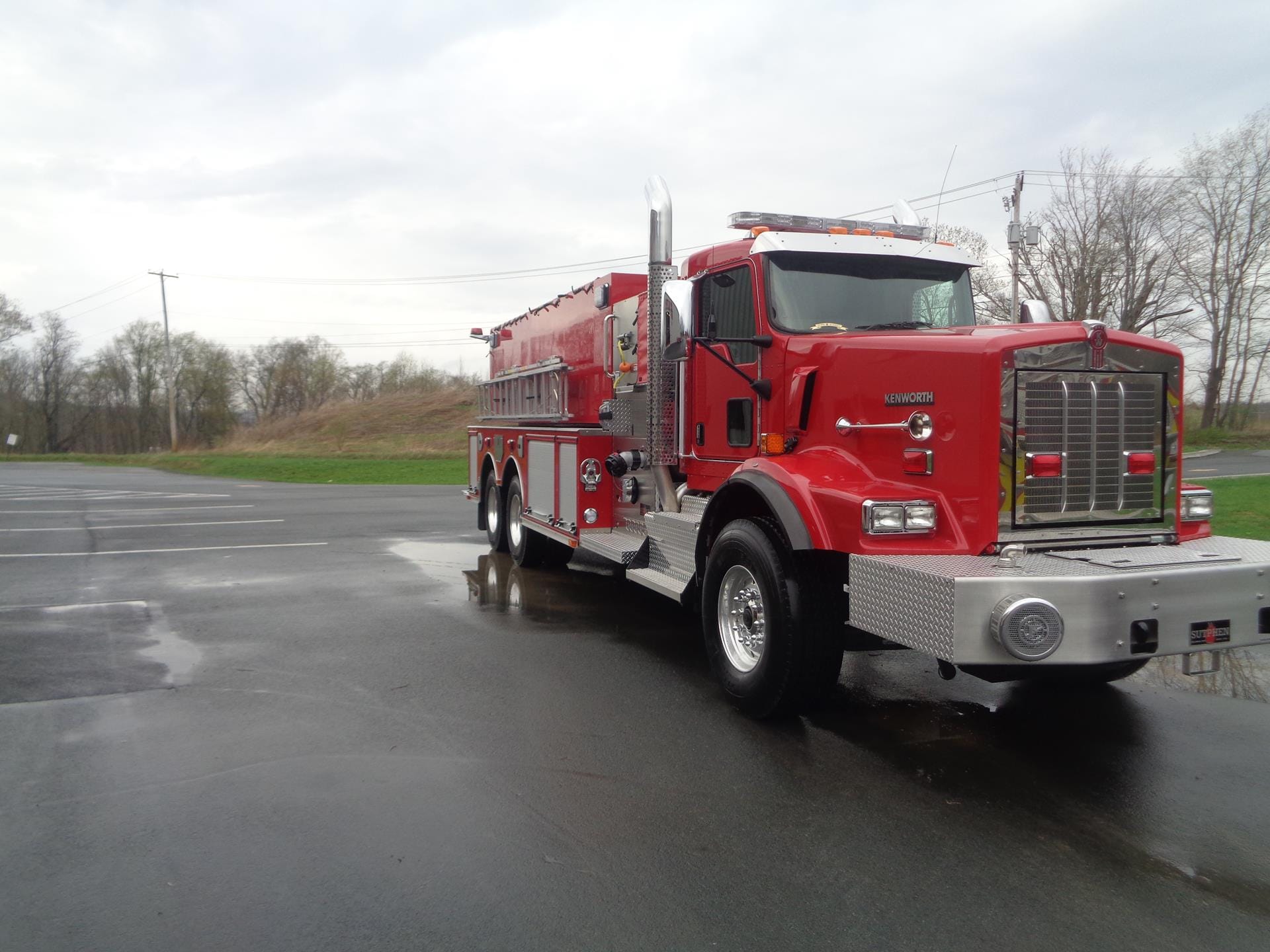

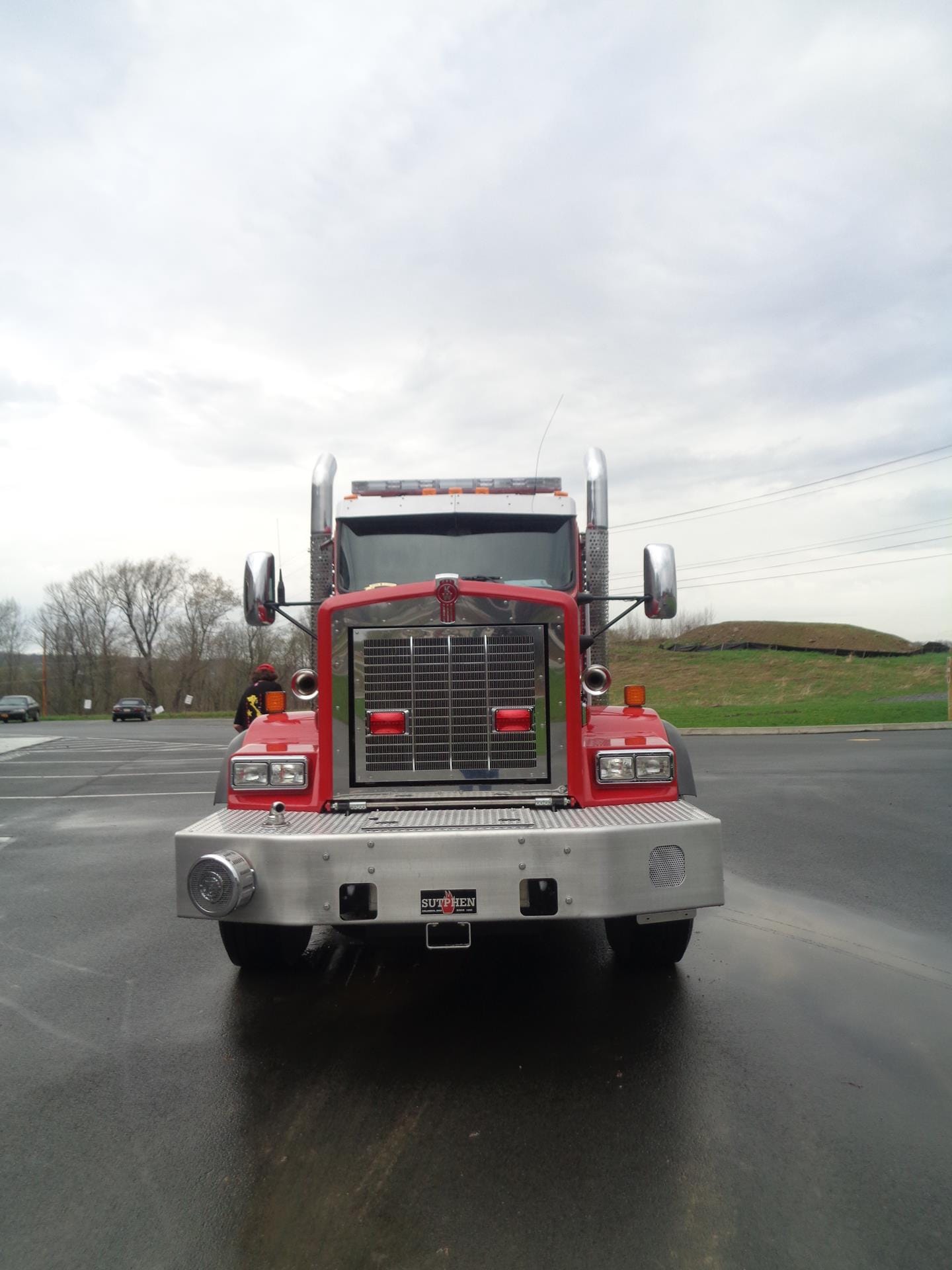

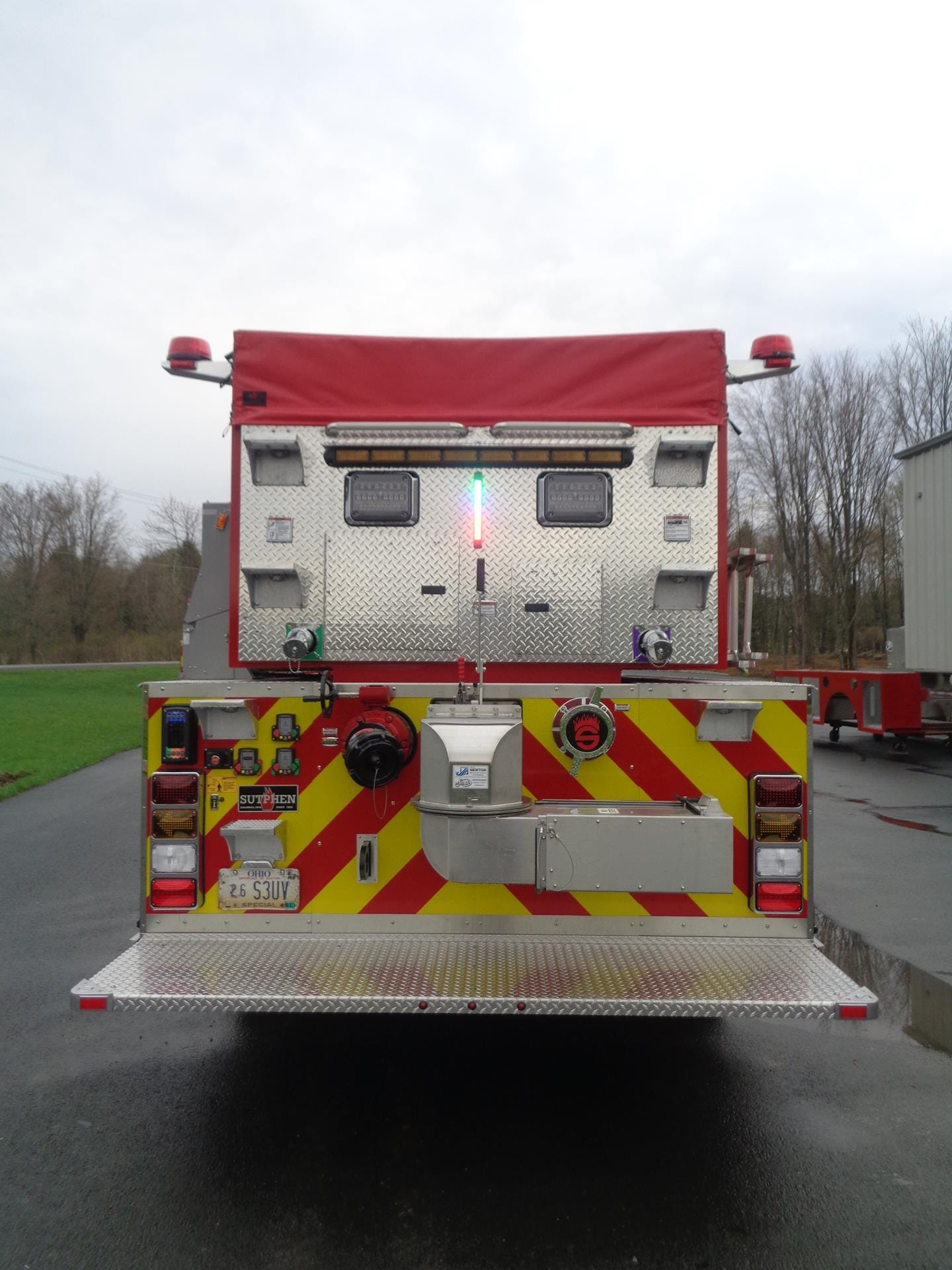

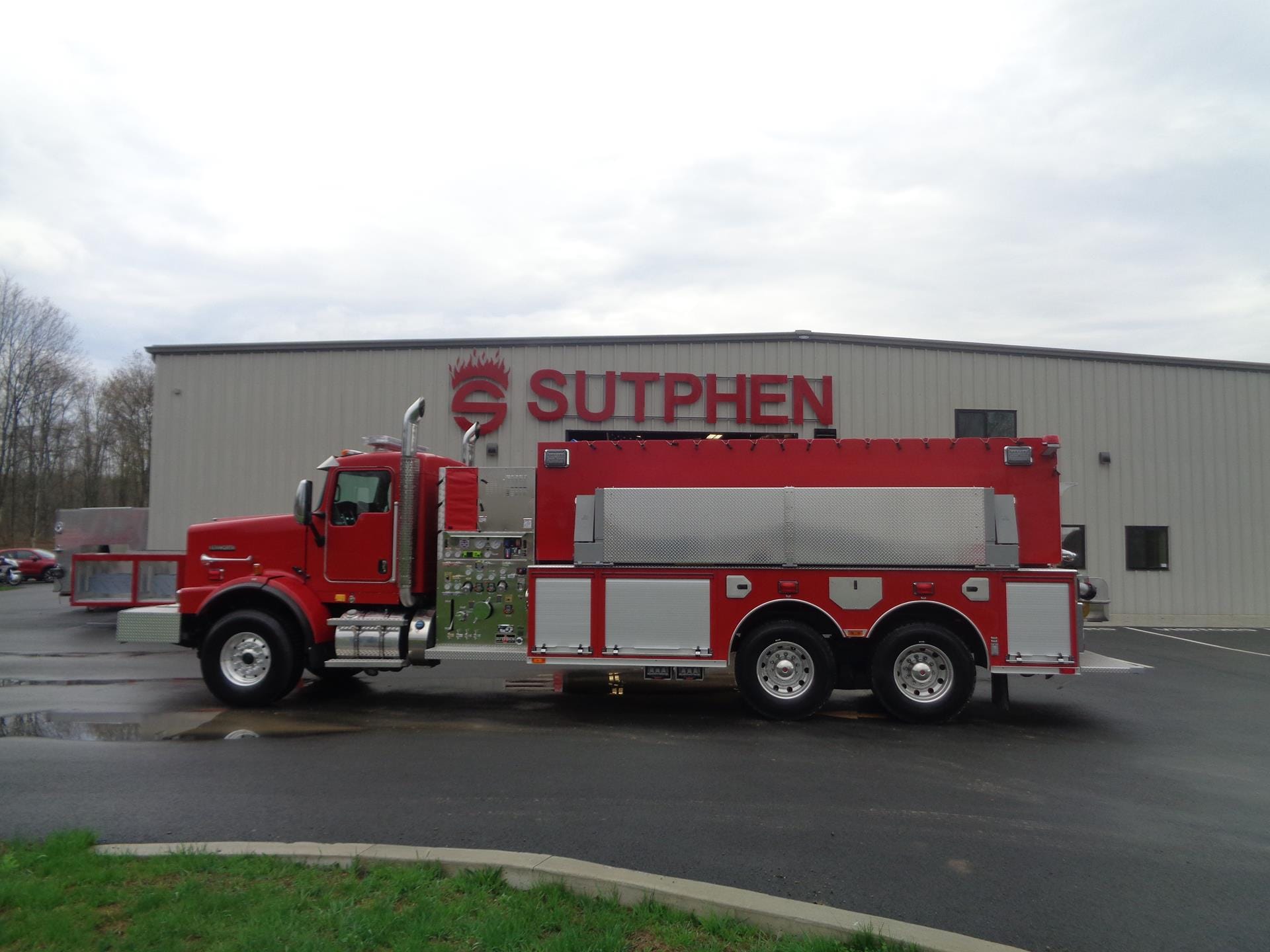

Commercial Stainless Wetside Tanker – Fayetteville Fire Department, OH

Truck Type:
Dealer:
Sutphen
Location:
Fayetteville, OH
Department:
Fayetteville Fire Department

Specs

Cab
Two-door, two-person
Front Axle and Suspension
20,000 Lbs.
Rear Axle and Suspension
46,000 Lbs.
Engine
Cummins ISX 12 500HP
Alternator
Delco 320 AMP
Transmission
Allison 4500 EVS

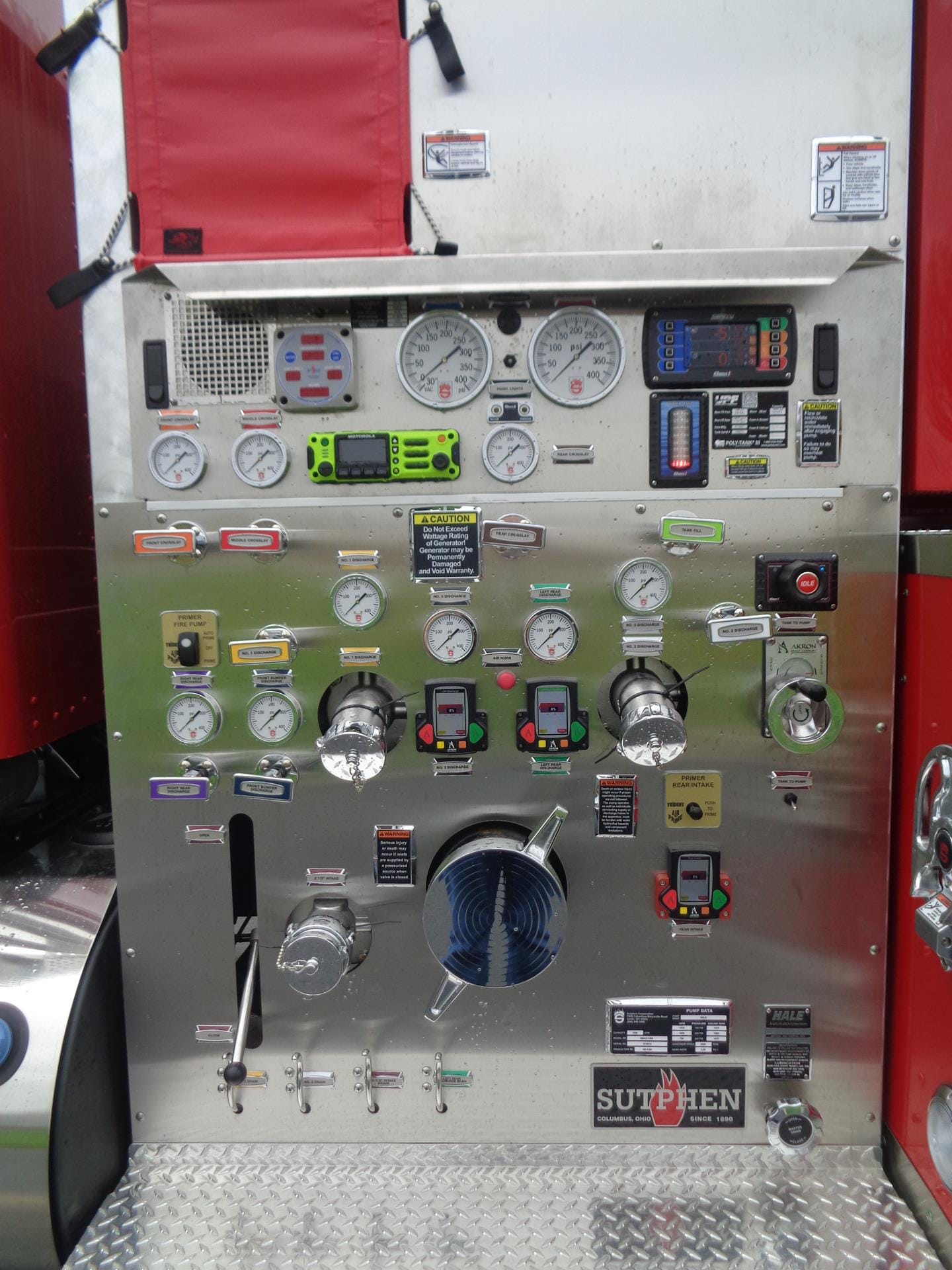

Water Pump
Qmax-1500 single stage
Discharge
(2) 2.5” Left, 4” Right, 2.5” Left Rear, 2.5” Right Rear, 5” Front Bumper, 2” Plumbing
Water Tank
3000 gallon
Total Compartment Space
1 cu. ft.
Two Auto Air
Primers
Water Pump
(2) pump primers, trident, air
Left and Right
Scba storage in rear fender
6 Whelen 900
Scene lights
Construction
Stainless drop visor installed on chassis
Dual Exhaust Installed
On chassis false exhaust due to emissions requirements
Water Pump
2ndtank to pump valve to back of the tank shall be air actuated
Pressure Control (2)
Elkhart 40-20 reliefs pre-set 150
Engine
Pressure governor, class1 sentry governor
5” Right Rear
Inlet 9323 electric controller
Actuator 1 additional
Actuator switch
Actuator, Valve, Electric
Akron 9323
