Delivery Date:
02/18/2020
Department Name:
Wooster Fire Department, OH
Department City / State:
Wooster, OH
Truck Type:
WHEELBASE: 232”
TRAVEL HEIGHT: 9’ – 9 ¾”
TRAVEL LENGTH: 41’ – 10 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab
- Four-Door, Five-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Niehoff, 360 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, 6” Suction Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” left front, (1) 2” Left front, (1) 1 ½” Front Bumper
- Crosslay: (2) 2” w/ 1 ½” Swivel
- 500-Gallon Water Tank
- 20-Gallon Foam Tank
- Smartfoam Supply System w/ Flush
BODY: Sutphen

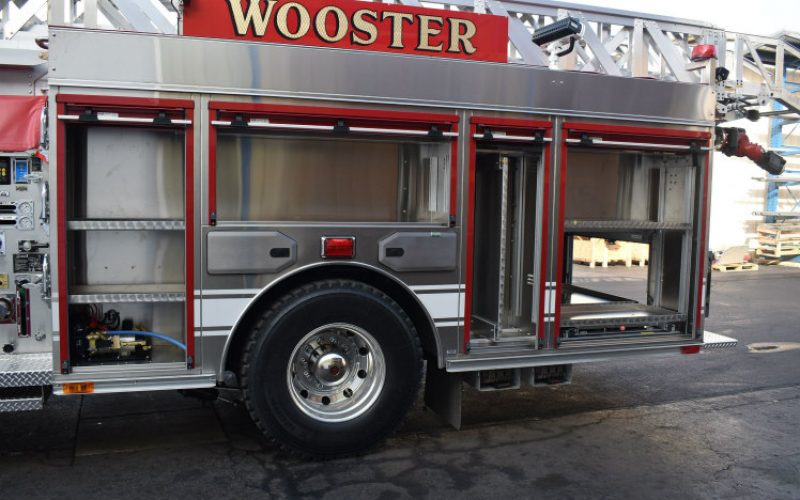

- ROM Roll-Up Compartment Doors
- 75 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Fully Enclosed Ladder Chutes
- Body: G9 – Alum 40/51 Ladders Through Tank
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel
- Rear Vision Camera
- Honda EU2200I Portable Generator
- Akron Revel 12V LED 28K Brow Light
- Whelen Freedom LED Lightbar
- Akron Revel 12V LED 14K Red Warning/Scene Lights
