Delivery Date:
01/01/2018
Department Name:
Winter Haven Fire Department
Department City / State:
Winter Haven, FL

WHEEL BASE: 247”

TRAVEL HEIGHT: 11′-6″±2″

TRAVEL LENGTH: 47′-6″

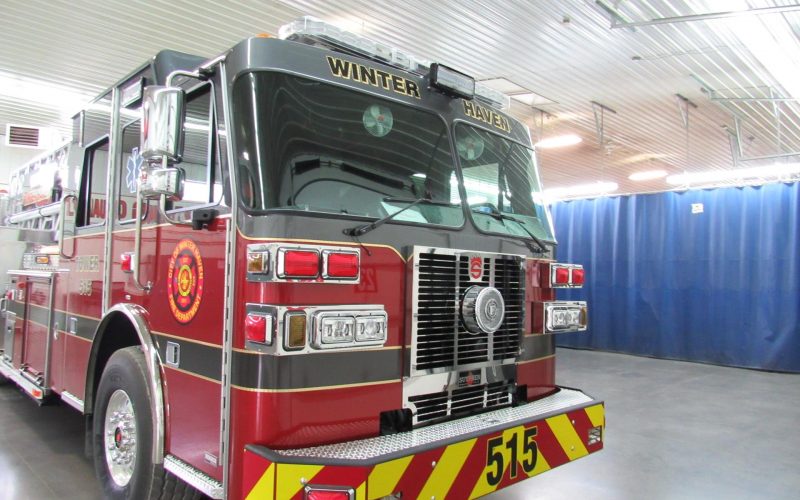

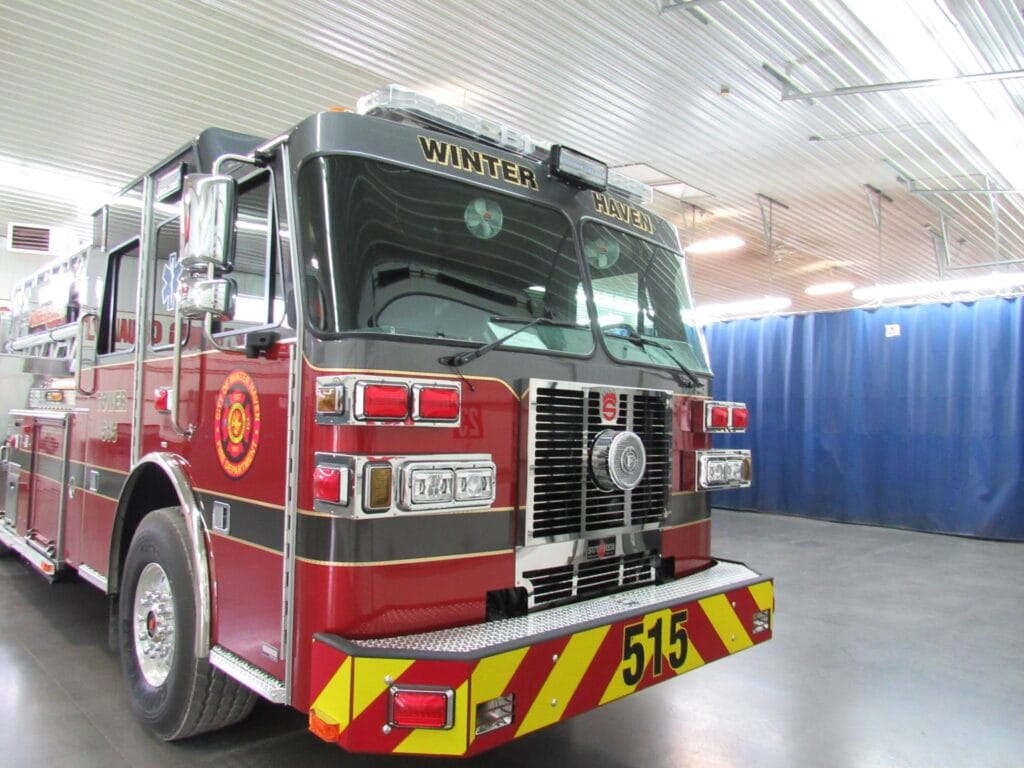

CHASSIS:              Sutphen 73” cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 23,000 lbs.
  • Rear Axle and Suspension: 52,000 lbs.
  • Engine: Cummins ISX 12 500HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

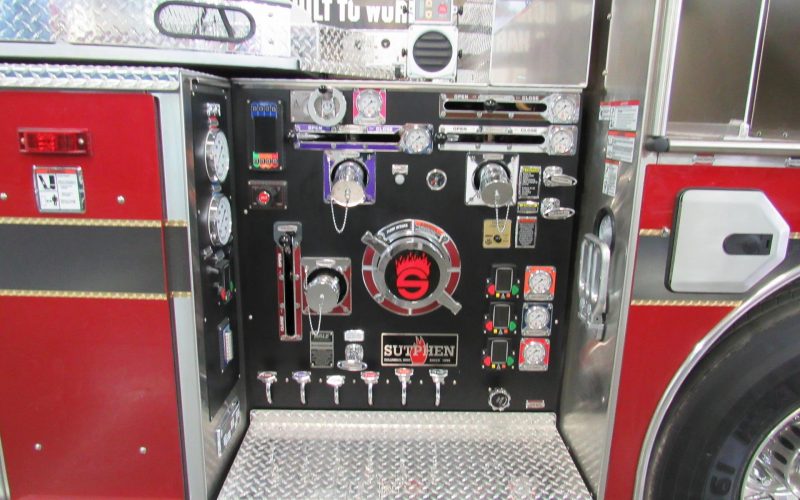

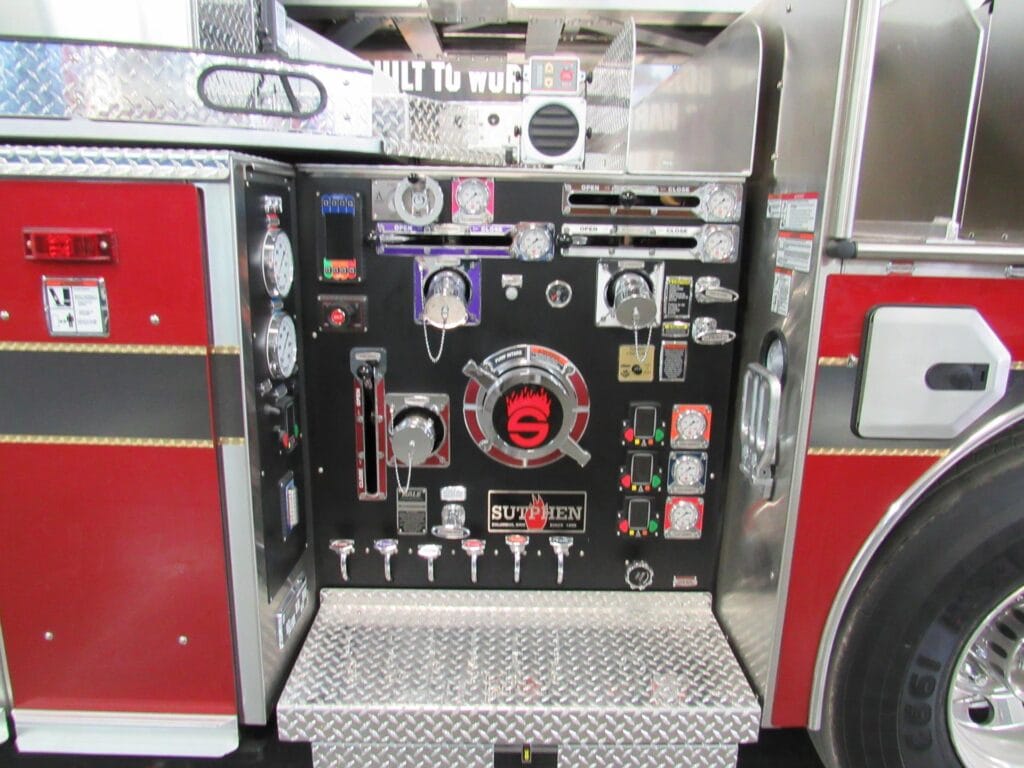

PUMP:                  Hale

  • 2000 GPM Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right,
  • 300 Gallon Water Tank

BODY:                   Sutphen

  • Aluminum

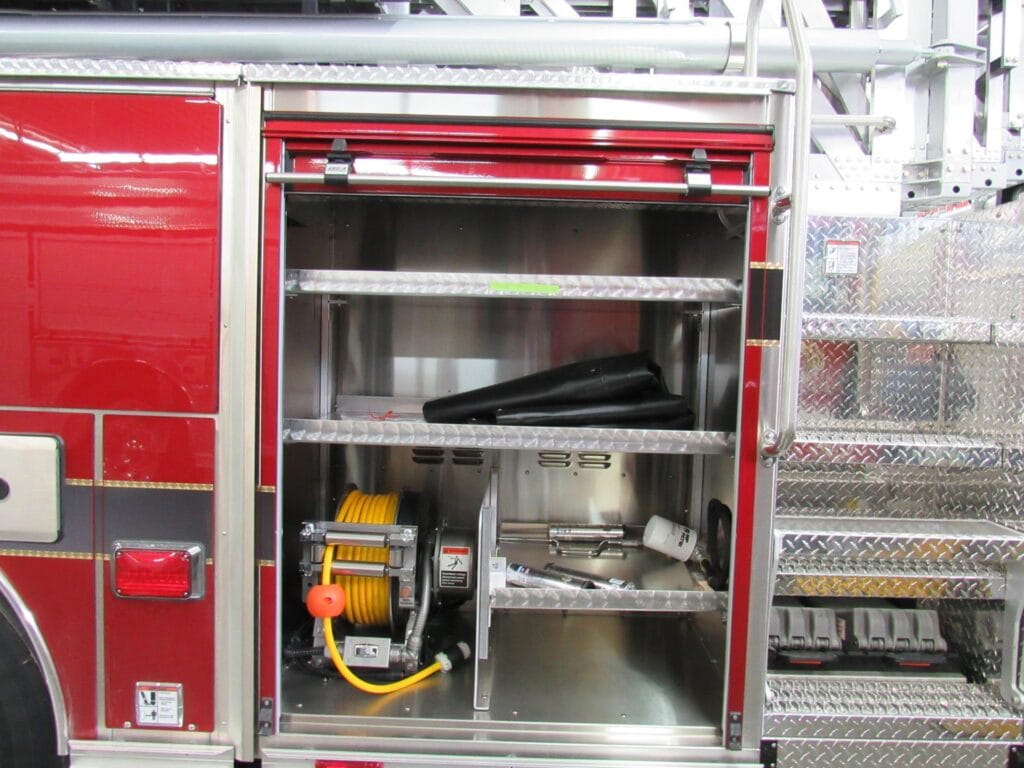

  • 293 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Federal Q2B
  • Harrison, 10KW HYD
  • Valve Under Monitor, Manual Valve, Auto Drain, Crank Handle on Port
  • Black Bullet Liner Top Edge of Bumper
  • Whelen Howler to Electronic Siren
  • 3-Way Scene Light Switch for Officer’s Side
  • Fan, 12 Volt, Crew Seat Area
  • Class 1 Sentry Pressure Governor
  • Pump Panel Finish Black Powder Coated
  • Run 12V Power to R1 Compartment
  • 1000# Slide-Master Tray with Tool Board in Hose Bed Compartment
