Delivery Date:
12/01/2017
Department Name:
Winston Salem Fire Department
Department City / State:
Winston-Salem, NC

WHEEL BASE: 199″

TRAVEL HEIGHT: 9′-5″

TRAVEL LENGTH: 33′-6″

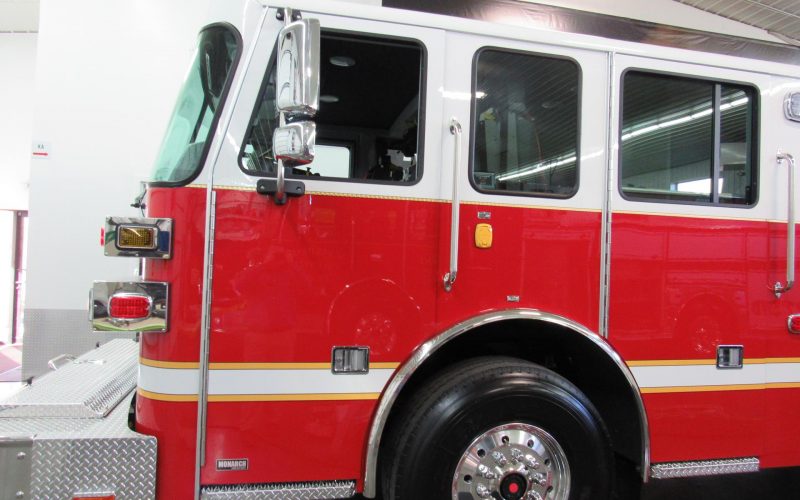

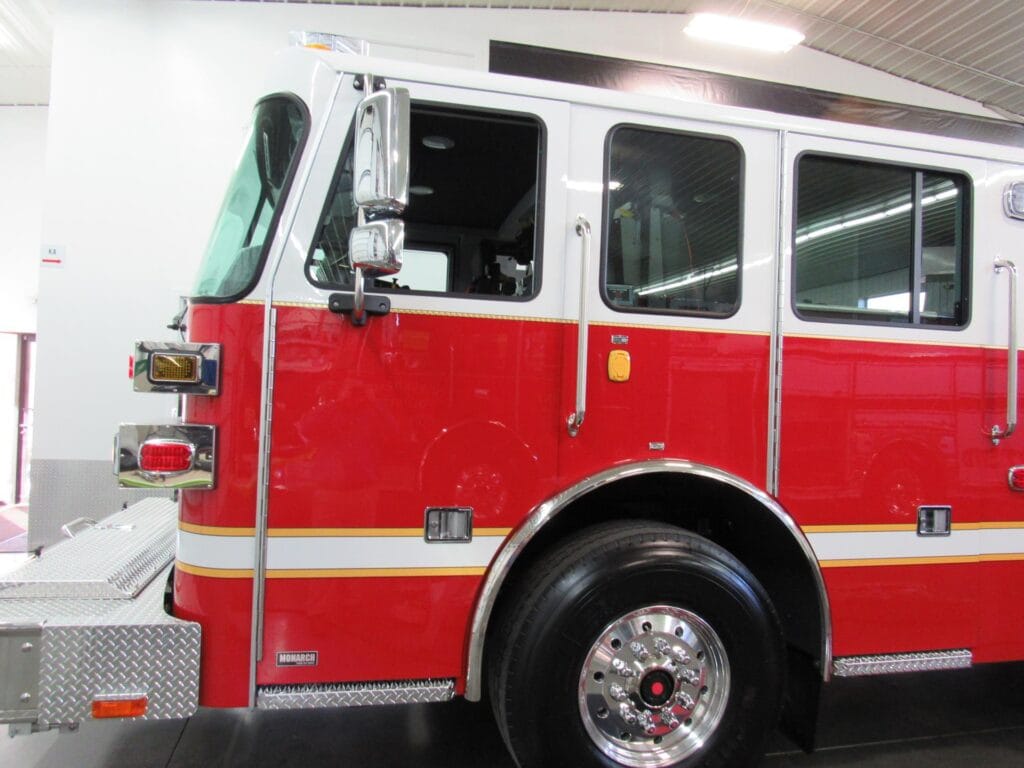

CHASSIS:              Sutphen 73” extended cab flat

  • Four-Door, Five-Person Cab
  • Front Axle and Suspension: 23,000 Lb.
  • Rear Axle and Suspension: 24,000 Lb.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

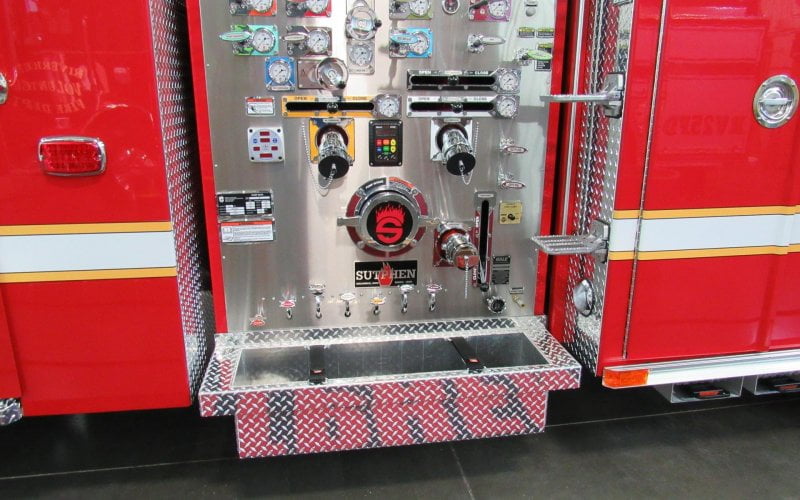

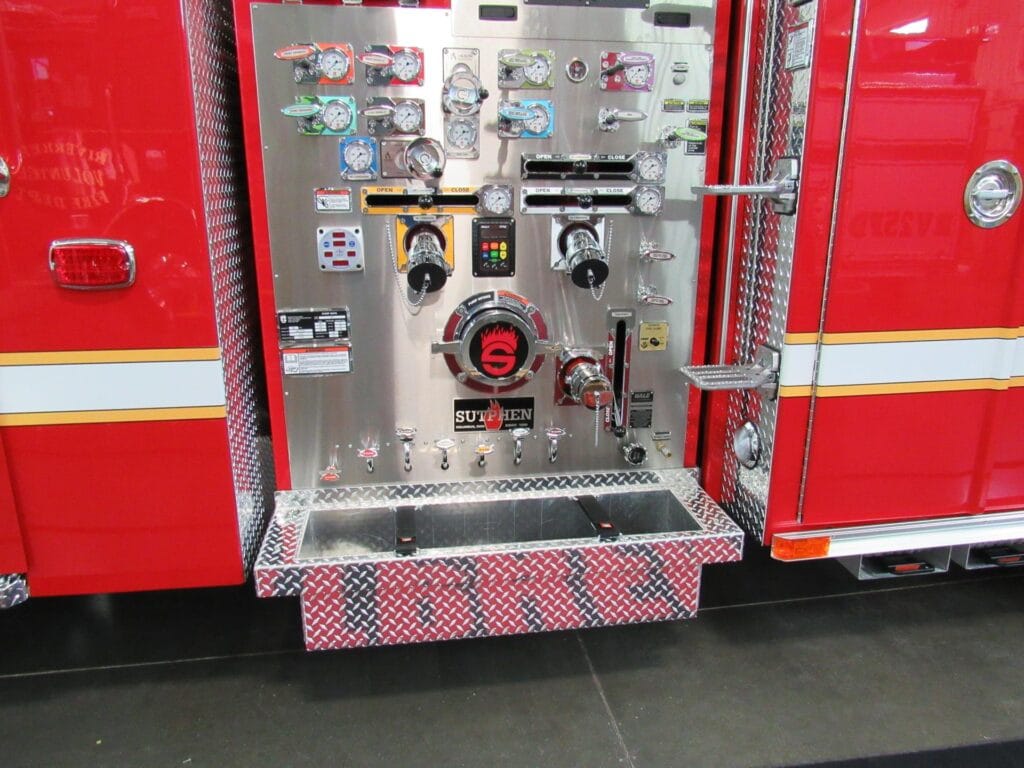

PUMP:                  Hale

  • QMAX-1500 GPM 6″ Suction single stage pump
  • Discharge: (2) 2.5″ Left, 3″ Right, 2.5″ Right, 2″ Right/Front Hosebed W/1.5”swivel, 2.5″ valve, 2.5″ pipe to left rear, 2.5″ valve, 2.5″ Pipe Right Rear, 5″ Front Bumper, 2″ Plumbing, 3″ Deck Gun
  • 650 Gallon Water Tank

BODY:

  • Aluminum
  • 234 cu. ft. Total Compartment Space

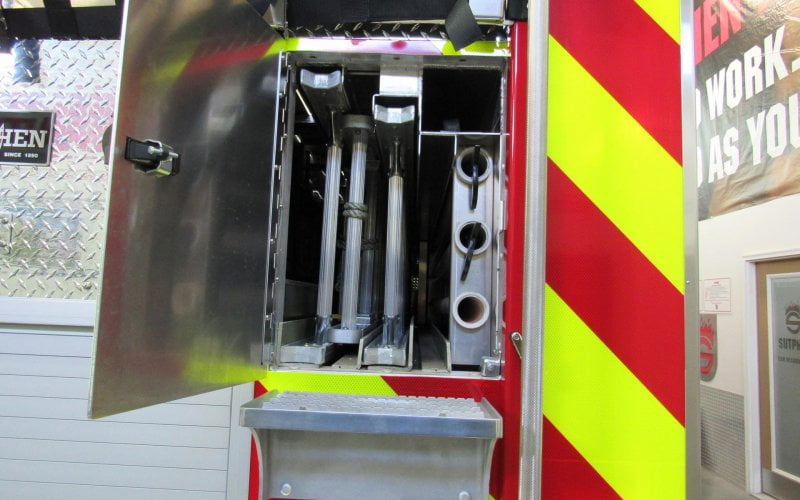

  • Alco-Lite PEL-24

OPTIONAL EQUIPMENT:

  • Scene Lights, Whelen
  • Federal Q2B
  • Smart Power Generator 10kw

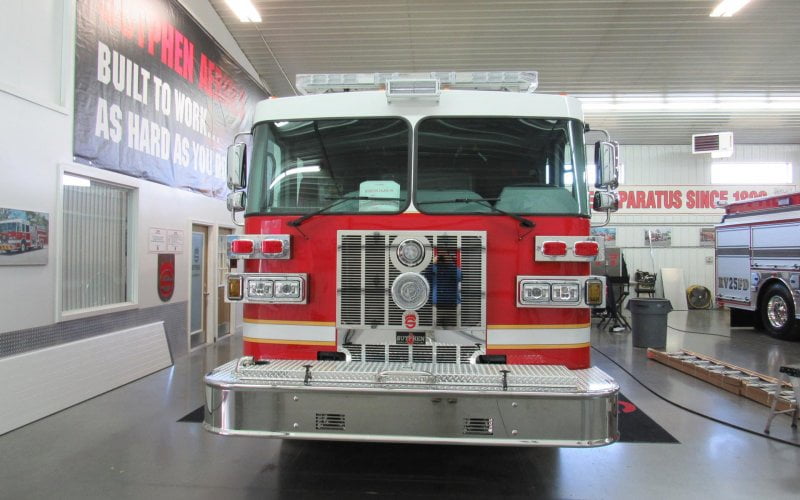

  • 24” Bumper Extension
  • Safety Vision Camera System
  • Ziamatic Sac-44 Folding Wheel Chocks
