Delivery Date:
05/01/2018
Department Name:
Winooski Fire Department
Department City / State:
Winooski, VT

WHEEL BASE: 220”

TRAVEL HEIGHT: 117.5”

TRAVEL LENGTH: 406”

CHASSIS:              Sutphen 73” Cab with 10” half raised roof

  • Four-Door, Eight-Person Cab
  • Front Axle and Suspension: 20,000 Lbs.
  • Rear Axle and Suspension: 27,000 Lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen IV

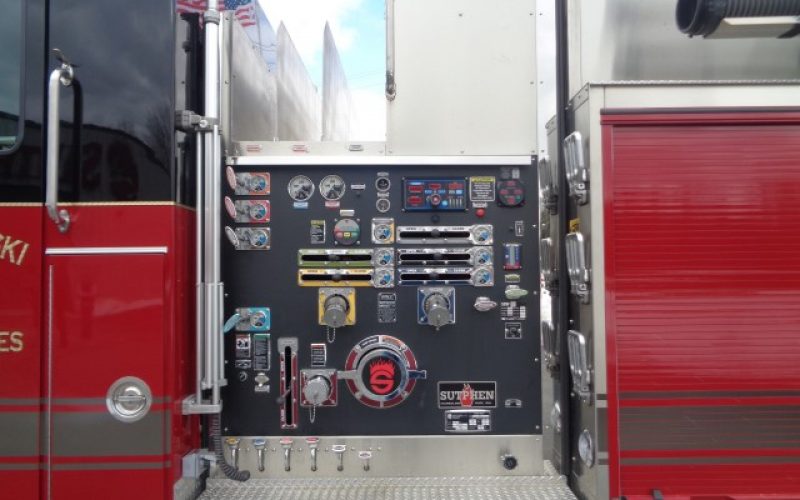

PUMP:                  Hale

  • QMAX-1500 6” Suction Single Stage
  • Discharge: (2) 2.5” Left, 4” Elkhart Electric Valve, 2.5” Right Side, 3” Valve, 3” Pipe to Left Rear, 3” Deluge Riser, 2.5” Front Bumper
  • 1000 Gallon Water Tank
  • 30 Gallon Foam Tank

OPTIONAL EQUIPMENT:

  • Task Force Tips Extend-A-Gun
  • Ziamatic SAC-44 Folding Wheel Chock Mounted
  • Whelen LED 500 Lights in Each Interior Cab Doors
  • Whelen 400 Series LED Front Turn Signals
