WHEEL BASE: 176”
TRAVEL HEIGHT: 9’-8”
TRAVEL LENGTH: 31’
CHASSIS: Sutphen 62” cab with half 10” raised roof
- Four-Door, Six-Person Cab
- Front Axle and Suspension 18,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins ISL 9, 450 HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Left Rear, (1) 3” Deck Gun
- 20-Gallon Foam Tank
- 750-Gallon Water Tank
BODY: Sutphen
- Aluminum
- Hinged Compt. Doors
- Alco-Lite PEL-24

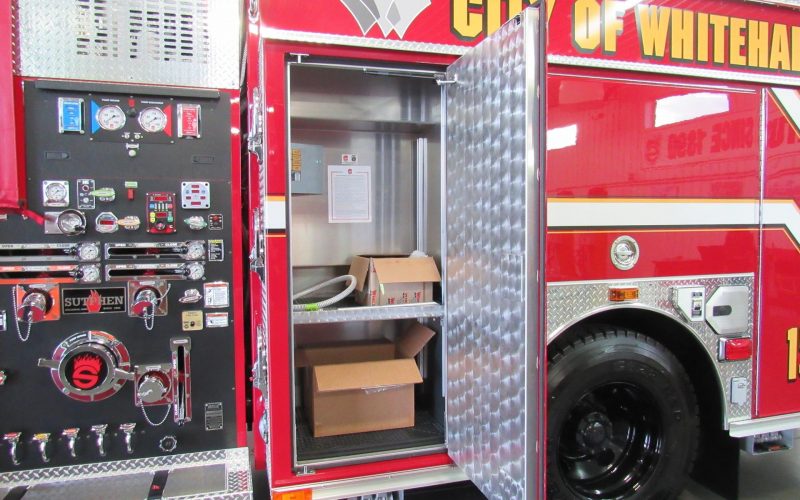

- 7 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- 6KW Smart Power Generator
- Hannay Electric Cord Reel, 200’
- Camera System, Safety Vision SV-CLCD0-70
- 24” Bumper
- Federal Q2B
- Roto-Ray Warning Light
