Delivery Date:
08/10/2021
Department Name:
Vernon Township Fire Department
Department City / State:
Vernon Township, NJ

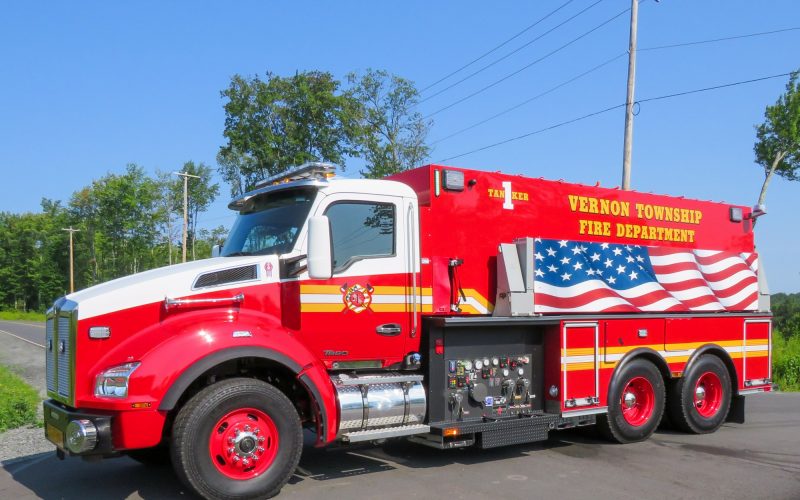

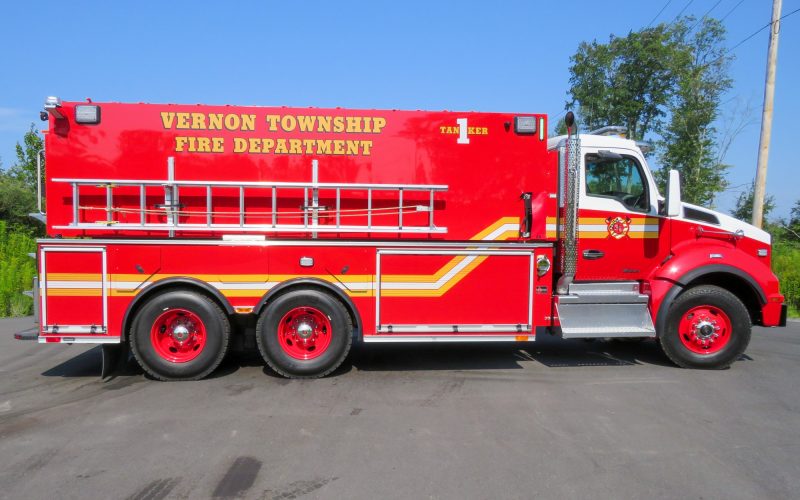

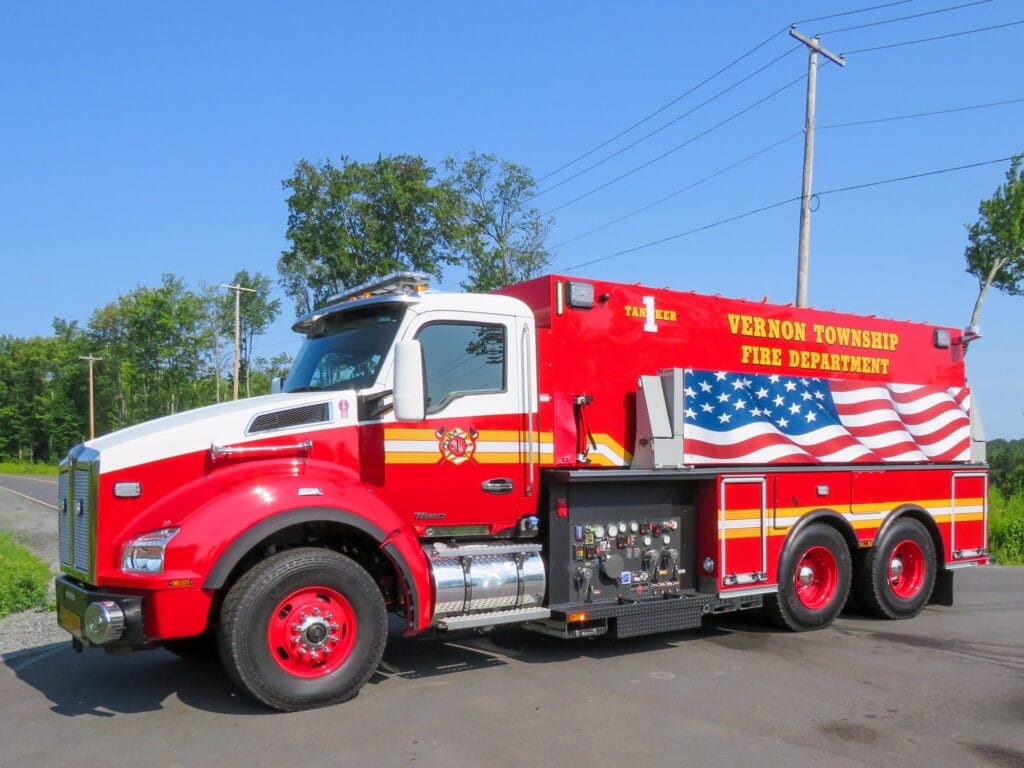

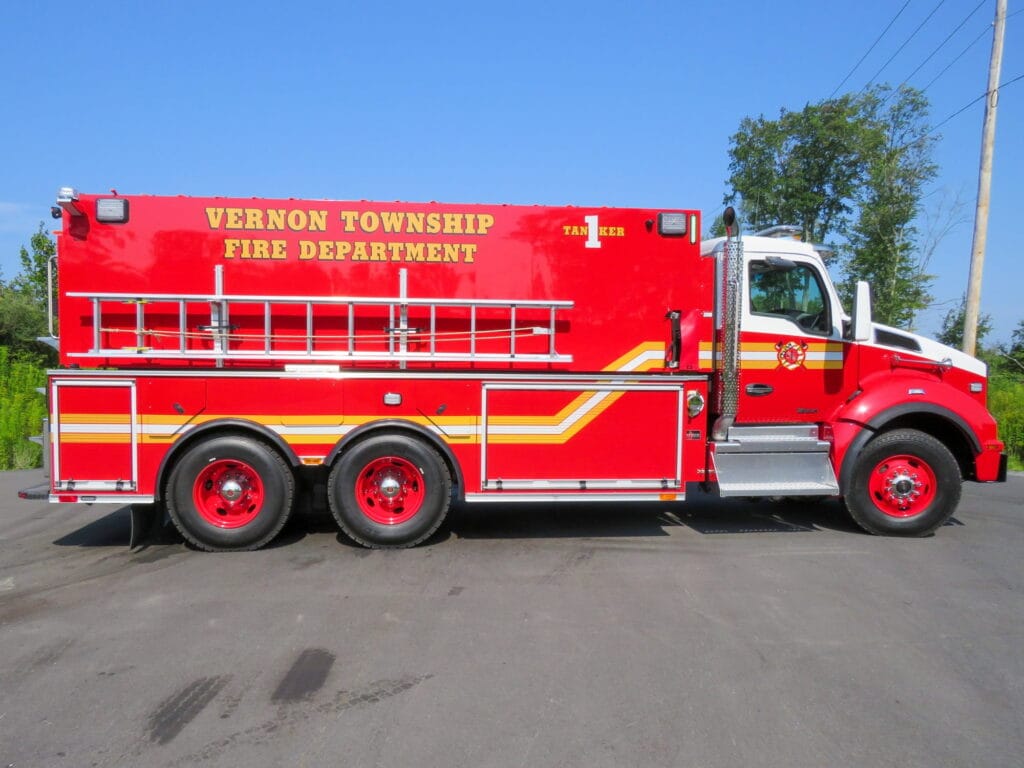

Sutphen Corporation – HS #6888

Dealer – Signal 1 Fire Equipment

WHEELBASE: 220”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 30’ – 11 ¼”

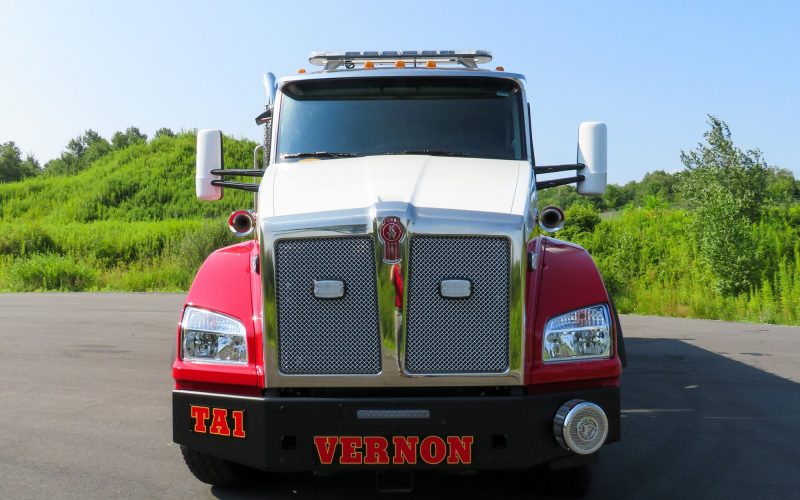

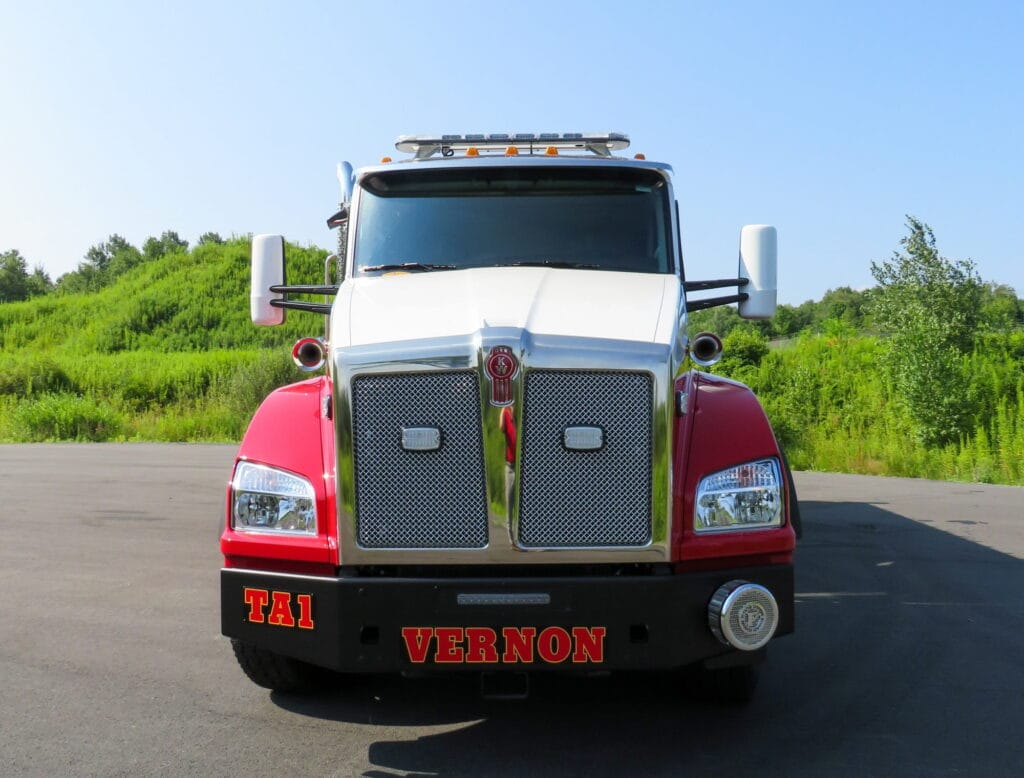

CHASSIS:             Kenworth T880 – 2DR

  • Two-Door, Two-Person Cab
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins ISX 15, 605 HP
  • Alternator: 320 AMP
  • Transmission: EVS 4500

PUMP:                 Hale

  • Side Kick DSD, 1250 GPM, PTO
  • Discharges: (2) 2 ½” Left, (1) 2 ½” Left Rear, (1) 4” Officers Side
  • Speedlay: (1) 1 1 ½” in Tank
  • 3,500-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolted Stainless Steel
  • Amdor Roll-Up Compartment Doors
  • 6 cu. ft. Total Compartment Space
  • Body: SWT-05C Stainless Steel Wetside Tanker Tandem

ADDITIONAL EQUIPMENT:

  • Federal Q2B Siren, Front Bumper Mount
  • Camera System: Brigade, Three Camera

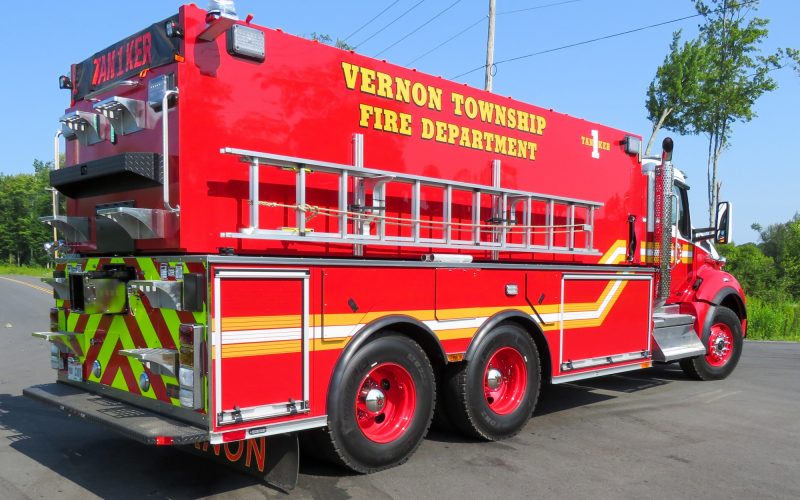

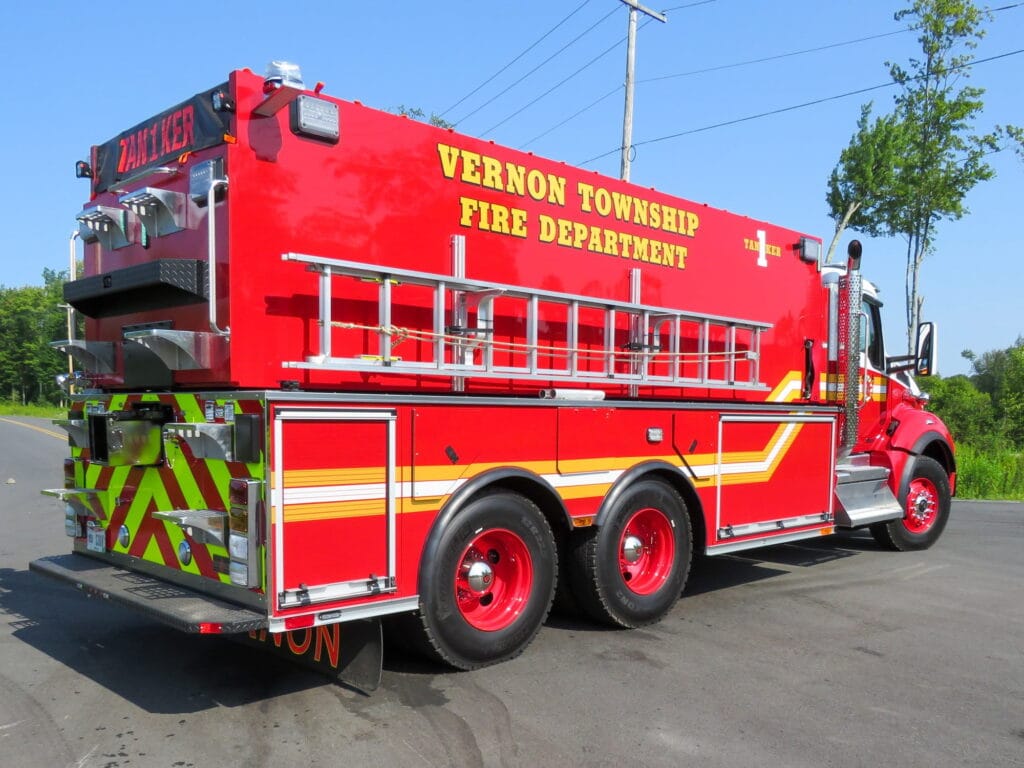

  • Newton 10” Kwik Dump Electric, STS, Left, Right and Rear
  • Portable Tank, 3500 Gallon, Hypalon
  • Whelen 60” Justice Lightbar
  • Whelen 900 Scene Lights (6)
  • Whelen M6 Warning Lights (8)
  • Firetech Work Lights
