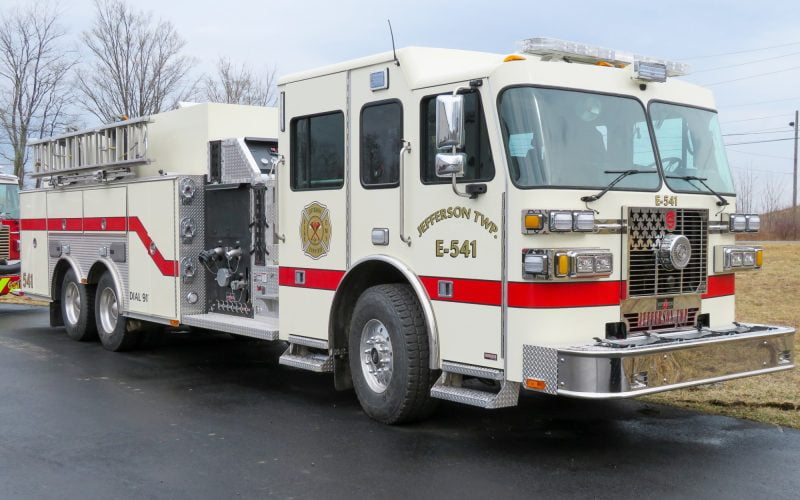

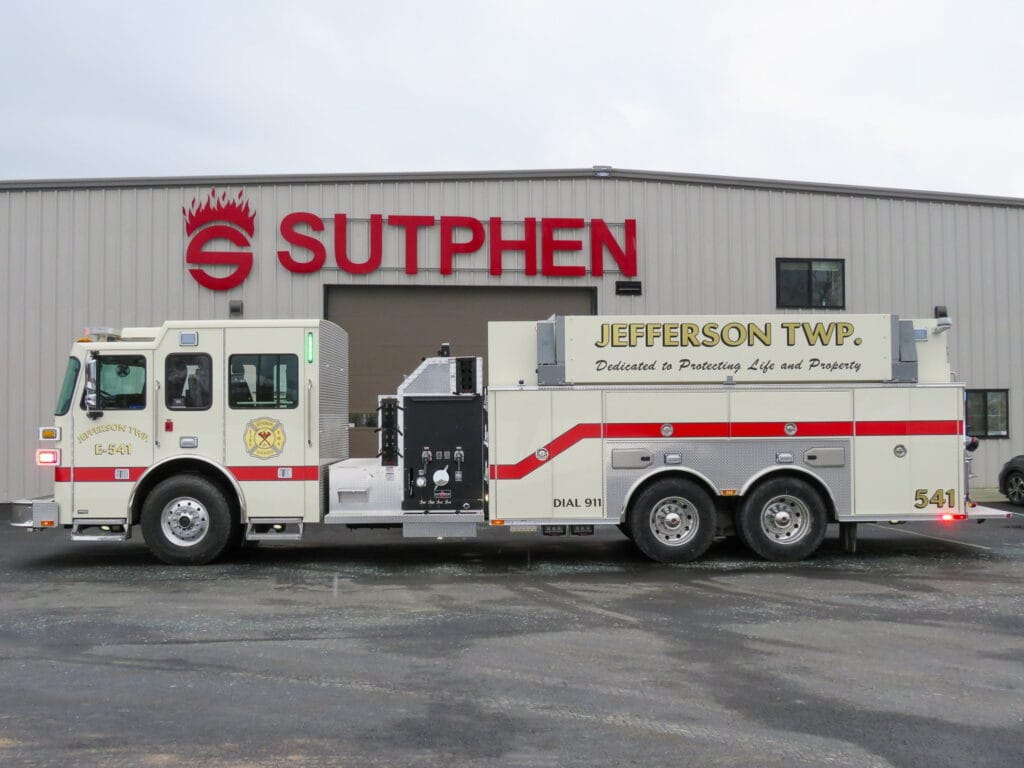

Delivery Date:
02/16/2023
Department Name:
Jefferson Township Volunteer Fire Department
Department City / State:
Jeffersonville, OH
Truck Type:
Sutphen Corporation – HS #7191
Dealer – Heritage Fire Equipment
WHEELBASE: 254”
TRAVEL HEIGHT: 10’ – 3”
TRAVEL LENGTH: 39′ – 11”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension: 23,000 lbs.
- Rear Axle and Suspension: 48,000 lbs.
- Engine: Cummins X 12, 455HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-1750 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” w/ 1 ½” Swivel, 2 ½” Crosslay
- 3,000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors
- 175 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
- Body: SWT-04A Aluminum Wet Side Tanker Tandem, Pump Module
ADDITIONAL EQUIPMENT:
- 18” Polished Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview 360HD w/ Built-In DVR
- Zico Electric Porta Tank Rack
- Zico Electric Ladder Rack
- Newton 10×10 Electrci Swivel Dump
- Whelen 72” Freedom Lightbar
- FRC Spectra Brow Light
- FRC Spectra 900 Scene Lights
