WHEEL BASE: 196”
TRAVEL HEIGHT: 9′-11″
TRAVEL LENGTH: 32′-9″
CHASSIS: Sutphen cab 73″ with 15” half raised roof
- Four-Door, Six Person Cab
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins ISL 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5

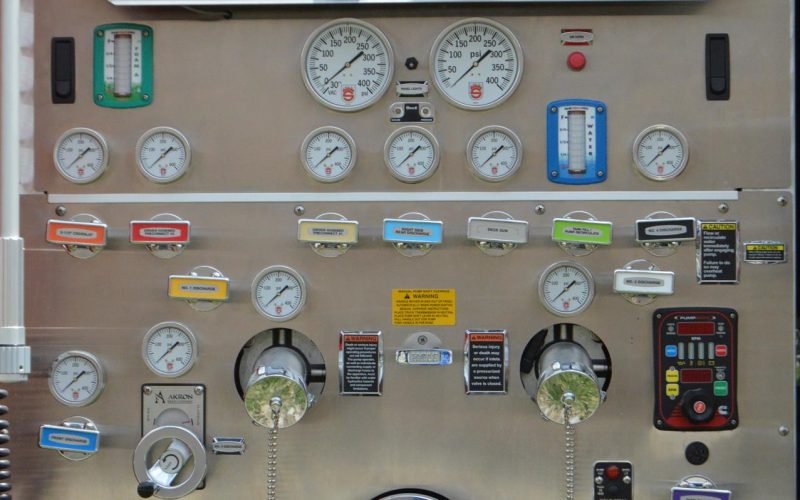

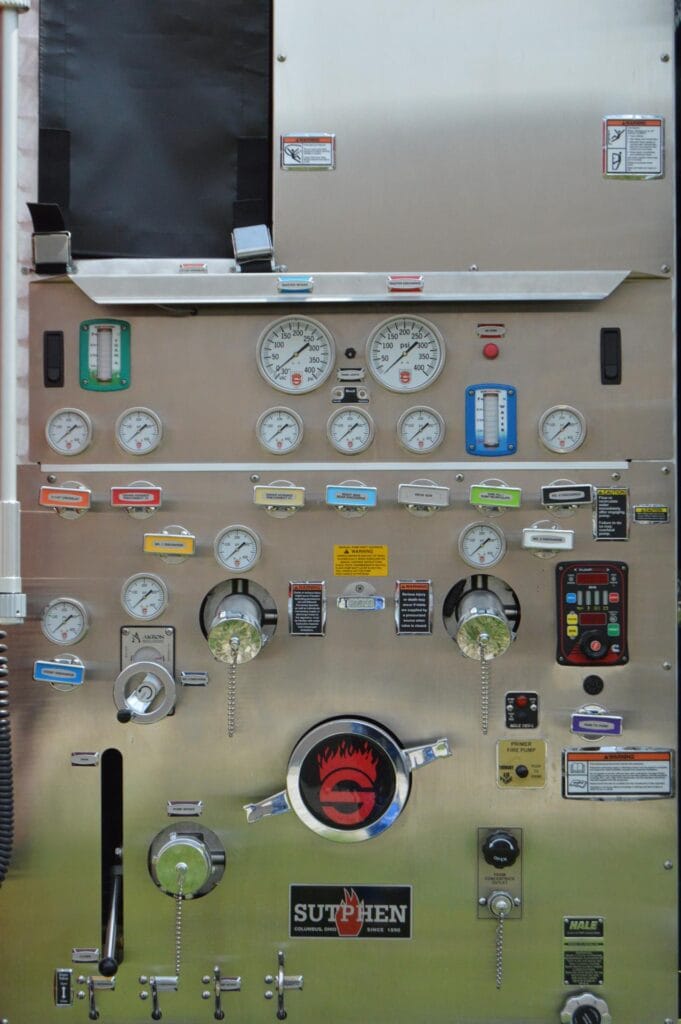

PUMP: Hale
- QMAX-1500 GPM Single Stage
- Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Right Rear, 1.5” Front Bumper, 2” Plumbing, 3” Deck Gun
- 750 Gallon Water Tank
BODY: Sutphen
- Aluminum
- 314 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Exterior Compartments on the side of Exterior Cab (Clean Cab Concept)
- Divider in trough
- Manual Pump Shift Override
- Intake Pressure Control FRC PUMP BOSS
- Upgrade Handwheel to 3” Discharge
- G-9 Body with Coffins
