WHEEL BASE: 221”
TRAVEL HEIGHT: 10′-9 1/4″
TRAVEL LENGTH: 43′-5 3/4″

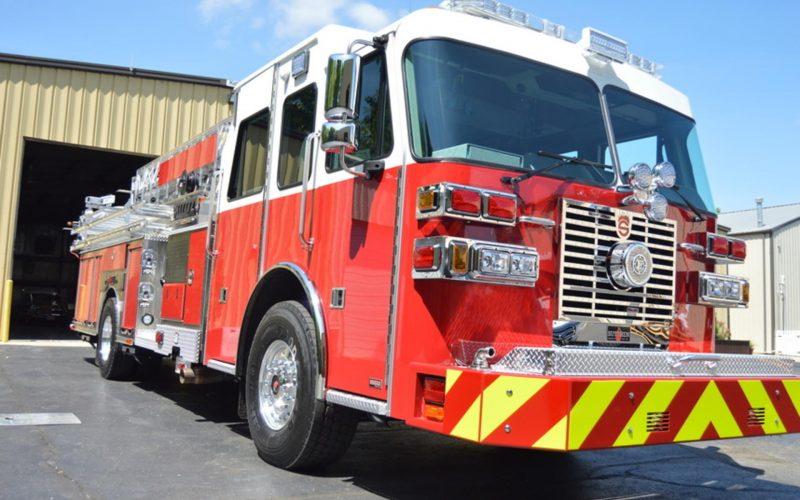

CHASSIS: Sutphen 62” Cab with 10” half raised roof
- Four-Door, Five-Person Cab
- Front Axle and Suspension: 23,000 Lbs.
- Rear Axle and Suspension: 31,000 Lbs.
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5

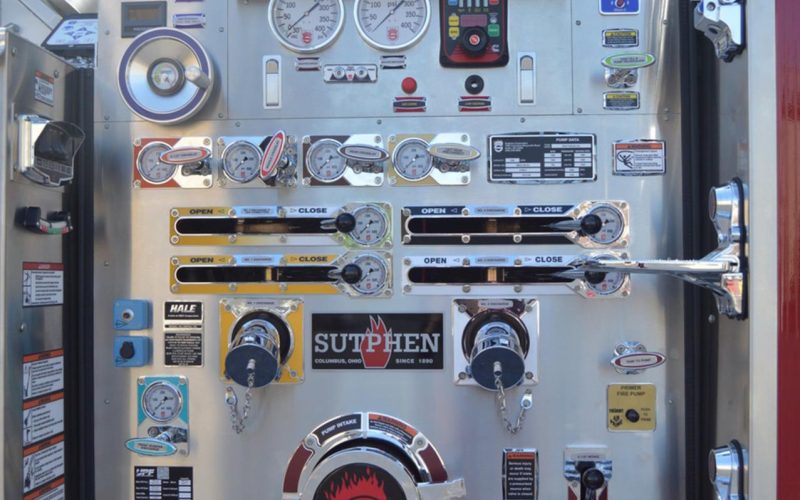

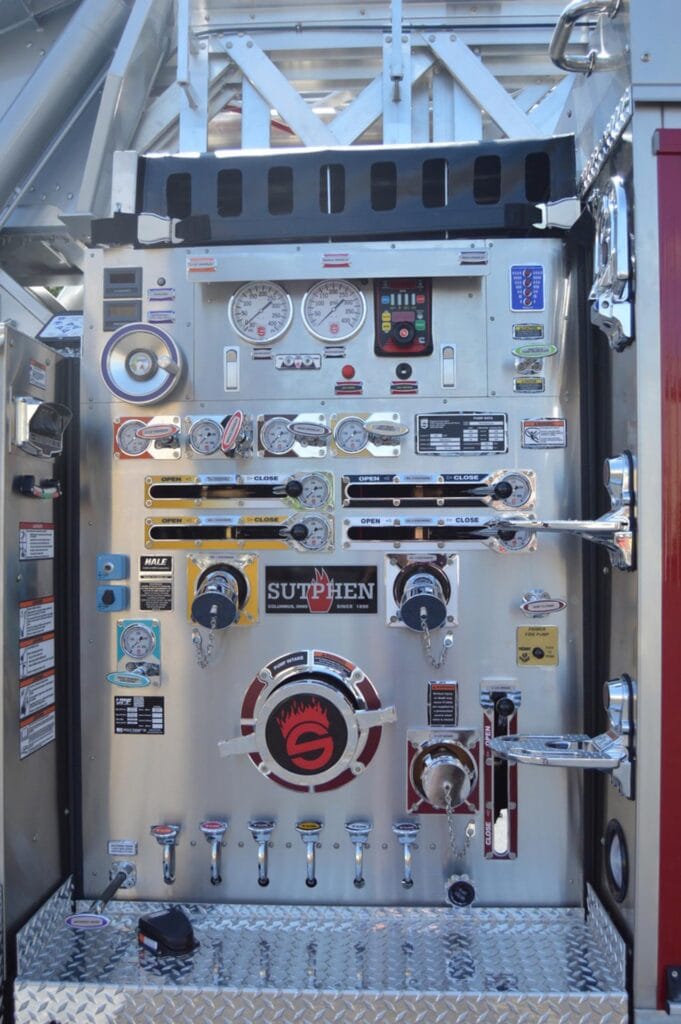

PUMP: Hale
- QMAX-1500 6” Suction Single Stage
- Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Upper Left Side Body, 1.5” Front Bumper, 2” Plumbing
BODY: Sutphen
- 75 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Back and Side Walls on Tray
- Folding Ladder and Pike Pole Tubes in High Side Hosebed
- Stokes Storage Above Ladders
- Cab Scene Lights To Activate w/Cab Door Opening
- Outrigger Camera
- Deflector Shield Below Bucket
