Delivery Date:
12/01/2018
Department Name:
Utica Fire Department
Department City / State:
Utica, NY

WHEEL BASE: 200″

TRAVLE HEIGHT: 8′ 8″

TRAVEL LENGTH: 31′ 7.25″

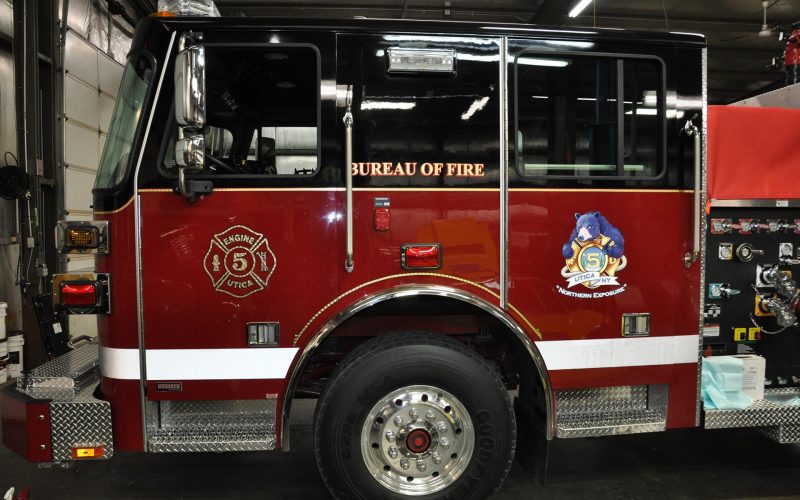

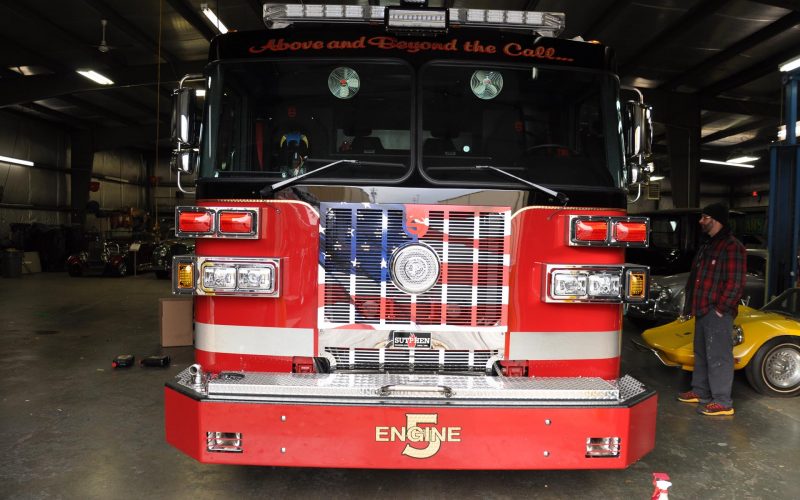

CHASSIS:              Sutphen 62” cab with flat roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension: 20,000 Lbs.
  • Rear Axle and Suspension: 24,000 Lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

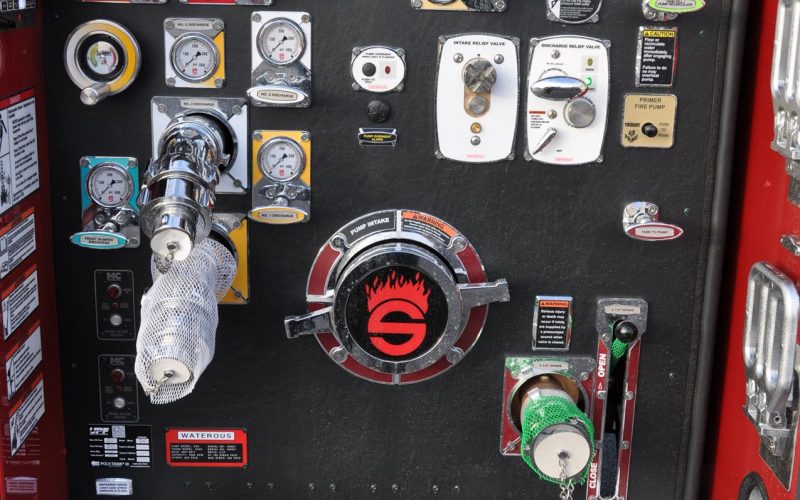

PUMP:

  • Waterous Pump CSU-1500 GPM Single Stage
  • Discharge: (2) 2.5″ Left, 3″ Right, 2.5″ Valve, 2.5″ Pipe to Left Rear, 1.5″ Front Bumper, 2″ Plumbing, Deck Gun Discharge 3″
  • 750 Gallon Water Tank

BODY:                   Sutphen

  • 197 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Federal Q2B
  • Hannay ECR-1614-17-18 Reel W/150’ 10/3
  • Camera System, Intec, Single Camera
  • Special generator 3000 watt Honda Generator fastened to slide out tray on L3 Floor.
  • Ziamatic SAC-44 Folding Wheel Chocks MTD w/SQCH-44H Holders (Pair)
  • Monitor, TFT Hurricane, Manual 1250 GPM
