WHEEL BASE: 221”
TRAVLE HEIGHT: 8’ 8”
TRAVEL LENGTH: 40′-4.75″

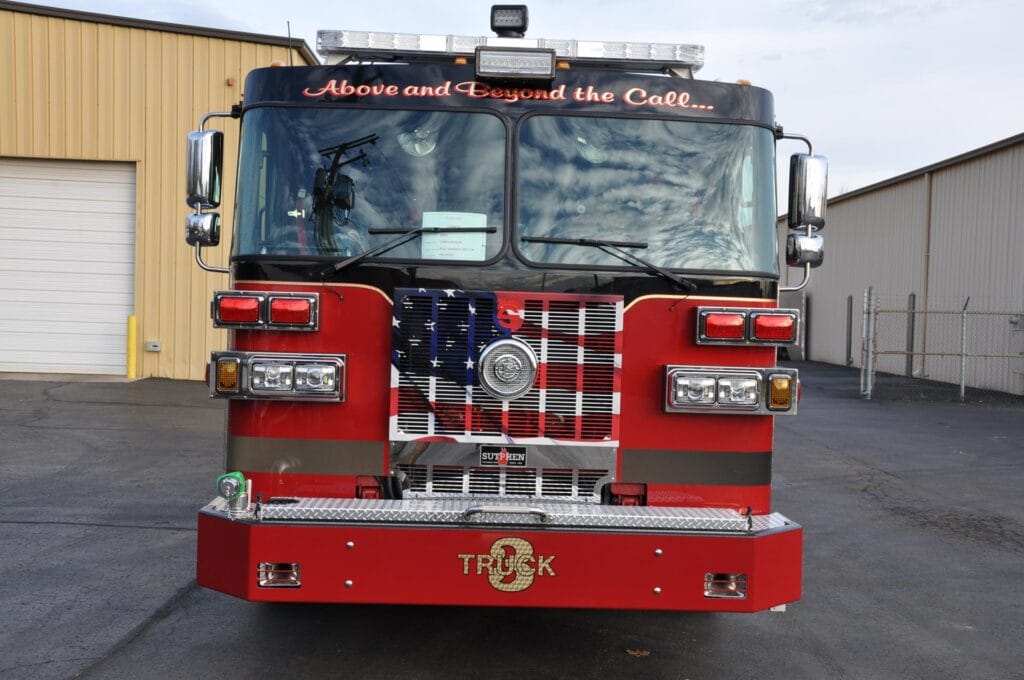

CHASSIS: Sutphen 62” extended flat cab
- Four-Door, Five-Person Cab
- Front Axle and Suspension: 23,000 Lbs.
- Rear Axle and Suspension: 31,000 Lbs.
- Engine: Cummins ISL 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000

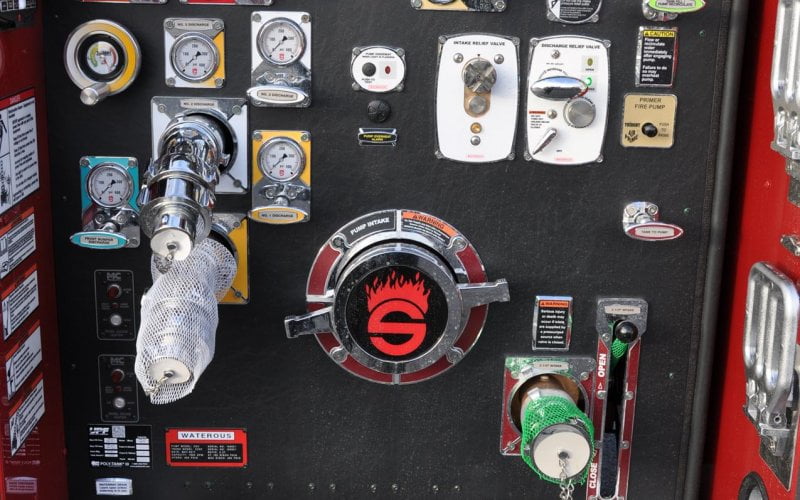

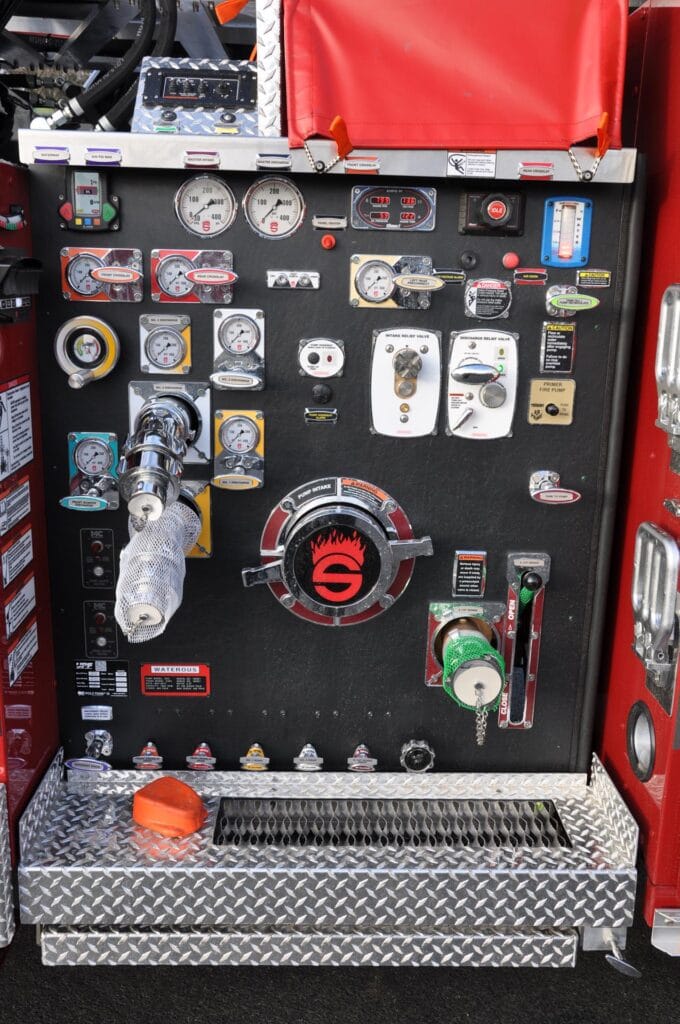

PUMP:
- Waterous Pump CSU-1500 GPM Single Stage
- Discharge: (2) 2.5″ Left, 3″ Right, 2.5″ Upper Left Side Body, 2.5″ Front Bumper,
- 500 Gallon Water Tank

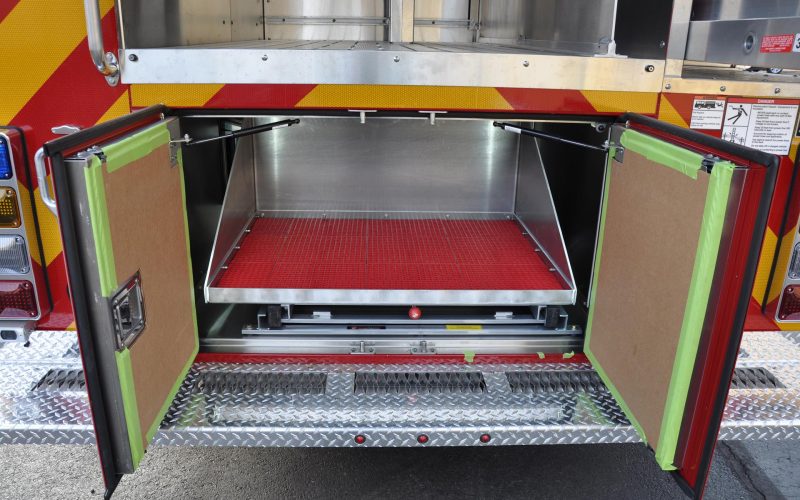

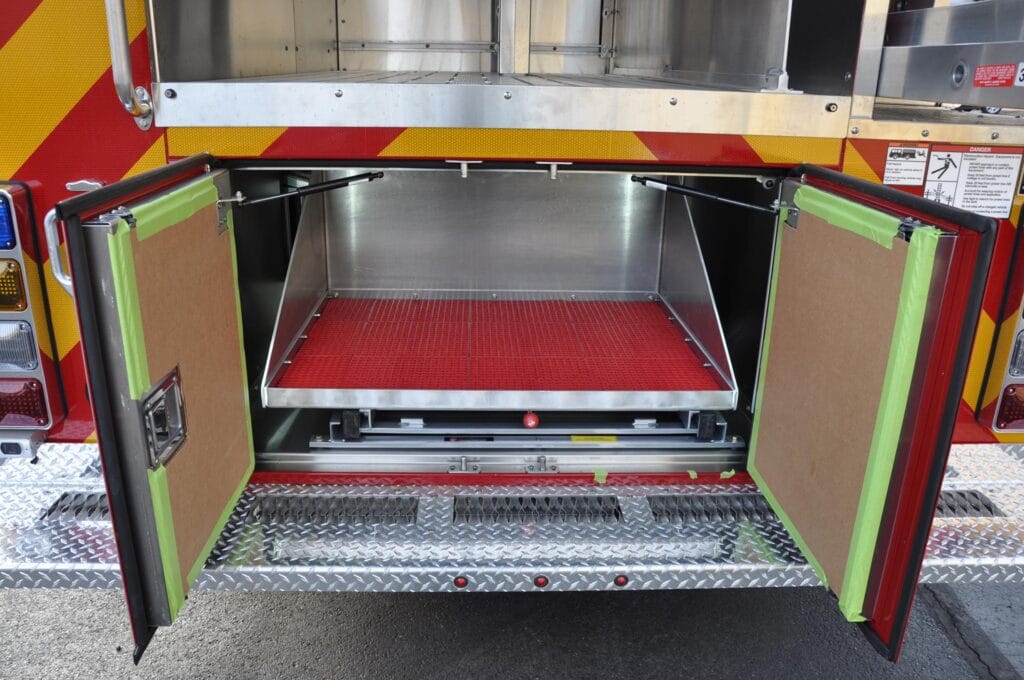

BODY: Sutphen
- 01 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Federal Q2B
- Hannay ECR-1616-17-18 Reel W/200’ 10/3
- Camera System, Intec, Single Camera

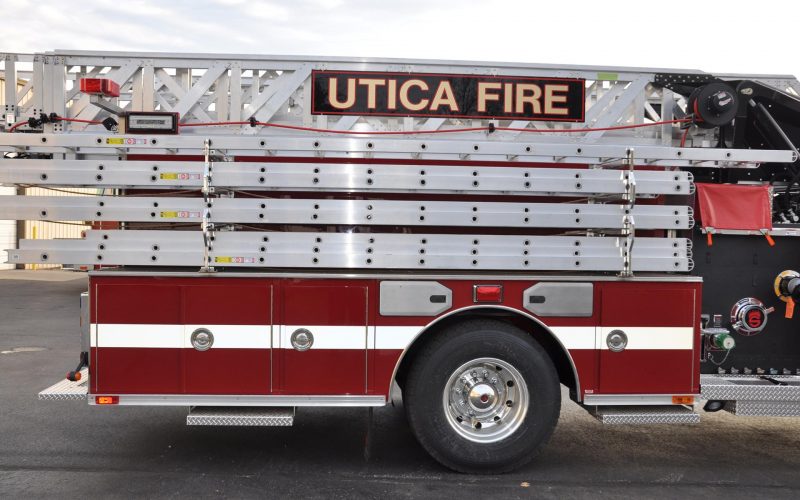

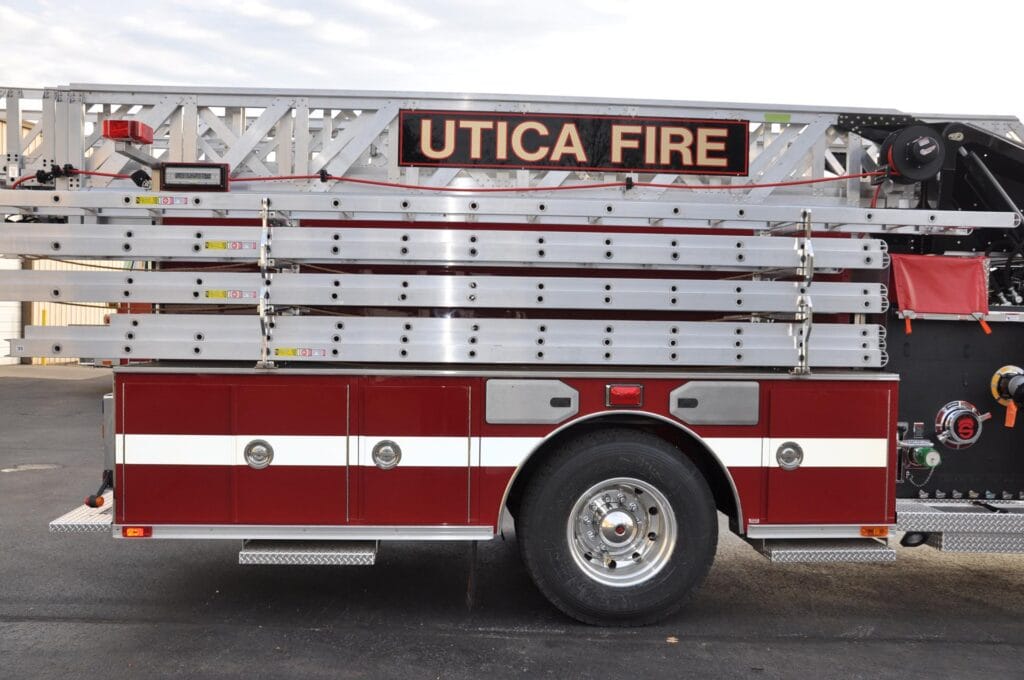

- Ladders, Duo-Safety, 16’ Roof, 20’ Roof, 28’-2sec, 28’-2sec, 35’-3sec & 10’F
- Intercom System, FRC ACT 2-Station
- Generator, Harrison, 10KW
