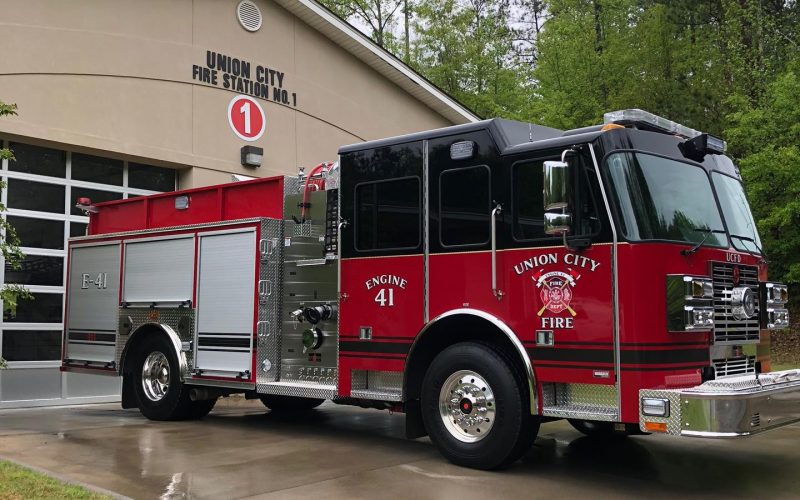

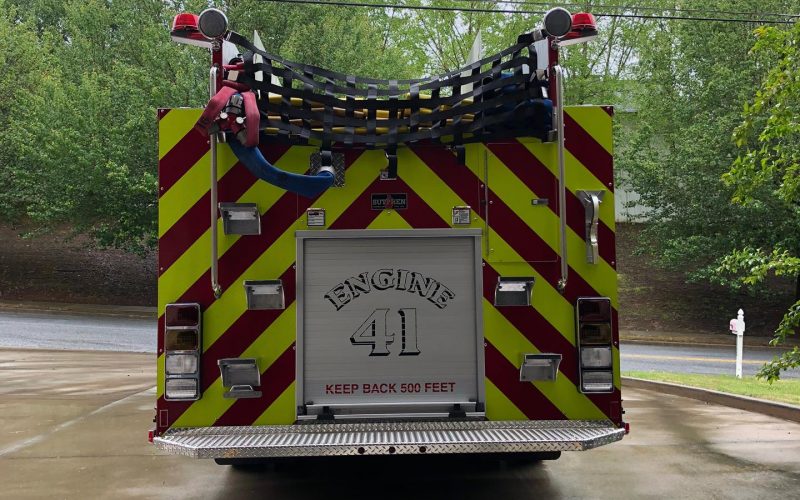

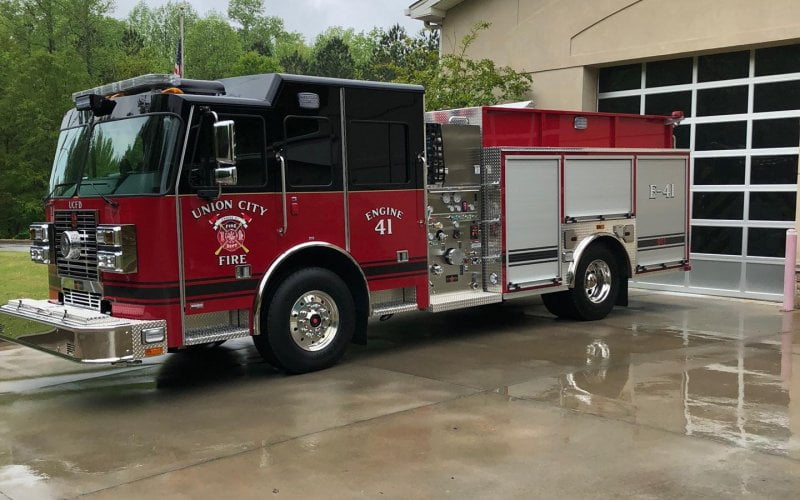

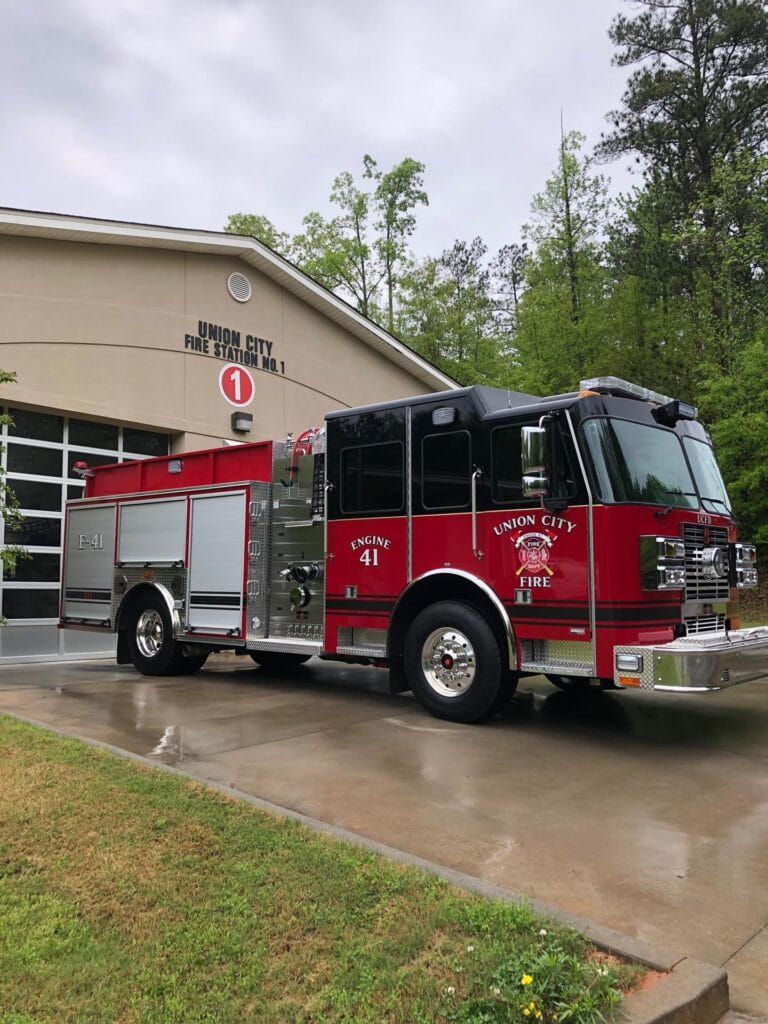

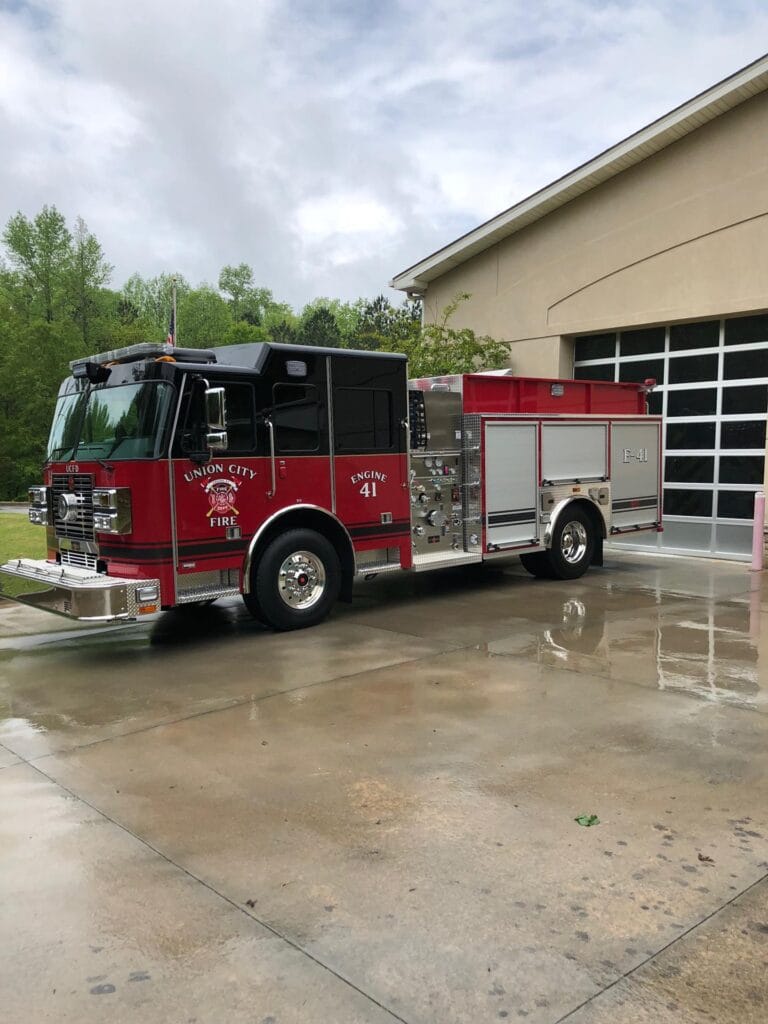

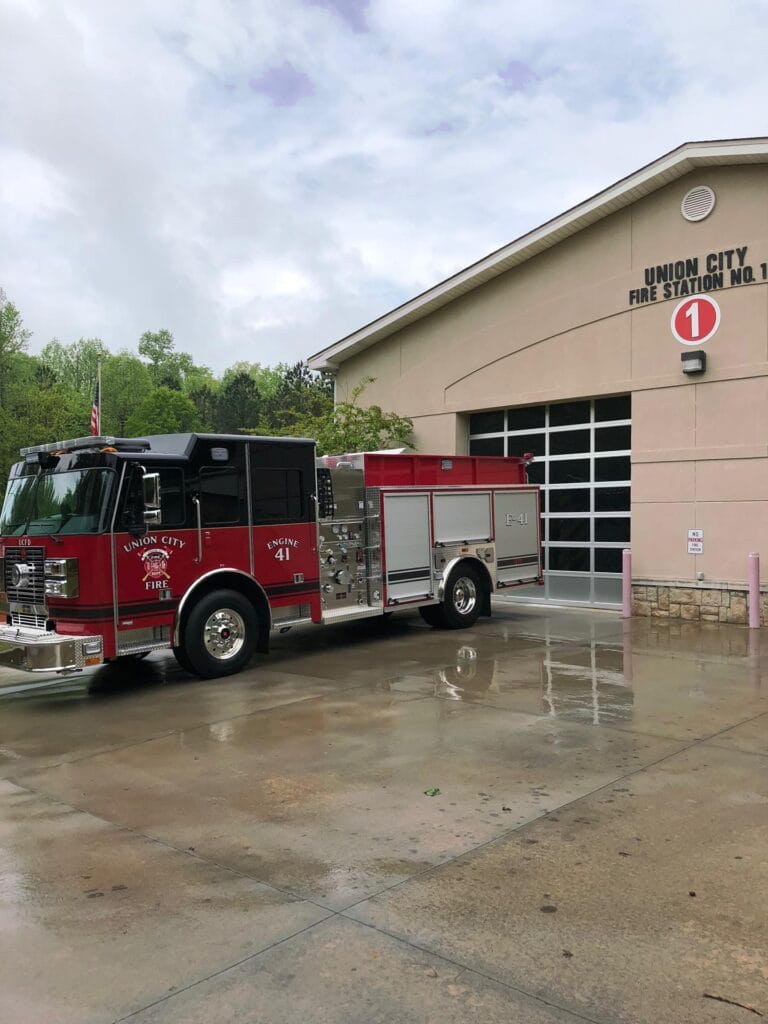

Delivery Date:
03/01/2018
Department Name:
Union City Fire Department
Department City / State:
Union City, GA

WHEEL BASE: 185”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 31′-4″

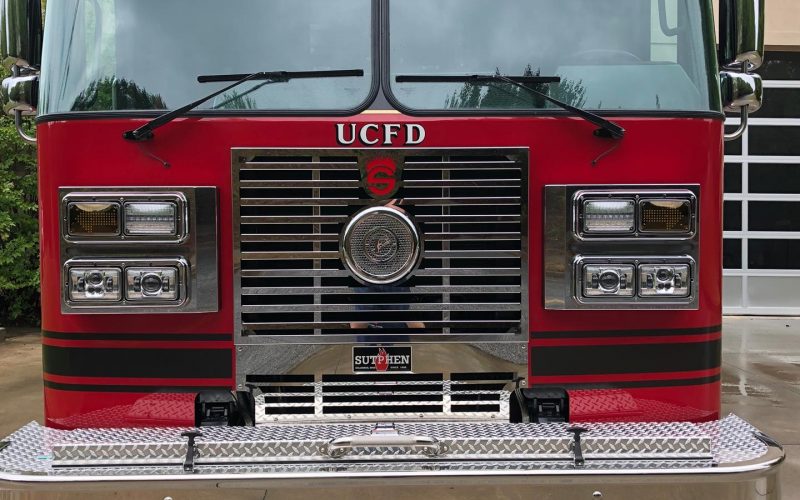

CHASSIS:              Sutphen 62”cab with 10” half raised roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 24,000 lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

PUMP:                  Hale

  • QMAX-1500 GPM Single Stage
  • Discharge: 2.5” Left, 4” LDH, 2.5” Right, 2.5” Left Rear, 1.5” Front Bumper, 2” Plumbing, 3” Deck Gun,
  • 750 Gallon Water Tank

BODY:                   Sutphen

  • 222 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Barrier Style Cab Doors
  • Grip Strut At First Step of Cab
  • Diamond Plate Rear Exterior Wall of Cab
  • Pressure Control FRC PumpBoss
