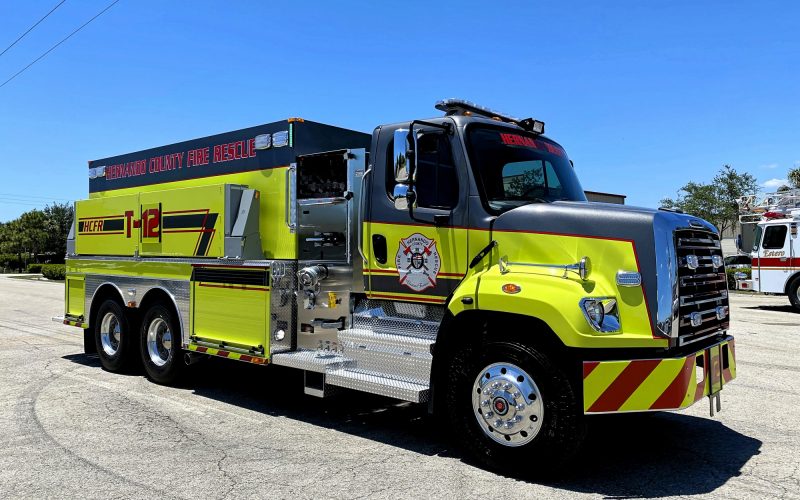

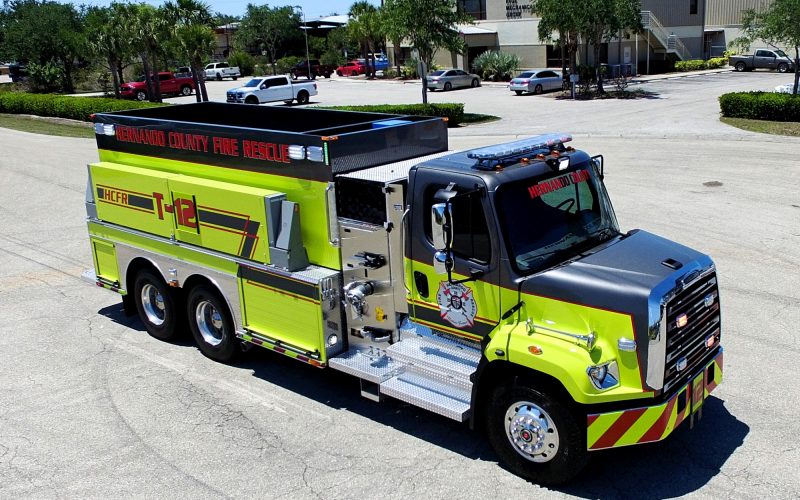

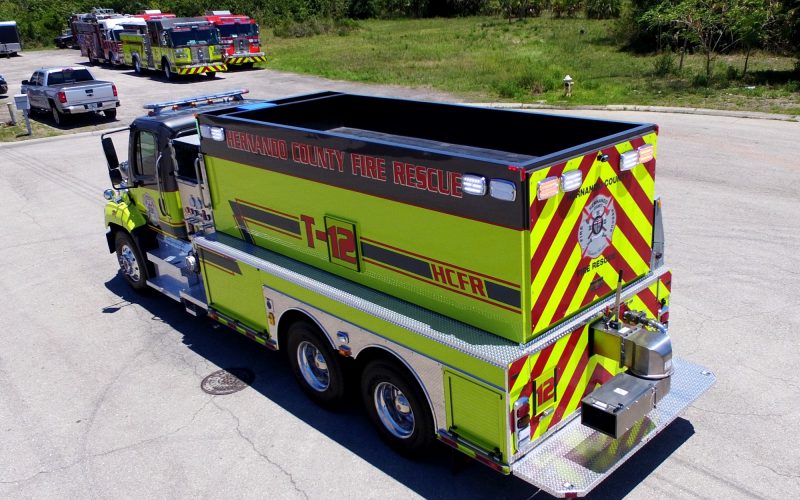

Delivery Date:
05/13/2020
Department Name:
Hernando County Fire Department
Department City / State:
Brooksville, FL
Truck Type:
Sutphen Corporation – HS #6520
Dealer – South Florida Emergency Vehicles
WHEELBASE: 220”
TRAVEL HEIGHT: 10’ – 4”
TRAVEL LENGTH: 31’ – 5”
CHASSIS: Commercial Chassis, 65” cab
- Two-Door, Two-Person Cab
- Front Axle and Suspension 16,000 lbs
- Rear Axle and Suspension 46,000 lbs
- Engine: Cummins L 9, 400 HP
PUMP: Hale
- MPB-1000 GPM, Pump
- Discharges: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
- Crosslay: (2) 2” w/ 1 ½” Swivel, (1) 2 ½” Deadlay Storage
- 3,000-Gallon Water Tank
BODY: Sutphen
- ROM Roll-Up Compartment Doors
- 82.5 cu. ft. Total Compartment Space
- Body: SWT-04B
ADDITIONAL EQUIPMENT:
- Whelen PFH1 Brow Light
- Whelen 62” Justice Lightbar
- Whelen M9 Scene Lights
- Whelen M6 Warning Lights
- Whelen M9 Warning Lights
