Delivery Date:
01/01/2018
Department Name:
Syracuse Fire Department
Department City / State:
Syracuse, NY

WHEEL BASE: 252”

TRAVEL HEIGHT: 10′-1″±2″

TRAVEL LENGTH: 48’0”

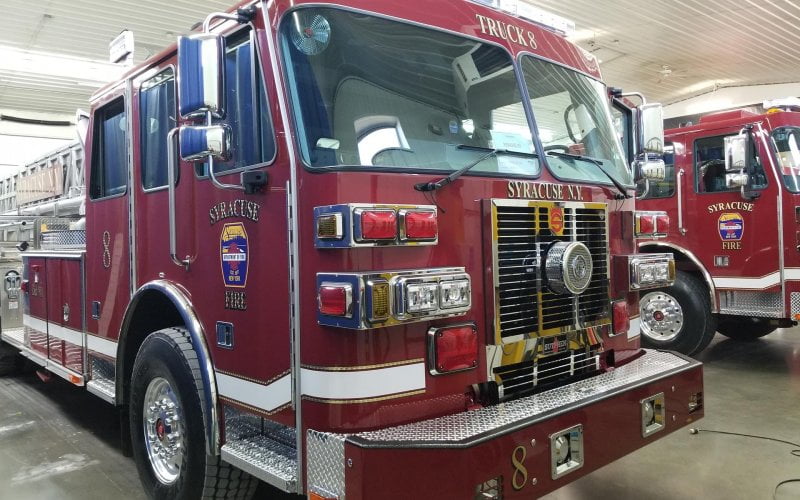

CHASSIS:              Sutphen 56” cab with 10” flat roof

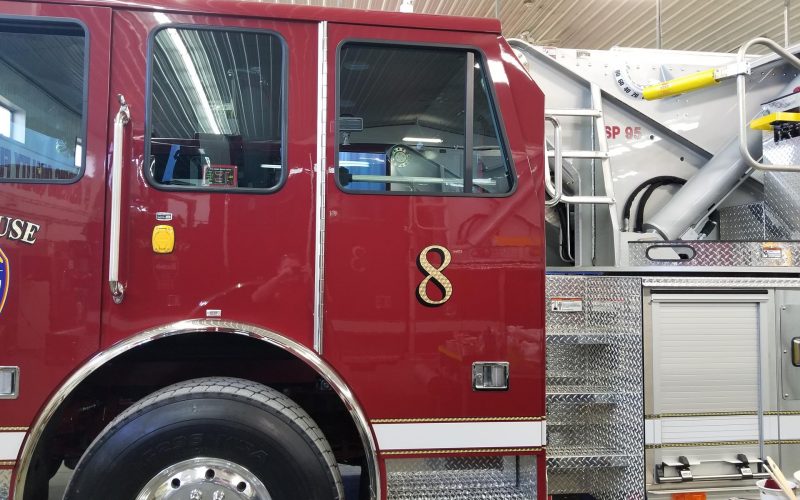

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 23,000 lbs.
  • Rear Axle and Suspension: 44,000 lbs.
  • Engine: Cummins ISX 12 500HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison 4060 Transmission rebuilt

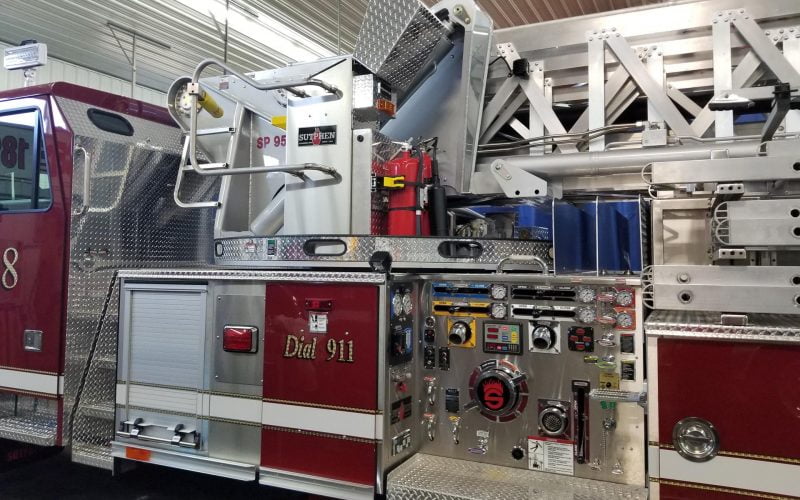

PUMP:                  Hale

  • 1500 GPM 6” Suction Single Stage
  • Discharge: (2)2.5” Left, (2) 3” Right,
  • 400 Gallon Water Tank

OPTIONAL EQUIPMENT:

  • Storage Tubes for (1) 16’ Wood Handle Pike Pole and (1) 14’ NY Hook
  • Aluminum Divider on Crew Seat Riser in Cab
  • Second set of Battery Jumper Studs below Turntable Access Steps
  • Mud Flaps, Rear, Wide Enough to go to Frame Rail
  • Driveline Drop Guards
  • Siren Speakers,(2) Whelen SP123BMC, Recessed in Front Face of Bumper
  • Fully Enclosed Map/Key Storage Box on Engine Enclosure
  • Metal Protective Cover Over Heat to Feet Shroud
  • Master Fan Switch by Driver
  • Stainless Steel Hand Rail Across Upper Slant of Rear Cab Interior
