Delivery Date:
04/01/2018
Department Name:

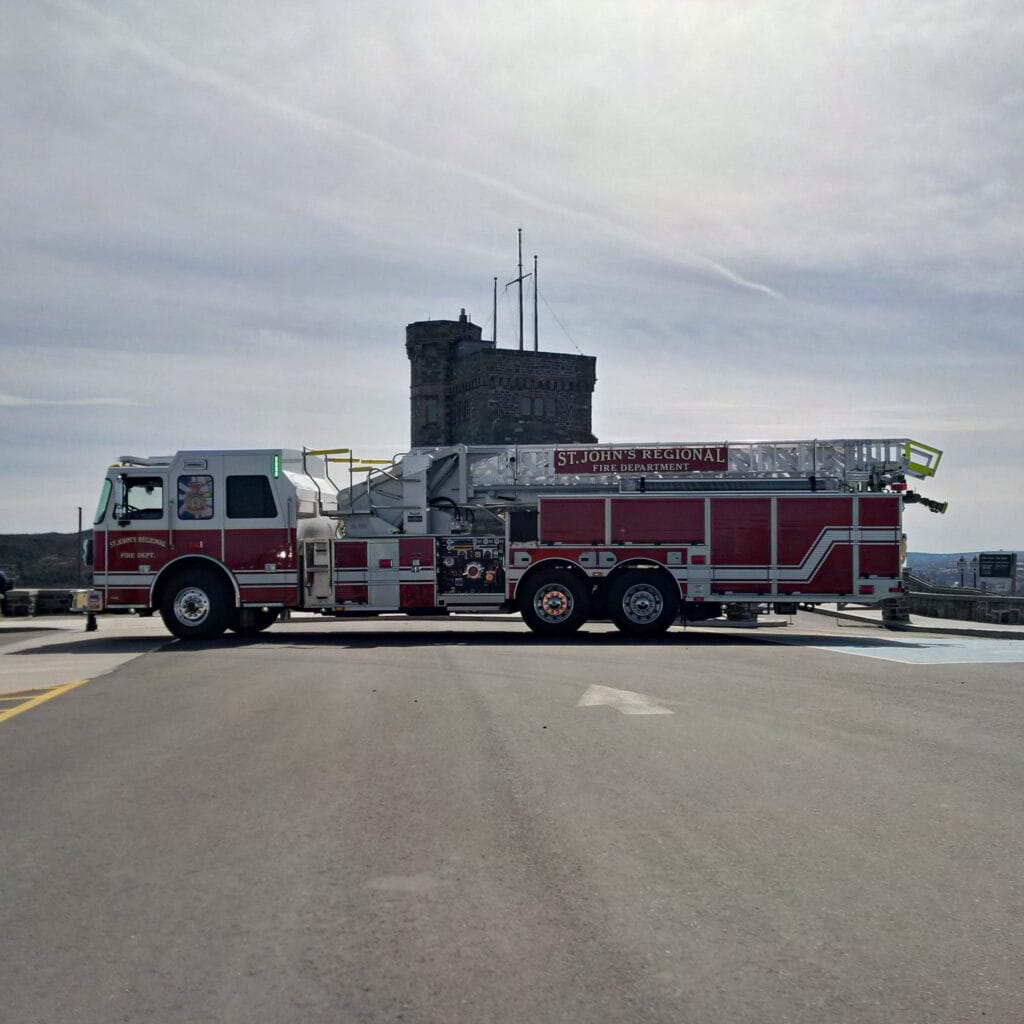

St. John's Regional Fire Department
Department City / State:
St. John’s, Newfoundland
Truck Type:
WHEEL BASE: 242″
TRAVLE HEIGHT: 9′-8 1/2″
TRAVEL LENGTH: 42′-5 3/4″
CHASSIS: Sutphen 62” Cab with 10” half raised roof
- Four-Door, Six-Person Cab
- Front Axle and Suspension: 23,000 Lbs.
- Rear Axle and Suspension: 48,000 Lbs.
- Engine: Cummins ISX 12 500HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5
PUMP: Hale
- QMAX 2000 GPM Single Stage
- Discharge: (2) 2.5” Left, 3” Right, 2.5” Right,
- 300 Gallon Water Tank
- FOAMPRO 2002, 5.0 GPM
- 20 US Gallon Foam Cell
BODY: Sutphen
- Aluminum
- 67 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Engine Fuse Block Lowered For Access from Inside the Cab
- Compression Fittings on All Air Lines
- Air Horn Button at Pump Panel & Turntable
- Extra Air Tank for Air Horns
- VMUX Navigation System
- Vinyl Seats
- Ladder Compliment to Be 85 Feet
- Discharge Valve at Waterway
