Delivery Date:
03/01/2018
Department Name:
Spring Valley Fire Department
Department City / State:
Spring Valley, NY

SUTPHEN CORPORATION

Spring Valley Fire Department, Spring Valley, NY

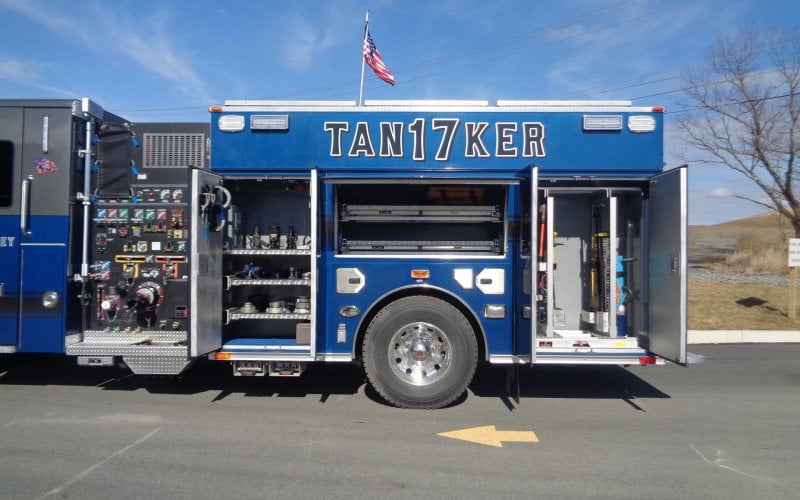

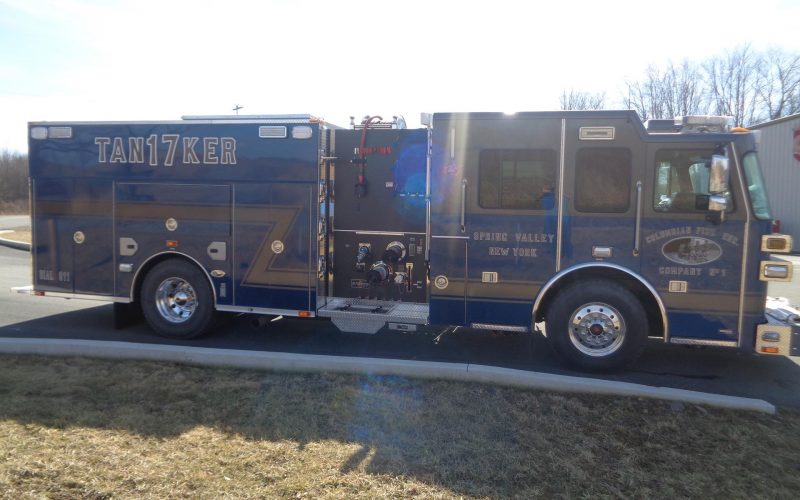

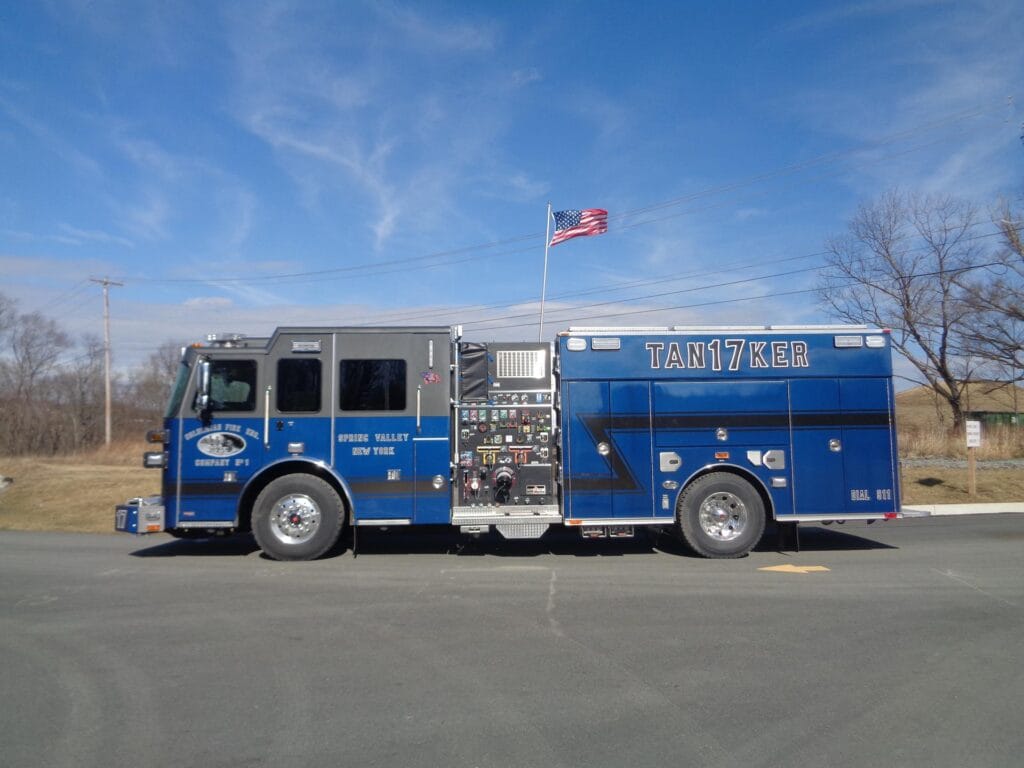

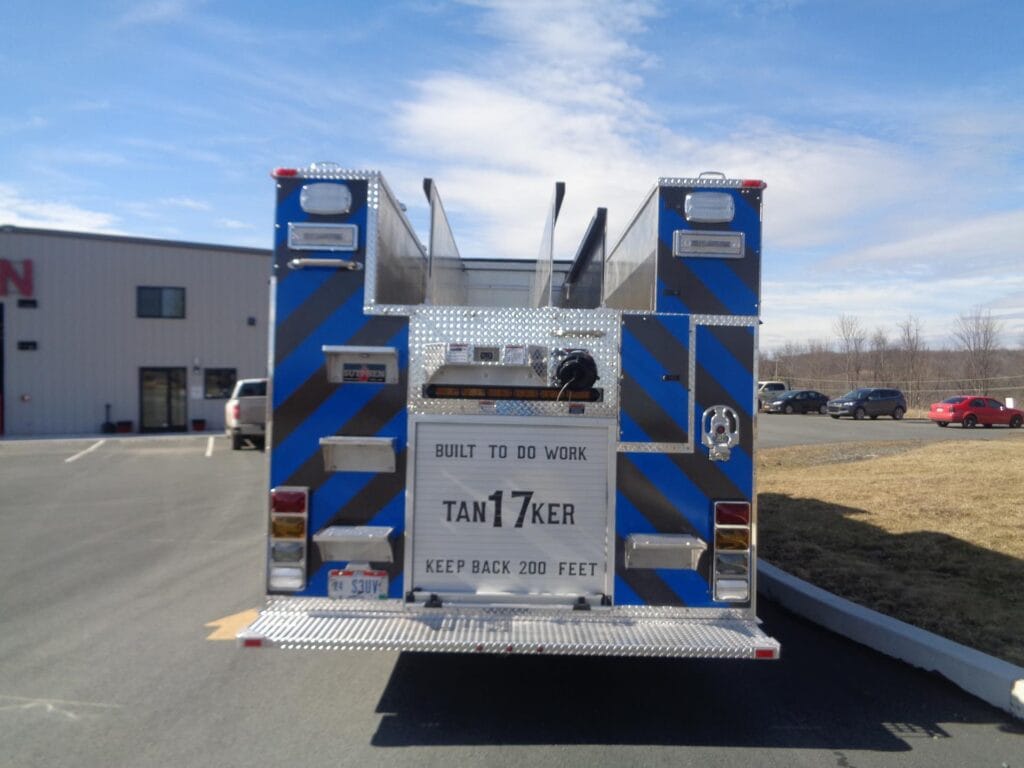

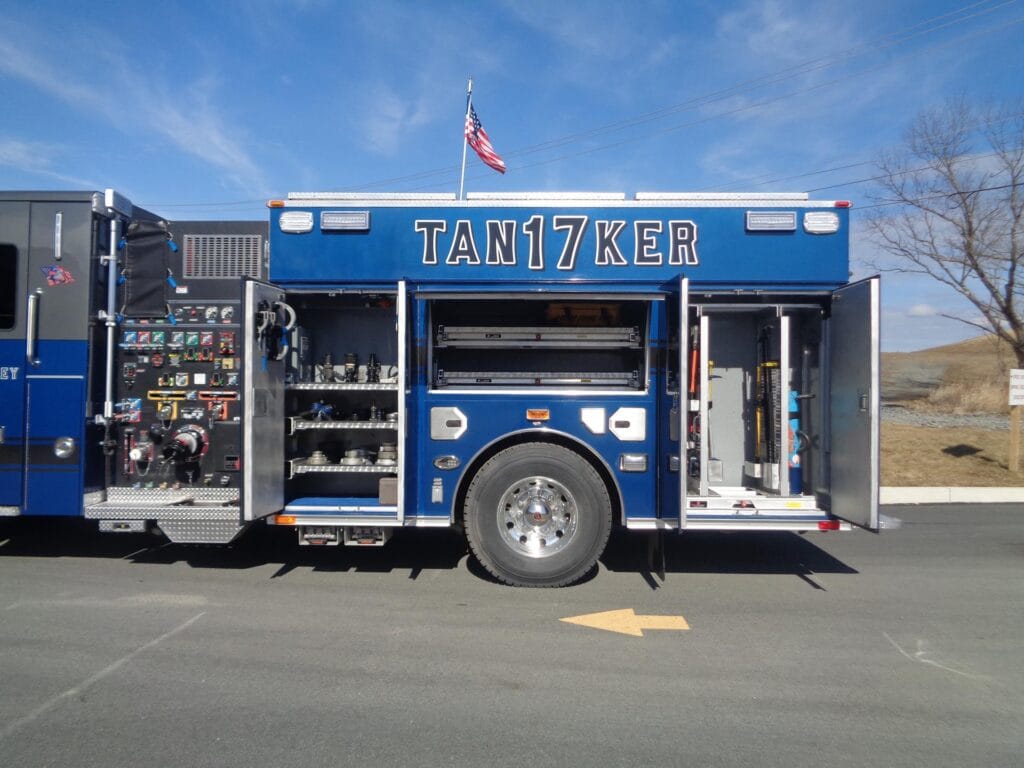

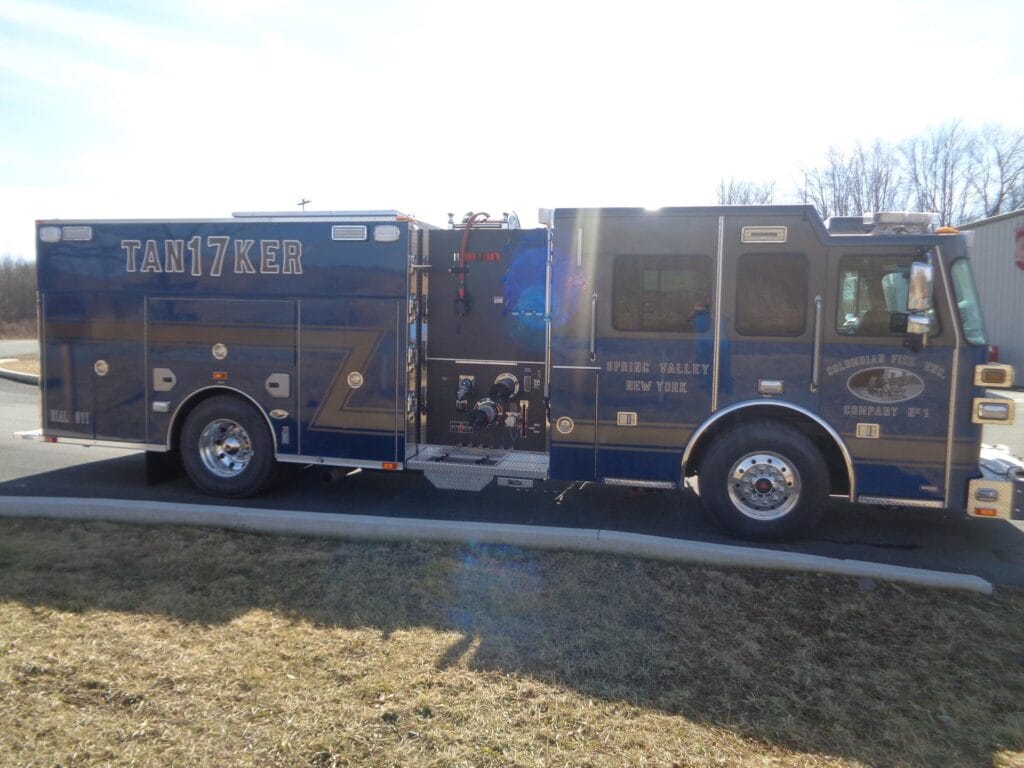

Custom Rescue Pumper (HS-6037)

WHEEL BASE: 205”

TRAVEL HEIGHT: 9’ 9”

TRAVEL LENGTH: 32’11”

CHASSIS:             Sutphen 73” cab with 10” half raised roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins ISX 12 500HP
  • Alternator: Niehoff, 430 AMP
  • Transmission: Allison Gen 5

PUMP:                 Hale

  • 2000 GPM Single Stage
  • Discharge: (2) 2.5” Left, 4” Right, 3” Right, 2.5” Front/Left of Main Hosebed, 2.5” Front/Right of Main Far Right Hosebed, 1.5” Front Bumper, 2” Plumbing,
  • 1000 Gallon Water Tank

BODY:                  Sutphen

  • Aluminum
  • 342.3 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Federal Q2B
  • 120 Volt Duplex Outlets
  • Tool Mounting Plate back of A/C Unit
  • Ziamatic SAC-44 Folding Wheel Chocks MTD

Hannay SFCR1622-14-16 Reel W/200’ 10/3 with Fairlead Roller on Door
