WHEELBASE: 269”
TRAVEL HEIGHT: 10’ – 11”
TRAVEL LENGTH: 49’ – 2”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 24,000 lbs w/ (4) 56” Leafs
- Rear Axle and Suspension 52,000 lbs
- Engine: Cummins X 15, 605HP
- Alternator: C.E. Niehoff 415 AMP
- Transmission: Allison Gen 5, EVS4500

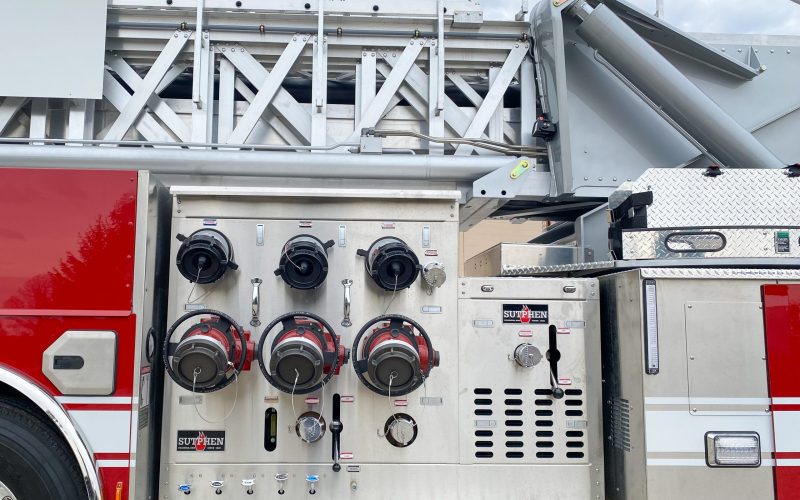

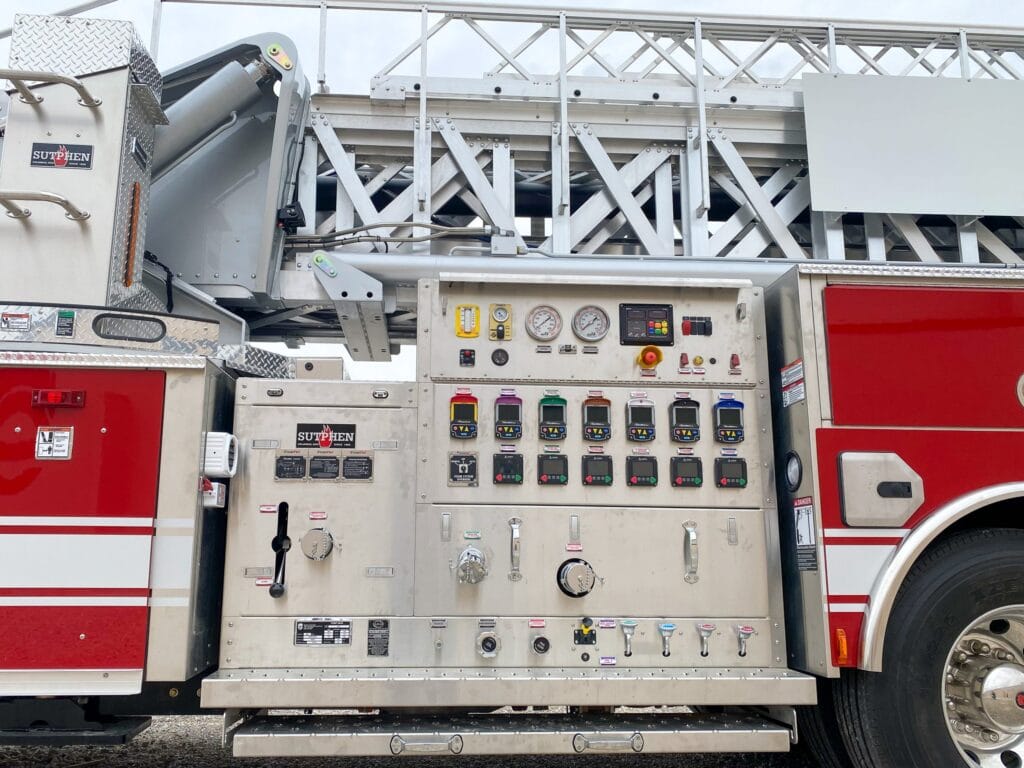

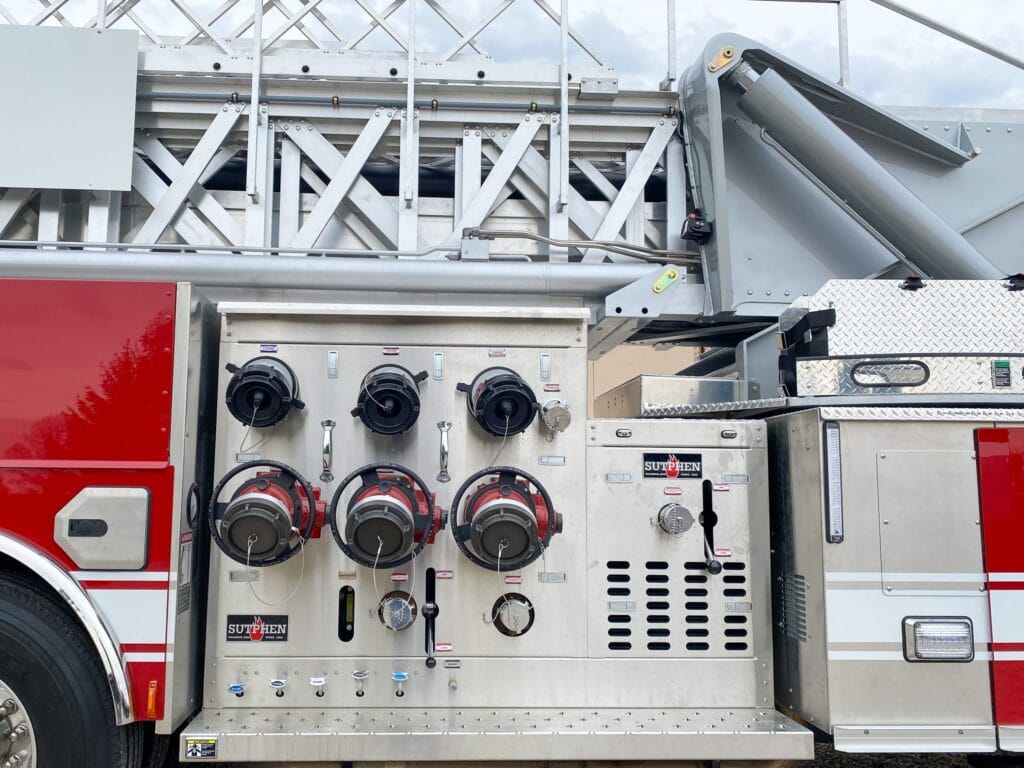

PUMP: Hale
- 8FGR 3000 GPM
- Discharges: (1) 2 ½” Left (Foam Capable), (3) Right LDH 6” (Foam Capable), (3) 6” Passenger Side, (1) 2 ½” Right (Foam Capable), (1) 2 ½” Left Side (Foam Concentrate Only) (1) 2 ½” Right (Foam Concentrate Only)
- 700-Gallon Foam Tank
BODY: Sutphen
- Huckbolt #304 Stainless Steel
- Mixed AMDOR Roll-Up and Hinged Compartment Doors
- Body: SP4 – Left High / Right Intermed
ADDITIONAL EQUIPMENT:
- 12” Polished Stainless Steel Bumper
- Camera System: FRC, Inview Trueview, 3 Cameras
- Intercom System, FRC ACT 3-Station
- 12V FireTech 3-Piece Brow Light
- 12V FireTech Aerial Spotlights
- Whelen Freedom Freedom IV 72” Light Bar
- Whelen L31 Warning Beacons
MONITOR:
- Akron Stream Master2 Electric Monitors – 2,000 GPM (2)
