Delivery Date:
04/16/2020
Department Name:
Shell Polymers
Department City / State:
Monaca, PA

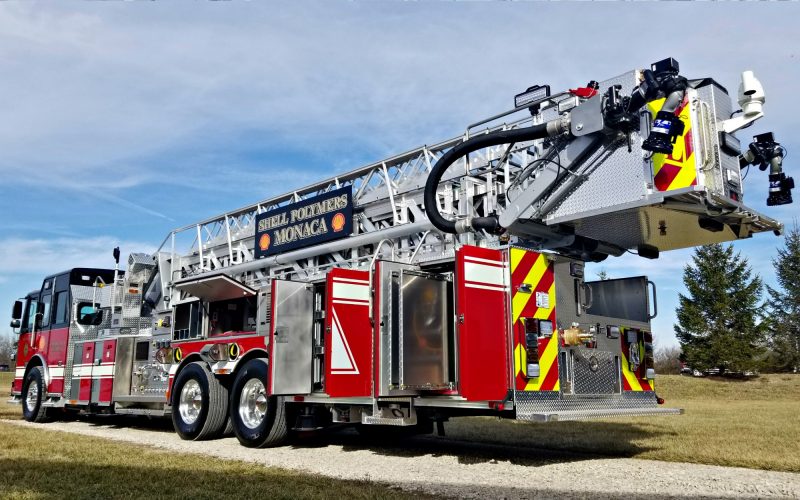

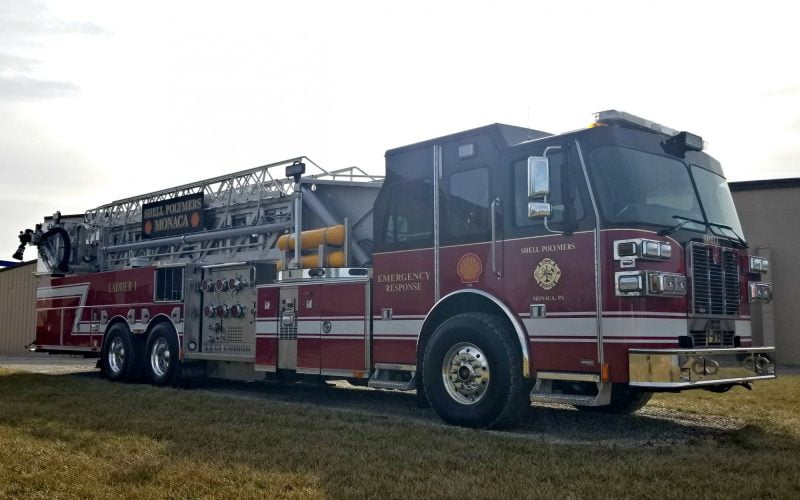

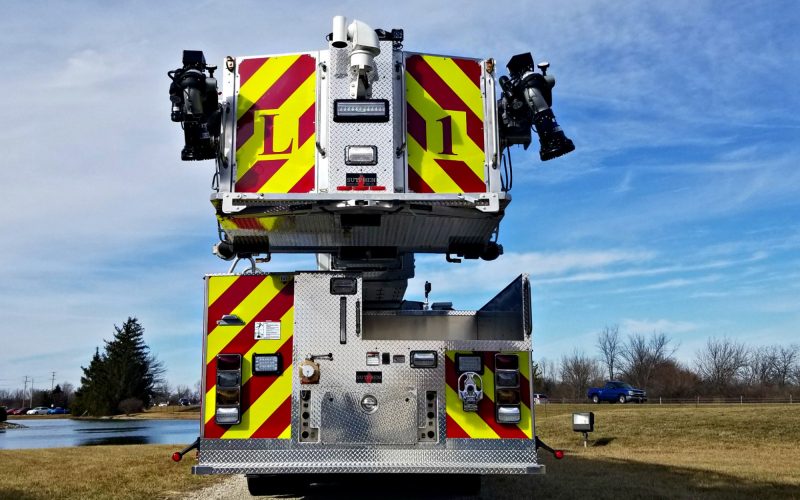

Sutphen Corporation – HS #6487

Dealer – Custom Fire

WHEELBASE: 277 ½”

TRAVEL HEIGHT: 11’ – 8”

TRAVEL LENGTH: 48’ – 6”

CHASSIS:  Sutphen Monarch Heavy-Duty Custom Chassis, 56”

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 25,500 lbs
  • Rear Axle and Suspension 62,000 lbs
  • Engine: Cummins X 15 600HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS4000

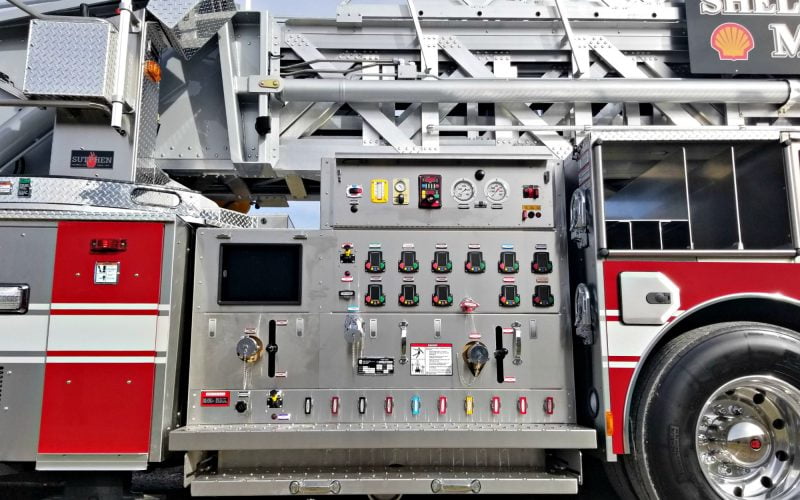

PUMP:                 Waterous

  • CRU-2C21 3000 GPM, Waterous Pump
  • Discharges: (3) 6” Officer Side, (1) 3” Officer Side, (1) 3” Driver Side
  • Crosslay: (2) Industrial Crosslay Foam 3” w/ 2 ½” Swivel
  • 800-Gallon Foam Tank
  • Waterous Ultrafoam System

BODY:                  Sutphen

  • HuckBolted #304 Stainless Steel
  • Aluminum Hinged Compartment Doors
  • Alco-Lite (1) 10 ft. Folding Ladder
  • Over 170 cu. ft. Total Compartment Space
  • Body: SP112 – Left High/Right Intermed

ADDITIONAL EQUIPMENT:

  • 6” Polished Stainless Steel Bump Extension
  • Voyager 3, Camera System
  • Sidewinder WTI, Thermal Camera in the Bucket
  • 10KW Smart Power Generator
  • Pike Pole Storage Tubes (6)
  • SCBA Bottle Compartments (8)
  • FRC ACT 2-Station, Intercom System
  • Front Tow Eyes
  • FRC Spectra Brow Light
  • Whelen Freedom IV 72” 12 Module LED Lightbar
  • FR Spectra 240 LED Telelights
  • FRC 900 LED Scene Lights
  • Rigid Boom Tracking Lights

MONITOR:

  • Driver Side Monitor: TFT Y4-E11A Monsoon
  • Driver Side Nozzle: TFT Electric RC Monsoon w/ M-ERP 2000-NN 2000 GPM
  • Officer Side Monitor: TFT Y4-E11A Monsoon
  • Officer Side Nozzle: TFT Electric RC Monsoon w/ M-ERP 2000-NN 2000 GPM
