Delivery Date:
10/25/2019
Department Name:
NASA, Kennedy Space Center, FL
Department City / State:
Kennedy Space Center, FL

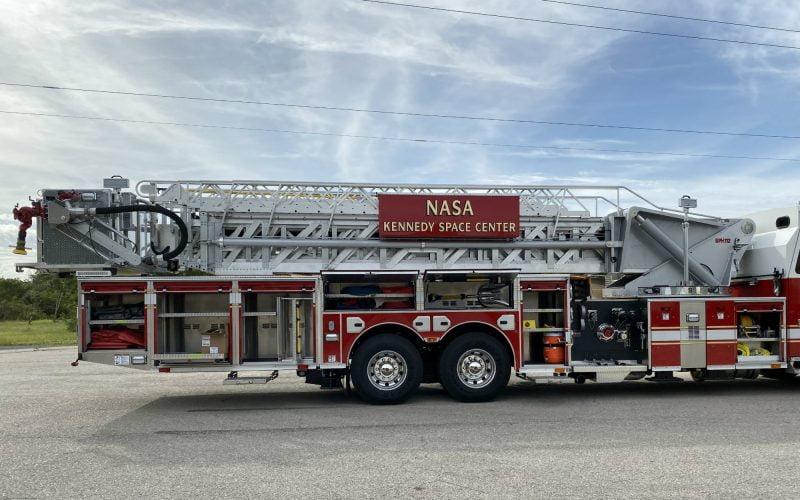

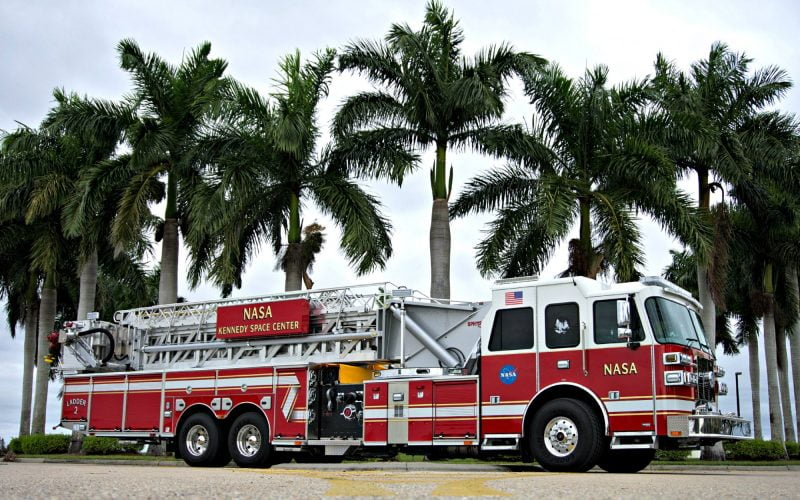

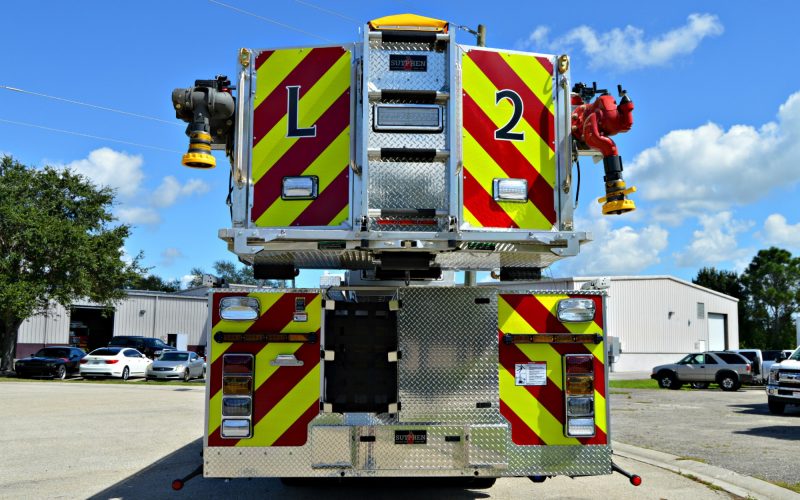

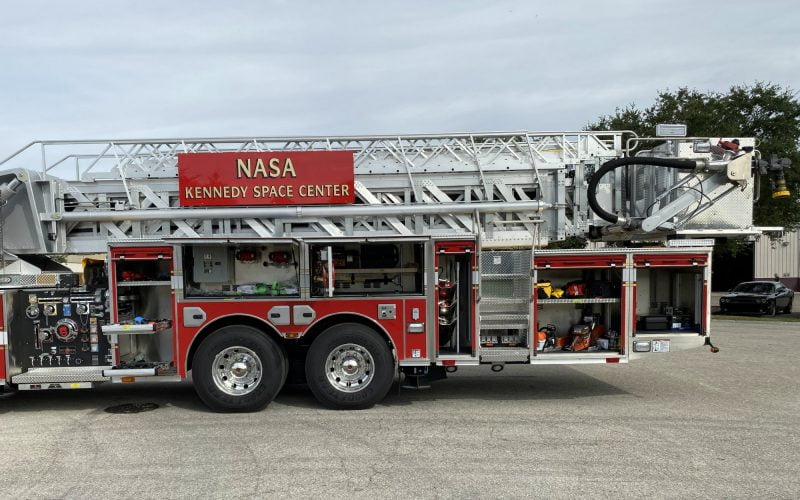

Sutphen Corporation – HS #6401

Dealer – South Florida Emergency Vehicles

WHEEL BASE: 275”

TRAVEL HEIGHT: 11’ – 8”

TRAVEL LENGTH: 49’ – 0”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 25,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

PUMP:                 Hale

  • QMAX-2000 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left; (1) 4” Right; (1) 2 ½” Right, (1) 2 ½” Front Bumper
  • Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Mixed Compartment Doors, Amdor Roll-up and Hinged
  • Over 328 cu. ft. of Total Compartment Space
  • Alco-Lite Ladder Compliment (125’: 16’, 20’, 28’ 2-Section, 35’ 2-Section, 10’ F & 16’ Combination)
  • SPH 112: Left 56” High/ Right 48”

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150’ (1)
  • 10KW Harrison Generator
  • Brigade, Backeye 360 Camera System
  • Intercom System, FRC IC301 3-Station
  • Pike Pole Storage Tube (6)
  • Whelen Freedom IV (12) LED Lightbar
  • Whelen LED, TAL85 22” 2-Piece, Traffic Advisor
  • Firetech (3) Piece 12V LED Brow
  • Firetech 30” LED
  • Firetech 21” LED
  • FRC Spectra 240 LED Tele

MONITOR:

  • Drive Side Monitor: Elkhart Cobra EXM 1250 GPM w/ Elkhart SM-1250E w/ 248A Stream Shaper
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Elkhart Slect-O-Matic X-Stream SM-1250
