Delivery Date:
12/12/2019
Department Name:
Western Reserve Joint Fire District
Department City / State:
Poland, Ohio

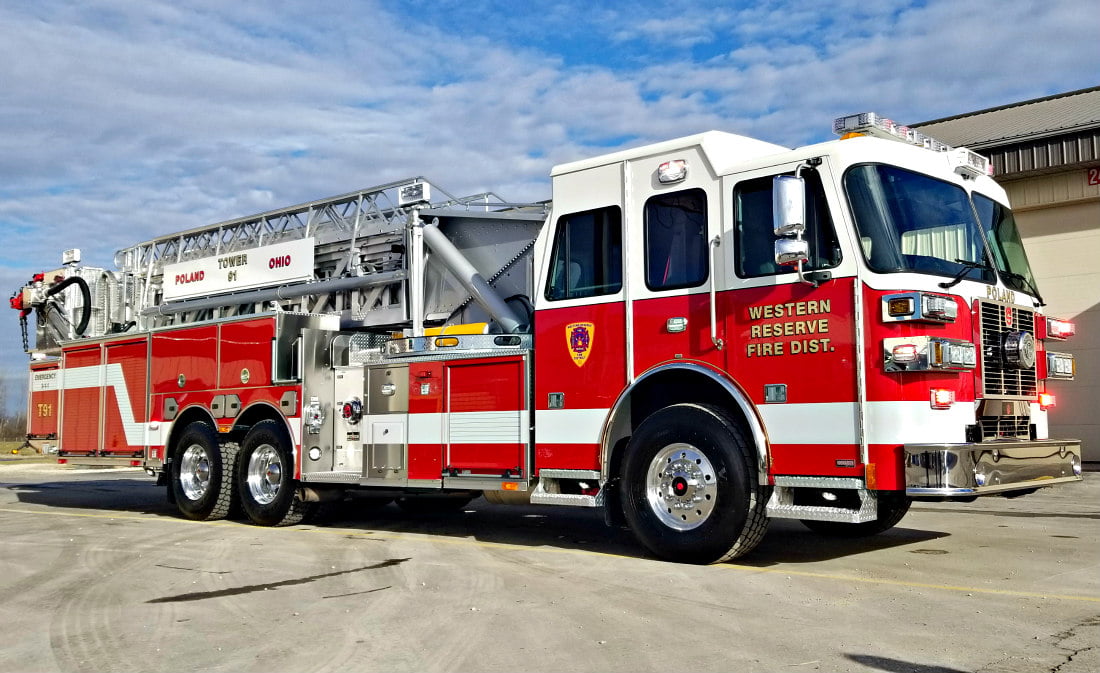

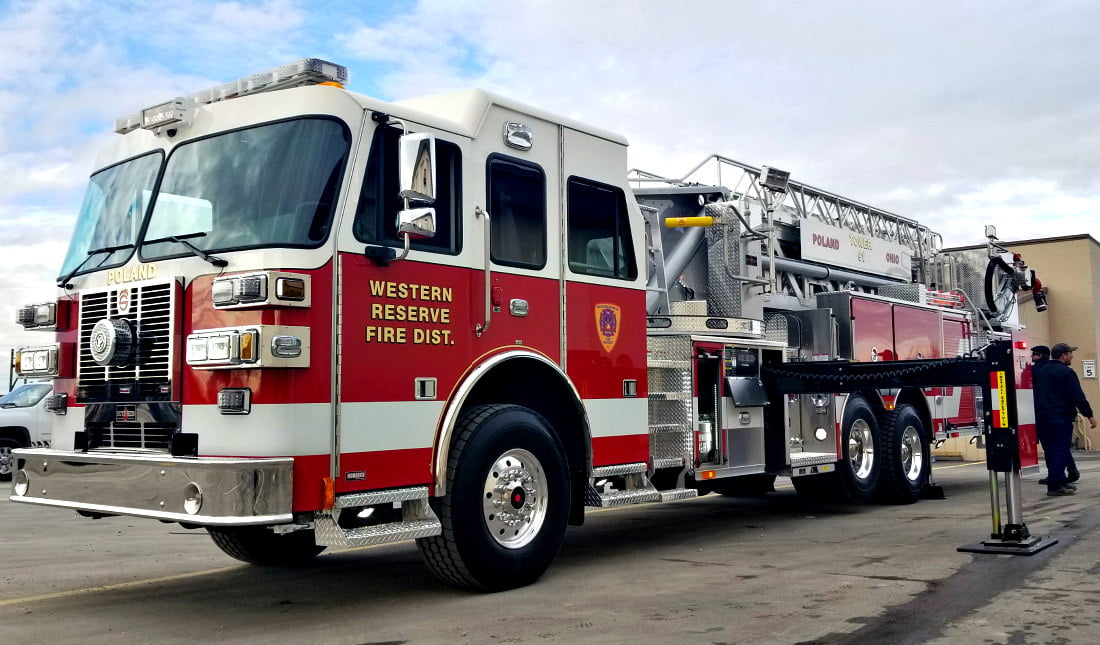

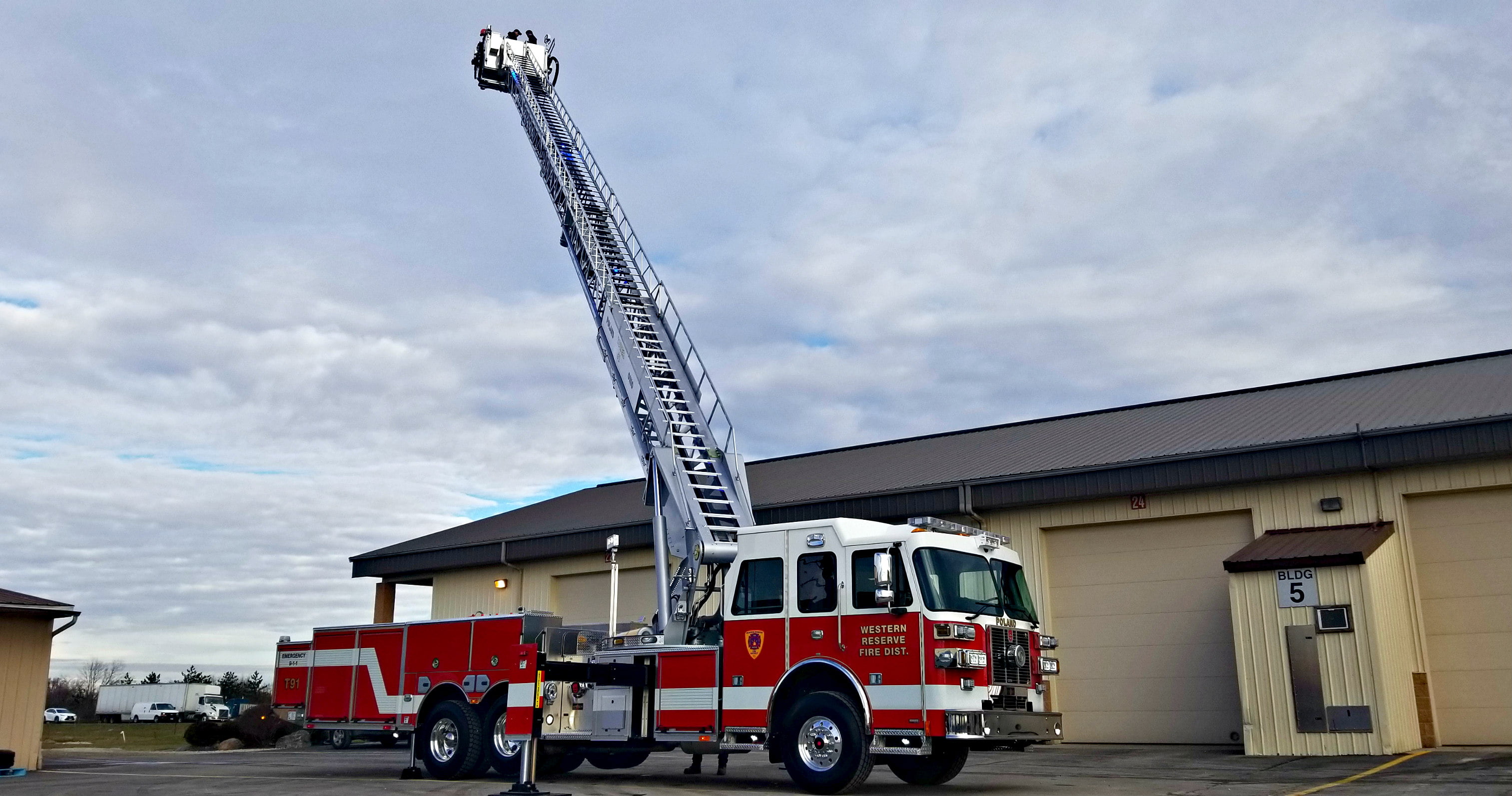

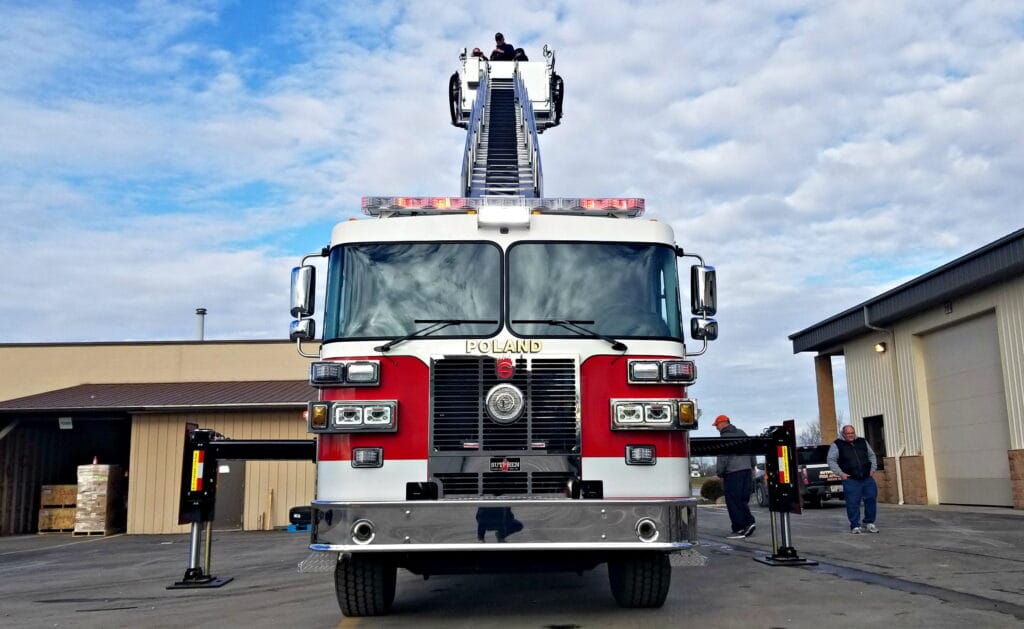

Truck Type:
Sutphen Corporation – HS #6307
Dealer – Herb Fire Equipment
WHEEL BASE: 230”
TRAVEL HEIGHT: 11’ – 6”
TRAVEL LENGTH: 45’ – 7”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension: 23,000 lbs
- Rear Axle and Suspension 52,000 lbs
- Engine: Cummins ISX 12, 500 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000

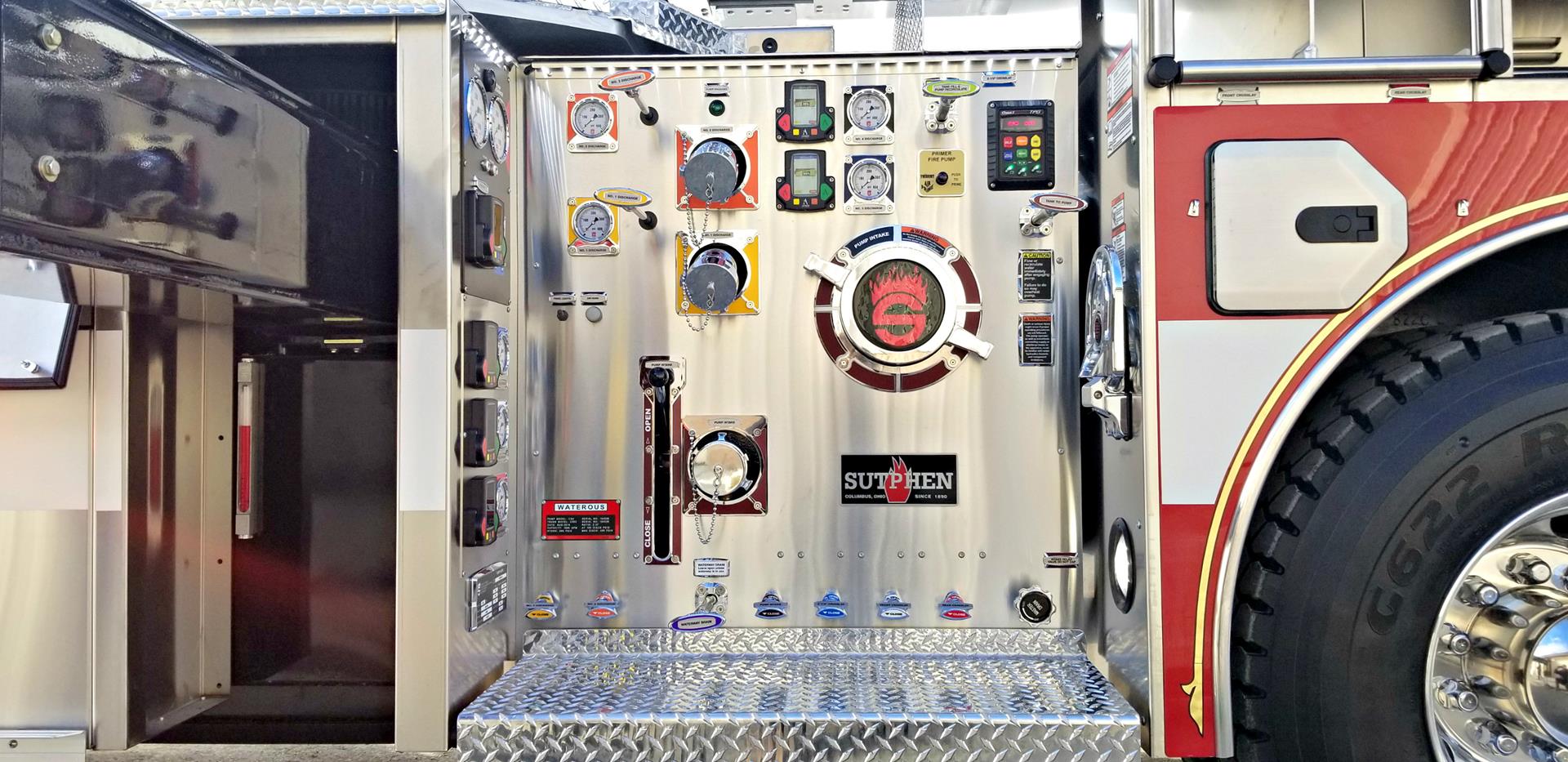

PUMP: Waterous
- CSU-1500 GPM, Single Stage
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
- Crosslays: (1) 2 ½”, 2 ½” Swivel and (2) 2” Crosslays with 1 ½” Swivel
- 300-Gallon Water Tank
BODY:
- Huck Bolted #304 Stainless Steel
- ROM Roll-Up Compartment Doors
- Over 293 cu. ft. of Compartment Space
- Alco-Lite Ladders (115’, 14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section and 10’ F)
- Left 56” H/ Right 56” H
OPTIONAL EQUIPMENT:
- 6” Bumper Extension
- FRC Seon, 360 Camera
- Federal Q2B Siren
- 10KW Smart Power Generator
- Hannay Electric Cord Reel, 175’ (1)
- Telescopic LED Scene Light
- Pike Pole Storage Tube (6)
- Intercom System, FRC ACT 2-Station
MONITOR:
- Driver Side Monitor: Akron 3482 Stream Master2, Electric 1250 GPM
- Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
- Officer Side Nozzle: Akron 2499 & 3488 Pipe
