Delivery Date:
02/17/2023
Department Name:
Wadsworth Fire Department
Department City / State:
Wadsworth, OH

Sutphen Corporation – HS #7334

Dealer –  Herb Fire

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

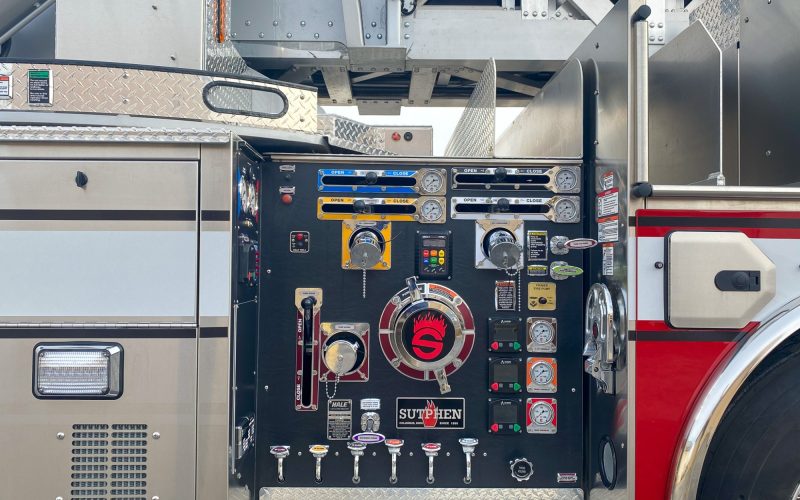

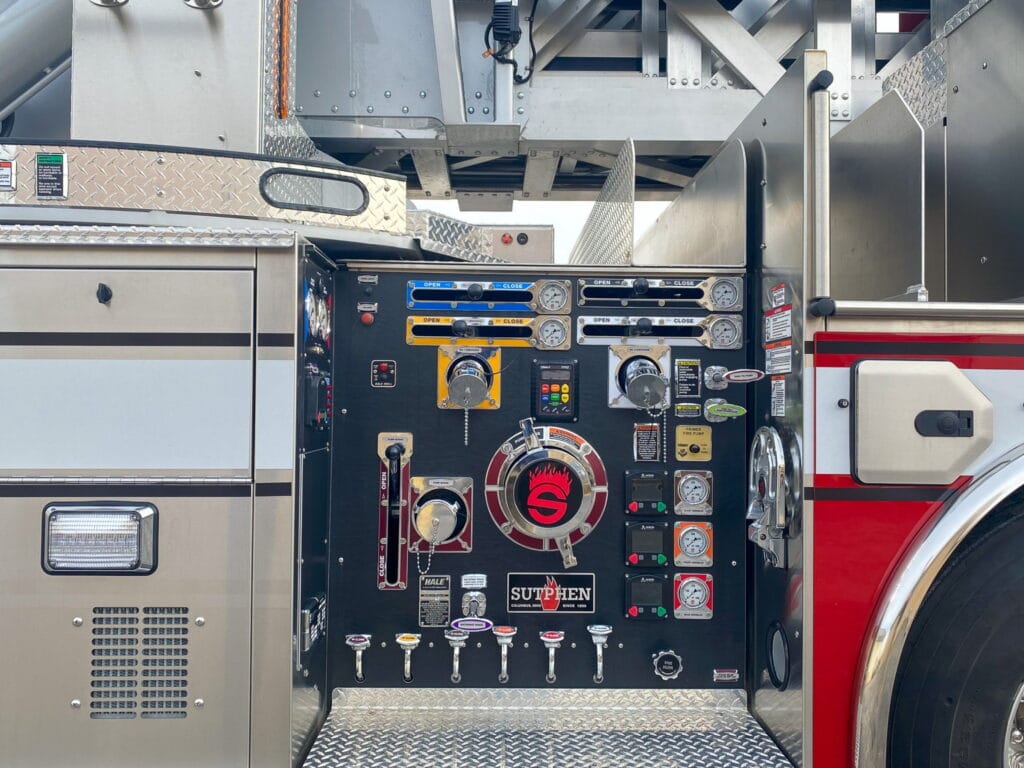

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 400-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • Mixed Roll Up and Hinged Compartment Doors
  • Over 280 cu ft. Total Compartment Space
  • Alco-Lite Ladder Package: 115’: 14’; 16’; 16’; 24’ 2-Section; 35’ 2-Section & 10’F
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: Wireless Firecom 5100D, Single Radio, 6 Position
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power 10KW HYD
  • Camera System: FRC, Inview 360HD w/ Built-In DVR
  • Whelen Freedom IV 72” Lightbar
  • 12V FR Spectra Brow Light
  • FireTech Aerial Spotlights
  • 240V FR Spectra Tele Lights
  • 12V FR Spectra 900 Scene Light
  • Whelen 600 Warning Light

MONITOR:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
