Delivery Date:
11/27/2020
Department Name:
Travis County ESD #6
Department City / State:
Austin, TX

Sutphen Corporation – HS #6666

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 49’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

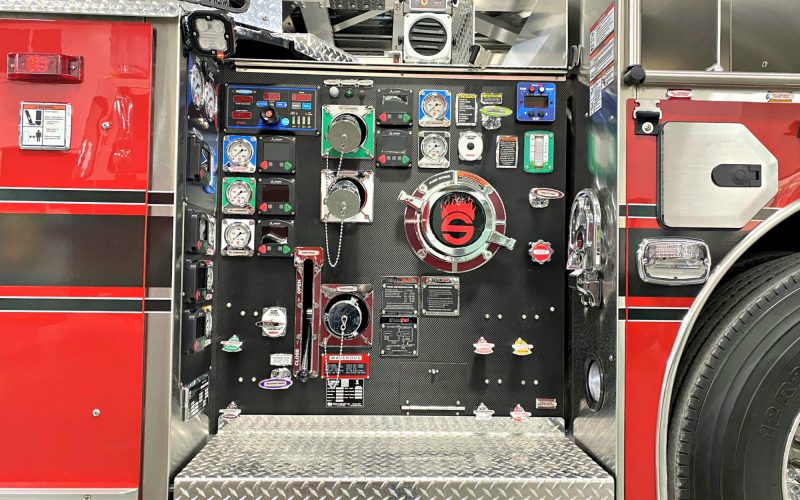

PUMP:                 Waterous

  • CSU-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 4” Right, (1) 2 ½” Front Bumper
  • Crosslay: (1) 2 ½”, 2 ½” Swivel & (2) 2” Crosslay w/ 1 ½” Swivel
  • 500-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Foam System: FoamPro 2002, 5.0 GPM

BODY:                  Sutphen

  • Amdor Roll-Up and Hinged Compartment Doors
  • Alco-Lite Ladder Package (101’: (2) 16’; 24’ 2-Section; 35’ 3-Section and 10’ Folding)
  • Body: SPH-3, Left 56” H/Right 56” H

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System (Wired): Brigade Backeye 360
  • Camera System (Wireless): Inview Trueview, Two Cameras
  • Generator: 3000 Watt Honda Portable
  • 17’ Little Giant
  • Intercom System, FRC ACT 3-Station
  • Whelen Freedom IV 72” LED Lightbar
  • Firetech 12V 3-Piece 72” LED Brow Light
  • Aerial Spotlight
  • M9 Warning Light
  • Traffic Advisor

MONITORS:

  • Driver Side Monitor: TFT Monsoon RC, Electric, w/ Elec Vum, (2) Panel Controllers & (1) Wireless Controller, Includes TFT master Stream 1250 GPM Electric Nozzle
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
