Delivery Date:
02/27/2024
Department Name:
Southington Fire Department
Department City / State:
Southington, CT

Dealer – MES

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a Flat Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15, 600HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

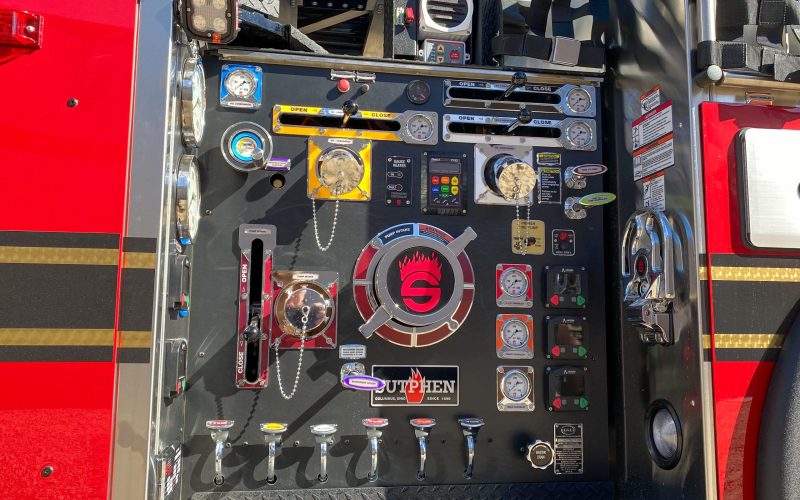

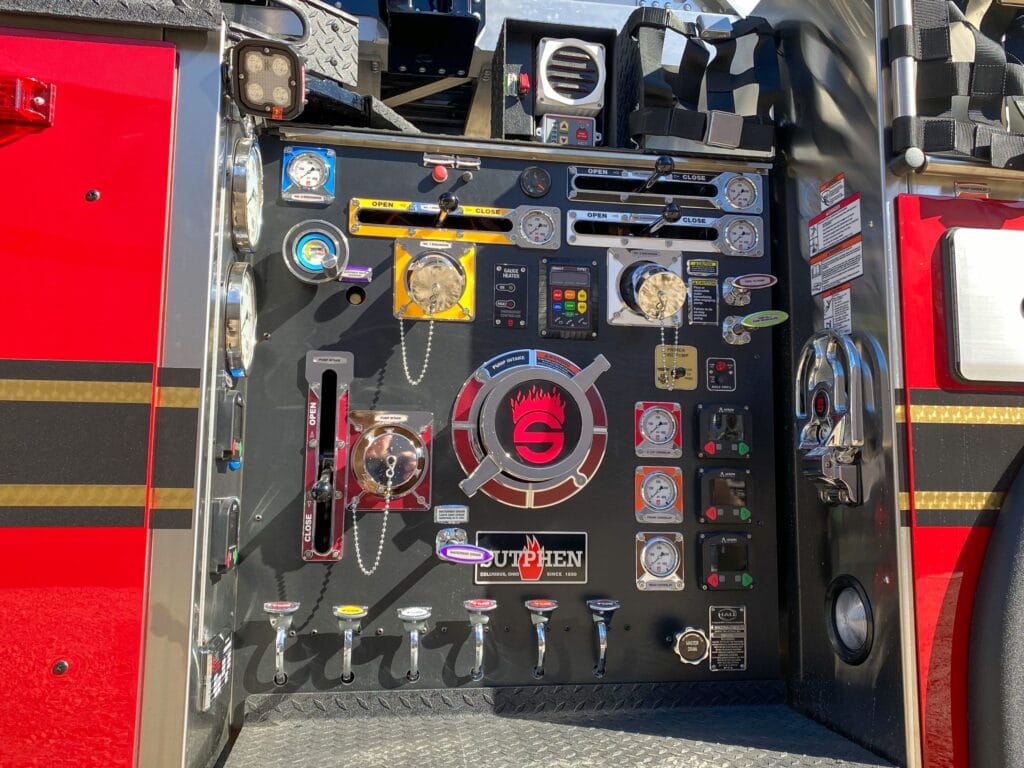

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 440-Gallon Water Tank

BODY:                 Sutphen

  • Huckbolt #304 Stainless Steel
  • Mixed Roll-Up and Hinged Compartment Doors
  • Over 280 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 115’: 14’; 16’; 16’; 24’ 2-Section; 35’ 2-Section & 10’F
  • Body: SPH-3, Left 56” H / Right 48” H

ADDITIONAL EQUIPMENT:

  • 18” Extreme-Duty Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC ACT 3-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power 6KW ER HYD
  • Camera System: Voyager 3
  • Whelen Freedom IV 72” Lightbar
  • Whelen M7 Warning Light
  • Whelen MINI Freedom IV Light Bar
  • 12V FireTech 3-Piece Brow Light
  • 12V FireTech Aerial Spotlights

MONITOR:

  • Driver Side Monitor: TFT Monsoon RC, Elec, w/ Elec VUM, (2) Panel Controllers & (1) Wireless Controller, Includes TFT Master Stream 1250 GPM Electric Nozzle
  • Officer Side Monitor: TFT Monsoon, Manual 2000 GPM w/ Manual VUM, Y4-MP1A
  • Officer Side Nozzle: TFT MST-4NJ Stacked Tips w/ XF-SS10-NN Stream Straightener
