Delivery Date:
01/18/2022
Department Name:
Shipshewana Fire Department
Department City / State:
Shipshewana, IN

Sutphen Corporation – HS #6915

Dealer – Herb Fire Equipment

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 0”

TRAVEL LENGTH: 46’ – 10”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

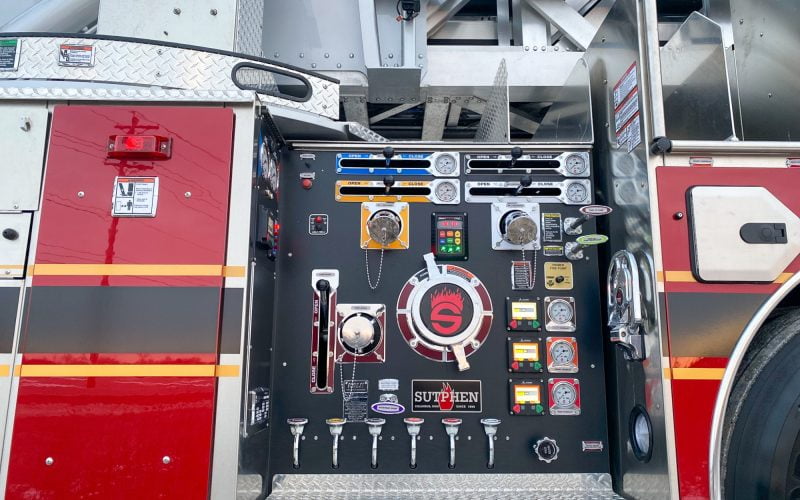

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslay: (1) 2 ½” Crosslay 2 ½” Swivel and (2) 2” Crosslays 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolted #304 Stainless Steel
  • Mixed Roll-Up and Hinged Compartment Doors
  • Over 280 cu. ft. Total Compartment Space
  • Ladder Package Alco-Lite (SPH): (1) 35’ 2-sec, (1) 24’ 2-Sec, (2) 16’ Roof, (1) 14’ Combo, (1) 10’ F
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: 10KW Smart Power
  • Intercom System: FRC ACT 2-Station
  • Stowable Handrail
  • Whelen Freedom IV 72” LED Light Bar
  • 12V Spectra Brow Light
  • 12V FireTech Spotlights
  • 12V Whelen 600 Scene Light
  • 240V FR Spectra Scene Light

MONITOR:

  • Driver Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Driver Side Nozzle: Akron 5160 Auto
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
