Delivery Date:
09/12/2019
Department Name:
Savannah Fire Department
Department City / State:
Savannah, GA

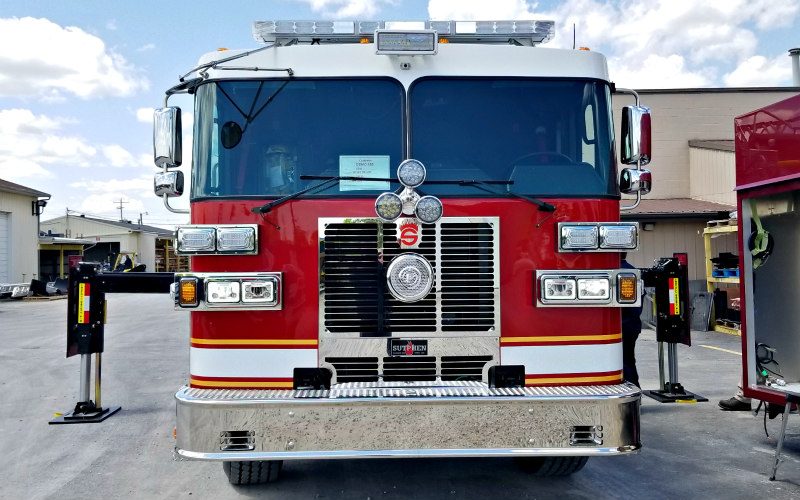

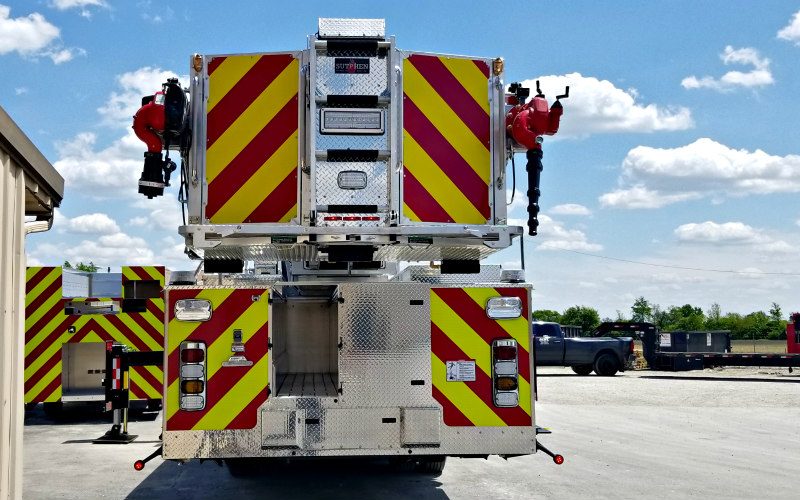

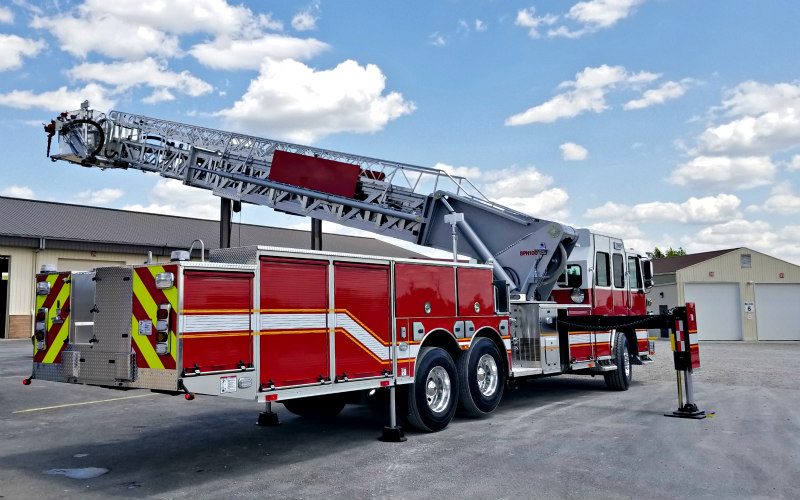

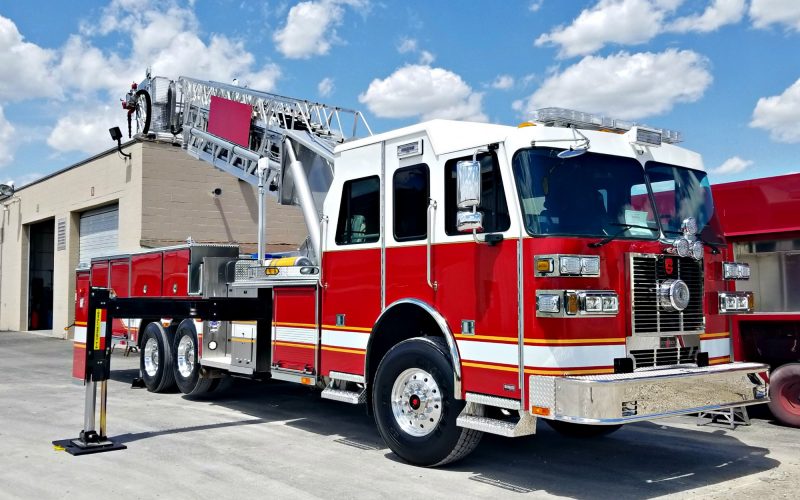

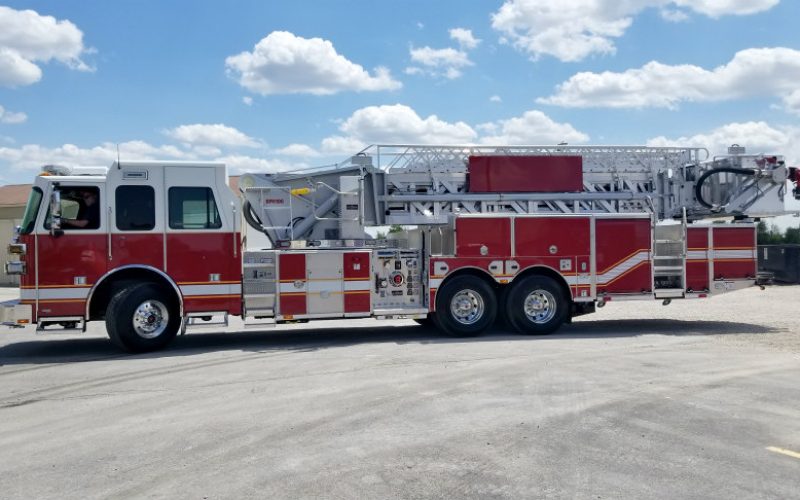

Sutphen Corporation – HS #6341

Dealer – Williams Fire Equipment

WHEEL BASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 7”

CHASSIS:          Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • 300-Gallon Water Tank
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays with 1 ½” Swivel

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Doors
  • 293 cu. ft. of Compartment Space
  • Alco-Lite Ladder Package, (115’: 14’, 16’, 16’, 24’ 2-section, 35’ 2-section and 10’ F
  • SPH-3, Left 56” High, Right 56” High

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mounted
  • 10KW Harrison Generator
  • (6) Pike Pole Storage Tubes
  • Camera System, Backeye 360 Camera System
  • Hannay Electric Cord Reel, 150’ (1)
  • Whelen Freedom IV (12) LED Lightbar
  • LED Roto-Ray
  • FRC Spectra 12V LED Brow
  • FRC Spectra 240V LED Tele
  • FRC Spectra 240V LED Scene
  • FRC ACT 2-Station Intercom System

MONITORS:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric 1250 GPM with Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
