Delivery Date:
08/02/2020
Department Name:
Rocky Point Fire District
Department City / State:
Shoreham, NY

Sutphen Corporation – HS #6586

Dealer – Mike Myers

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 47’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Eight-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: C.E. Niehoff, 360 AMP
  • Transmission: Allison 4500 Series

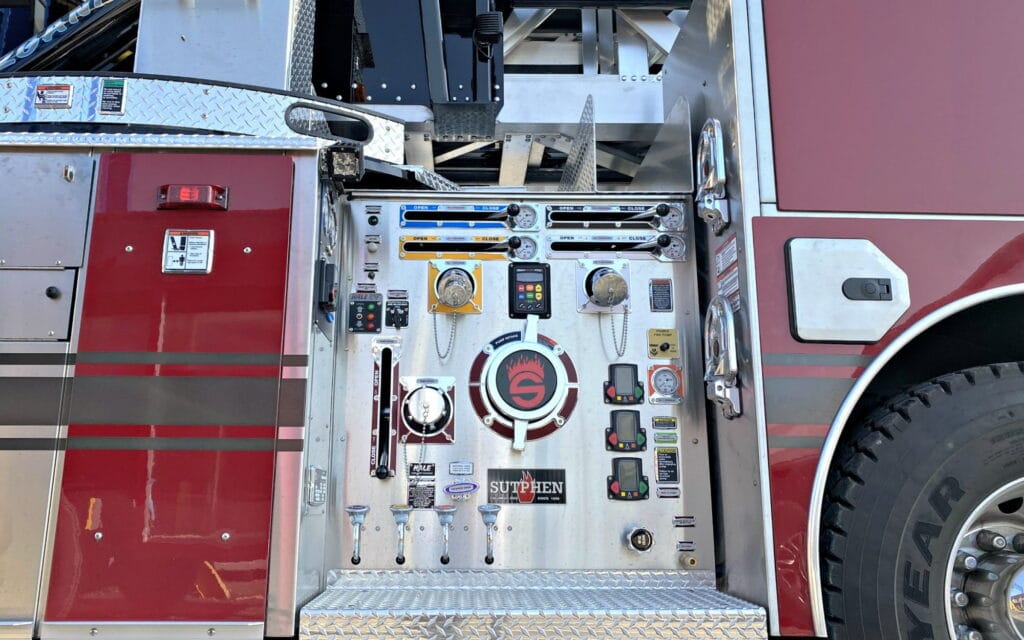

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (2) 2 ½” Right
  • Crosslay: (1) 2” w/ 1 ½” Swivel
  • 450-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolted #304 Stainless Steel
  • Hinged Compartment Doors

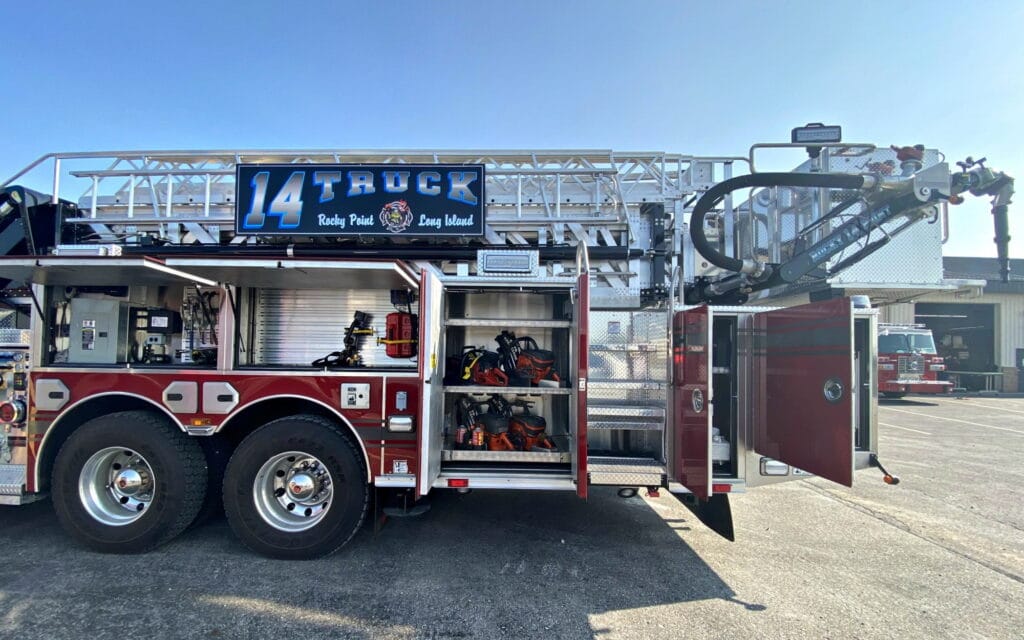

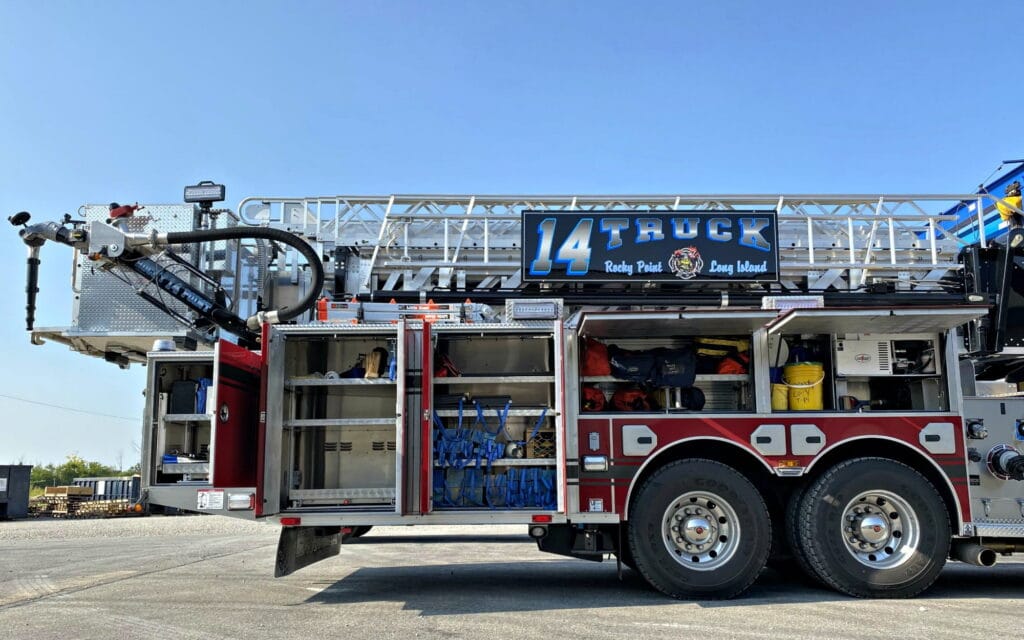

  • Over 280 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (149’: (2) 16’; 18’; (2) 24’ 2-Section; 35’ 2-section and 10’F)
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • FRC, Inview 360 Camera System
  • 10KW Smart Power Generator
  • 7 SCBA Cylinder Compartments
  • 17’ Little Giant
  • Hannay Electric Cord Reel, 175’ (1)
  • FRC Spectra 12V Brow Light
  • Whelen LED Lightbar
  • Whelen L31 LED Beacons
  • FRC Spectra 240V LED Scene Lights
  • FRC Spectra Surface Mount 12V LED Scene Lights
  • Boom Tracking Lights

MONITORS:

  • Driver Side Monitor: TFT monsoon, Manual 1250 GPM w/ Manual VUM
  • Officer Side Monitor: TFT Monsoon, Manual 1250 GPM w/ Manual VUM
  • Driver Side Nozzle: TFT MST-4NJ Stacked Tips w/ XF-SS10 Stream Straightener
  • Officer Side Nozzle: TFT MST-4NJ Stacked Tips w/ XF-SS10 Stream Straightener
