Delivery Date:
06/30/2022
Department Name:
Rochester Fire Department
Department City / State:
Rochester, NH

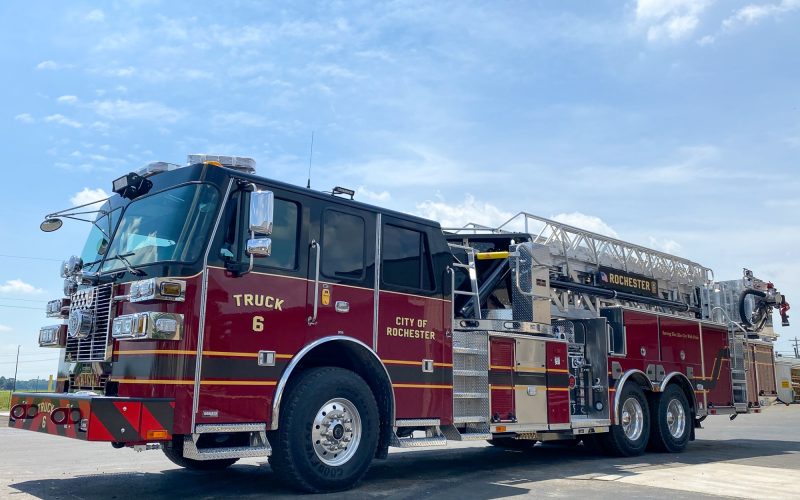

Sutphen Corporation – HS #7117

Dealer – Dingee Machine

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 11”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with Flat Roof

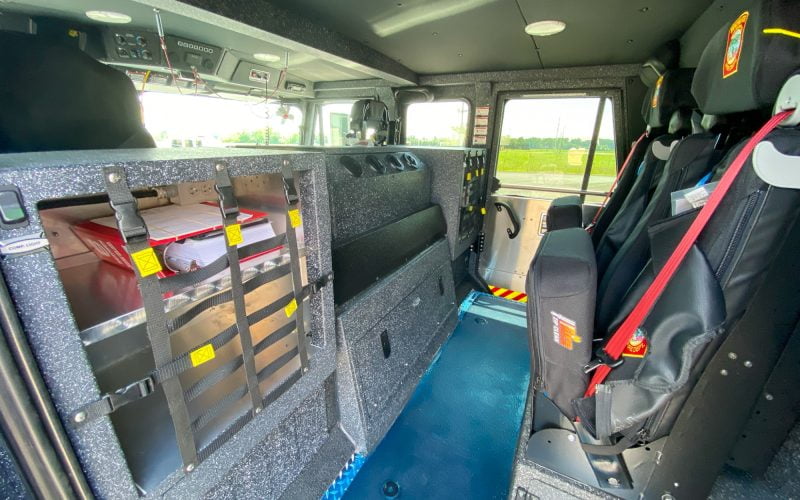

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15 600HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

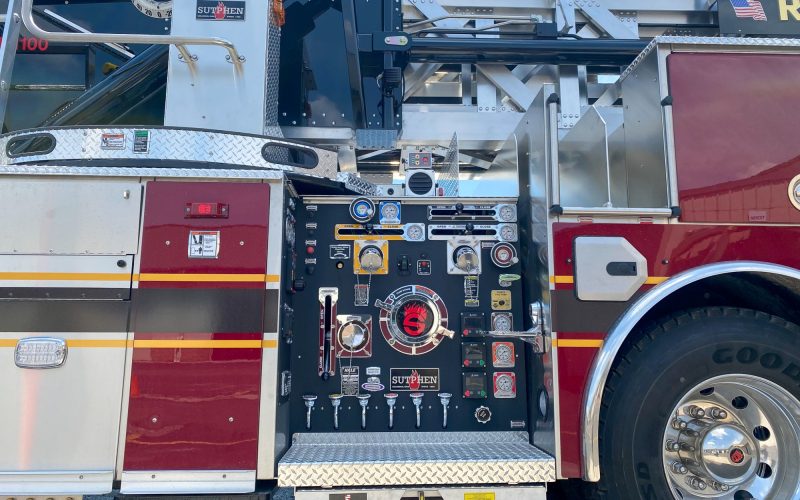

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolted #304 Stainless Steel
  • Amdor Roll-Up and Hinged Compartment Doors
  • Over 260 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 10’-20’, 16’, 24’ 2-Section, 35’ 2-Section, 10’ F, 28’ 2-section
  • Body: SPH-7, LEFT 56″ H / RIGHT 48″ H

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel, Painted, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Inview Trueview, Single Camera (Wired)
  • Intercom System: FRC ACT 3-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power, 6KW ER HYD
  • Whelen Freedom IV 23 ¼” Lightbar
  • Whelen Pioner 12V Brow Light
  • Whelen Pioneer 120V Tele Light
  • Rigid D2 Aerial Spotlights
  • FireTech 12V Mini Brow Scene Light
  • 12V FireTech Work Lights

MONITOR:

  • Driver Side Monitor: Akron 3482 Stream Master2, Manual 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3473 , Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
