Delivery Date:
02/25/2022
Department Name:
Ravenswood Fire Department
Department City / State:
Ravenswood, WV

Sutphen Corporation – HS #7013

Dealer –  Heritage Fire Equipment

WHEELBASE: 230”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 1”

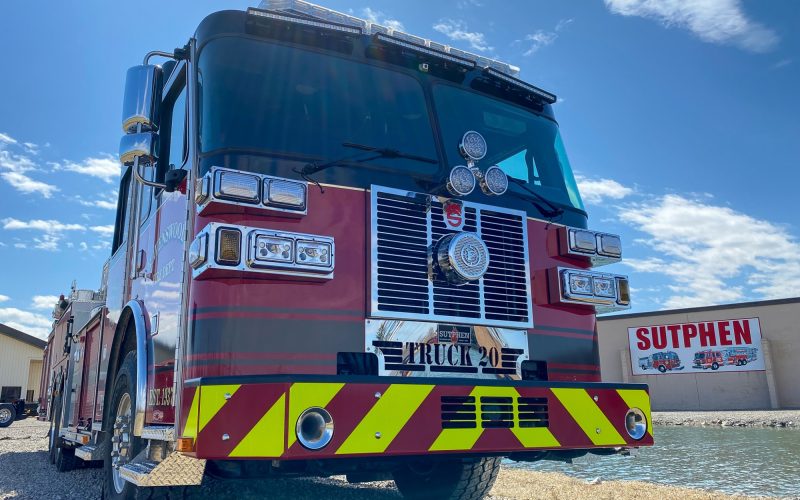

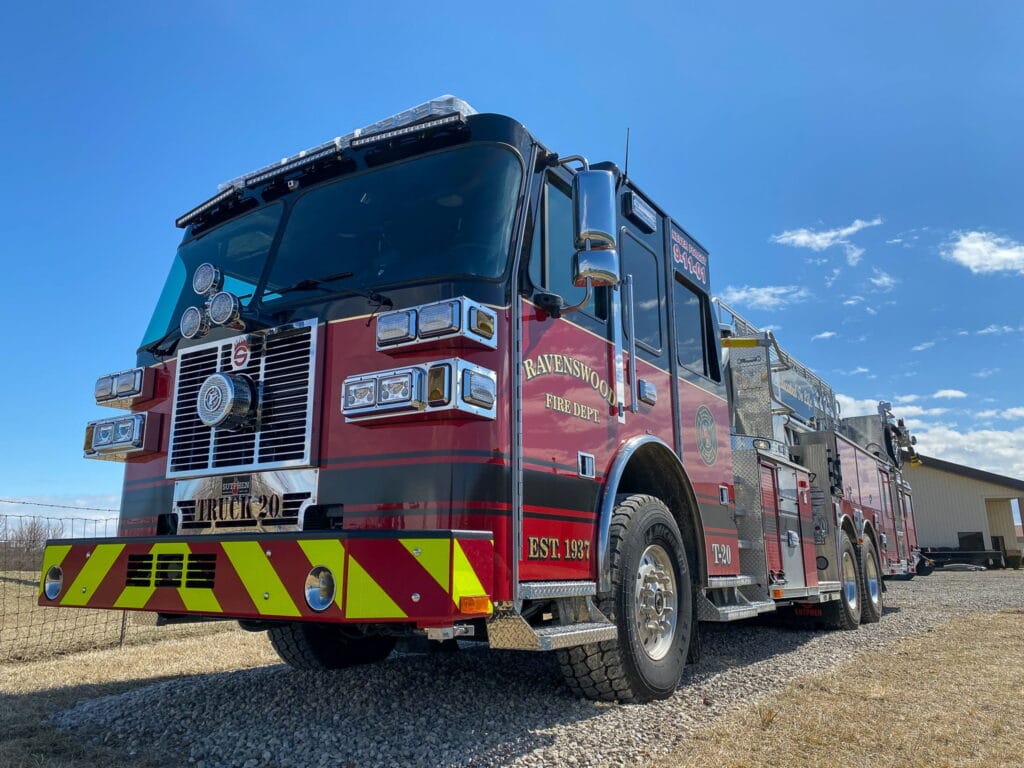

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12 500HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right
  • Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolted #304 Stainless Steel
  • SPH Mixed Roll up and Hinged Compartment Doors
  • Over 280 cu ft. Total Compartment Space

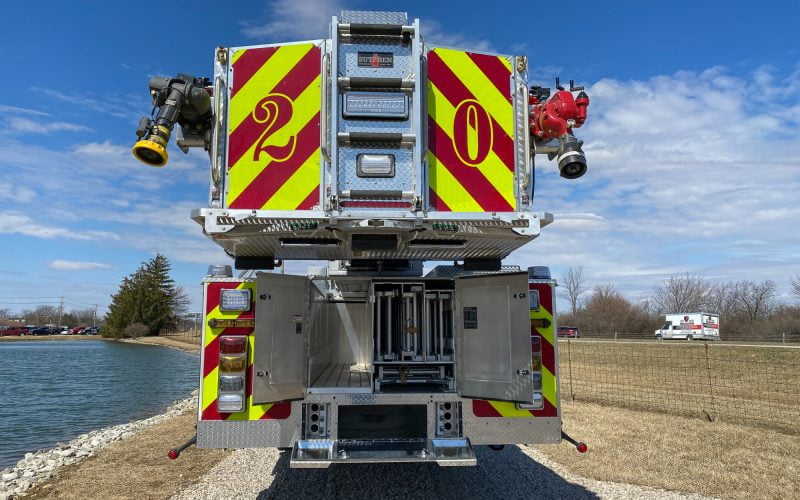

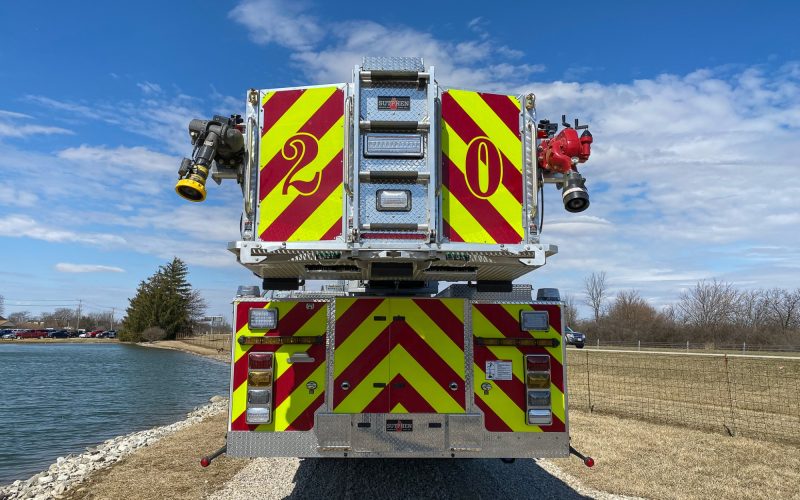

  • Duo-Safety Ladder Package: 115’
  • Body: SPH-3, LEFT 56″ H / RIGHT 56″ H

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Backeye 360 Camera System
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power, 10KW HYD
  • Whelen 72” Freedom IV LED Lightbar
  • FireTech, 72” 3-Piece 12V LED Brow
  • 12V Spectra Scene Light
  • FireTech 12V Scene Light
  • FR Spectra 240V Tele Lights

MONITOR:

  • Driver Side Monitor: Elkhart Cobra EXM 1250 GPM w/ Elkhart SM-1250E w/ 248A Stream Shaper
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 5160 Auto
