Delivery Date:
04/12/2019
Department Name:
Plain Township Fire Department
Department City / State:
New Albany, OH

Sutphen Corporation – HS #6352

Dealer – Heritage Fire Equipment

WHEEL BASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’ – 4”

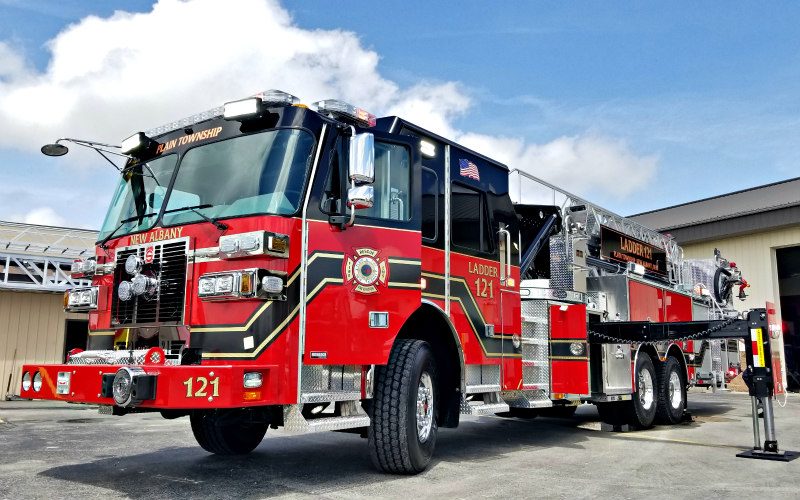

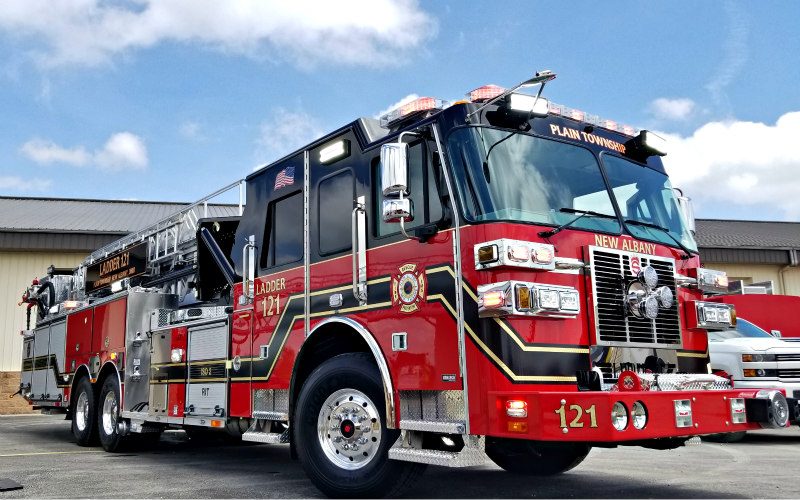

CHASSIS:          Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

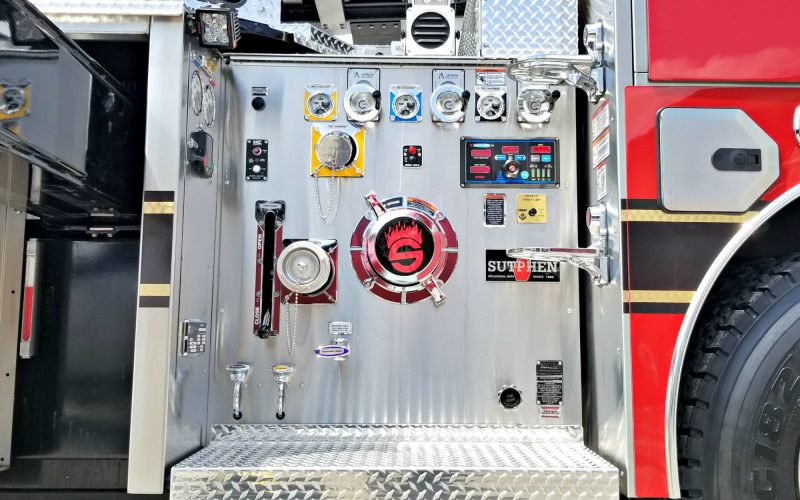

PUMP:                 Hale

  • QMAX-1750 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (2) 2 ½” Right
  • Crosslay: 2 ½” Crosslay Storage Compartment
  • Akron Brass 3480 Stream Master Monitors and Nozzles
  • No Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Mixed Compartment Doors – Hinged and Amdor Roll-Up Compartment Doors
  • Over 283 cu. ft. of Compartment Space
  • Duo-Safety Ladder Package (2) 16’ Roof, (3) 24’ 2-Section, (2) 28’ 2-Section and (1) 35’ 2-Section
  • Ladder Chute with Rollers to Hold Full Compliment of Ladders
  • SPH-3, Left 56” High, Right 56” High

ADDITIONAL EQUIPMENT:

  • 18” Stainless Steel Bumper Extension, 2” Raised Lid, & Center Only Storage Well for Electric Reel
  • Federal Q2B Siren, Bumper Mounted
  • 20KW Smartpower Generator
  • (6) Pike Pole Storage
  • (1) Hannay Electric Cord Reel, 150’
  • Whelen 295HFSA7 Electric Siren
  • Whelen M6 LED Warning Lights
  • Whelen Traffic Advisor, LED, TAL85 22” 2-Piece
  • Whelen Freeddom IV 72” LED Lightbar
  • (4) Whelen Mini Freedom IV 21” LED Light Bars
  • (1) FRC Spectra 12V LED Brow
  • (5) FRC Spectra Surface Mounted Lights
  • FRC Inview 360, Camera System
