Delivery Date:
12/22/2021
Department Name:
Palm Bay Fire Rescue
Department City / State:
City of Palm Bay, FL

Sutphen Corporation – HS #6810

Dealer – South Florida Emergency Vehicles

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 10” Raised Roof

  • Four-Door, Seven-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12 500HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

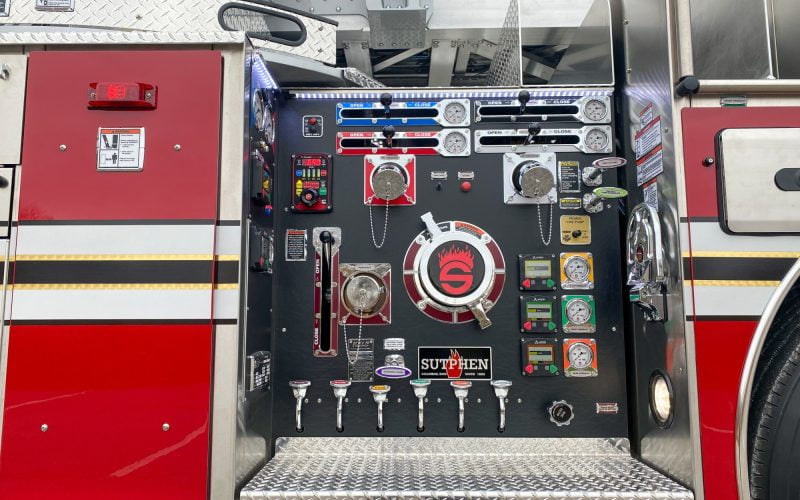

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • HuckBolted #304 Stainless Steel
  • SPH Mixed Roll up and Hinged Compartment Doors
  • Alco-Lite Ladder Package – 115’: 14’, 16’, 16’, 24’ 2 Section, 35’ 2 Section, & 10’ Folding
  • Body: SPH-3, LEFT 56″ H / RIGHT 56″ H

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade 360 Camera Aerial
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power 6KW
  • Whelen Freedom IV 72” LED Lightbar
  • Whelen TAL85 Traffic Advisor
  • Whelen PCPSM1 120V Scene Light
  • Whelen 900 12V Scene Light
  • Whelen PFH2 12V LED Brow
  • Whelen PFP2 120V Tele

MONITOR:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 5160 Auto
