Delivery Date:
03/17/2021
Department Name:
Owen Sound Fire Department
Department City / State:
Owen Sound, Canada

Sutphen Corporation – HS #6708

Dealer – Fort Garry Fire Trucks

WHEELBASE: 230”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’

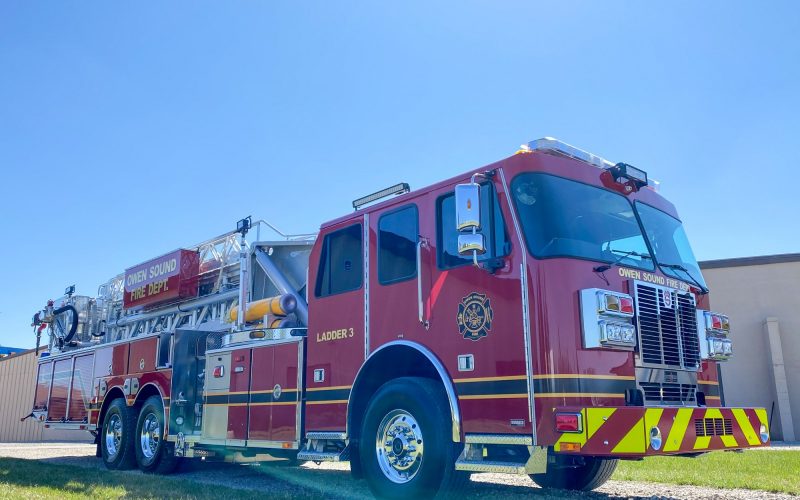

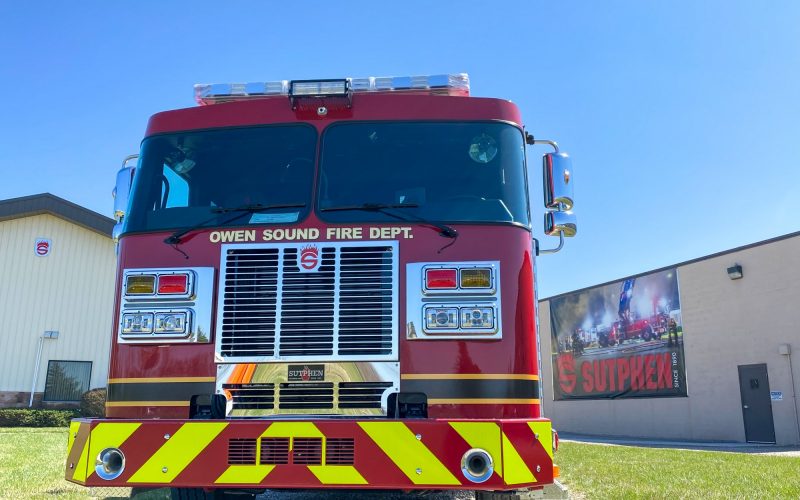

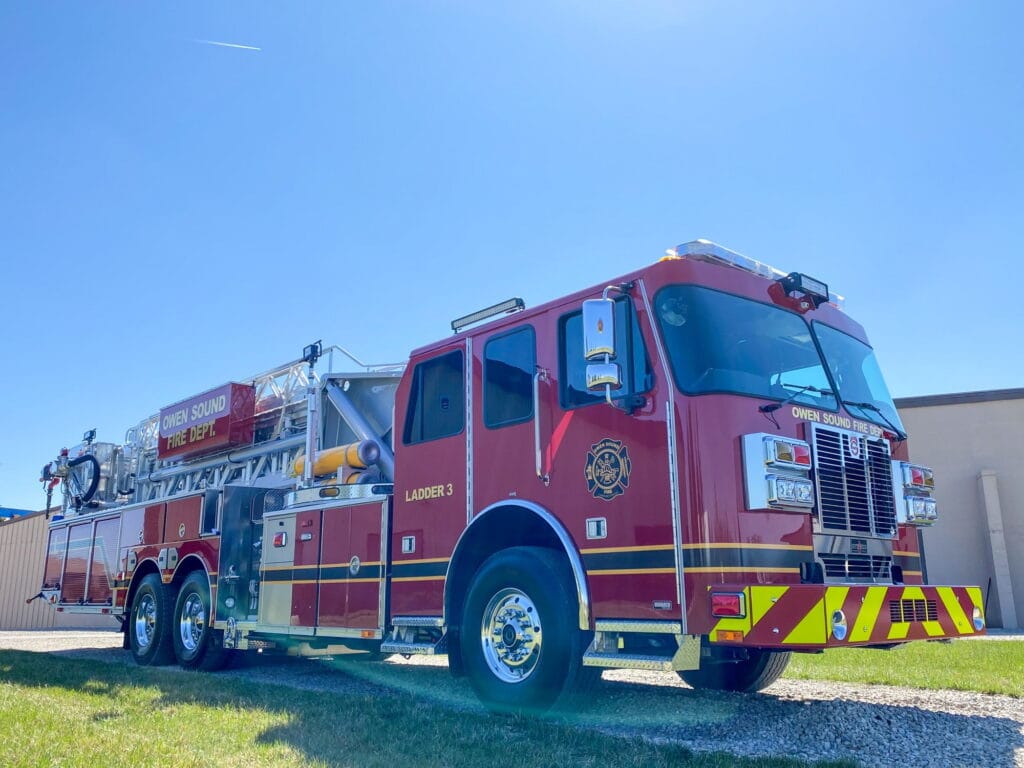

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a Flat Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

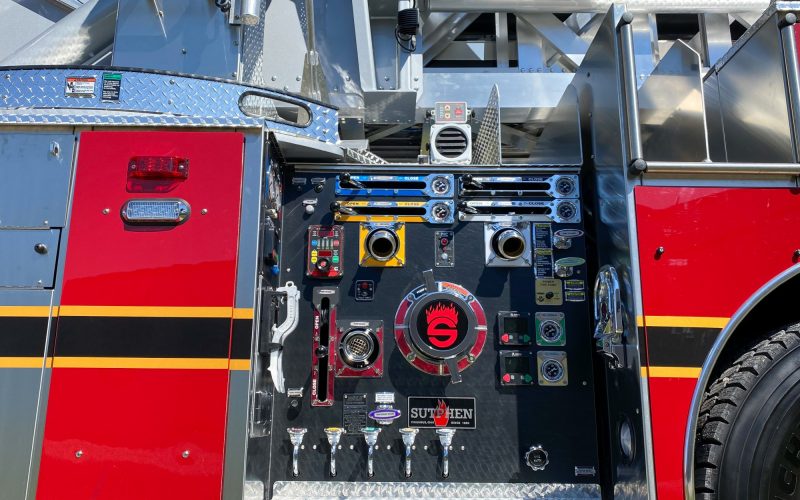

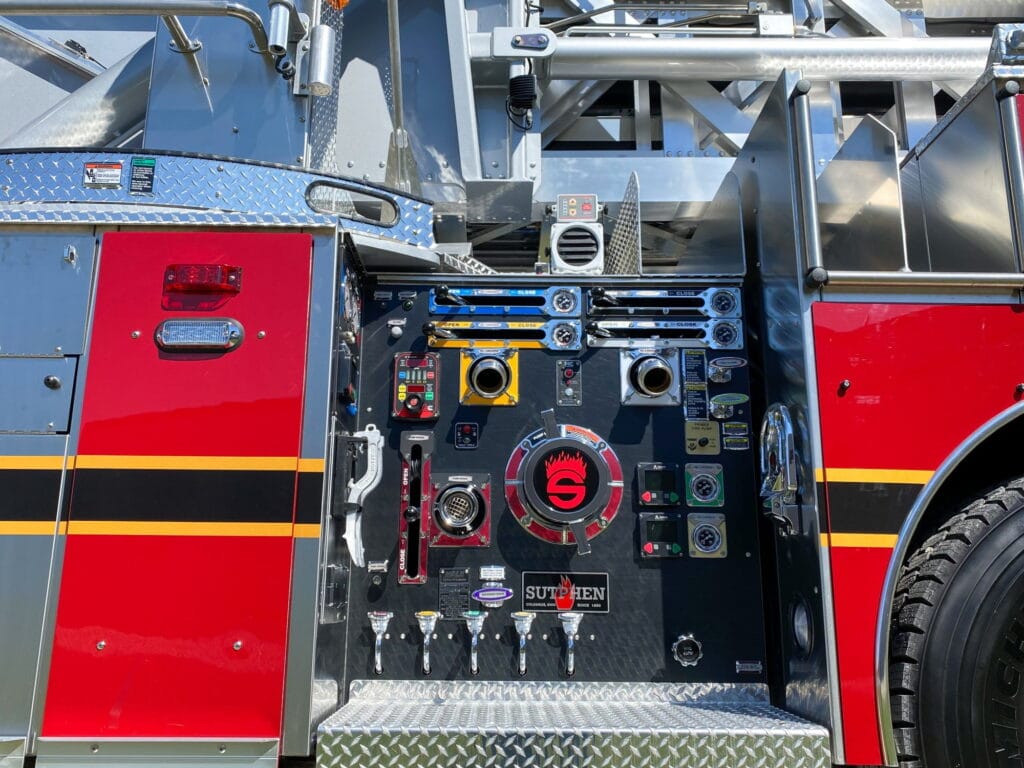

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslays: (2) 2” Crosslays Valve-Piping w/ 1 ½” Swivel
  • 300-Gallon Water Tank

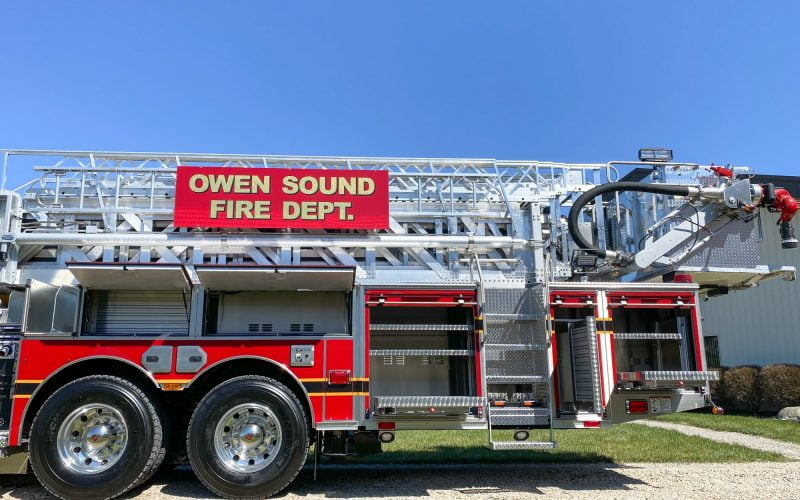

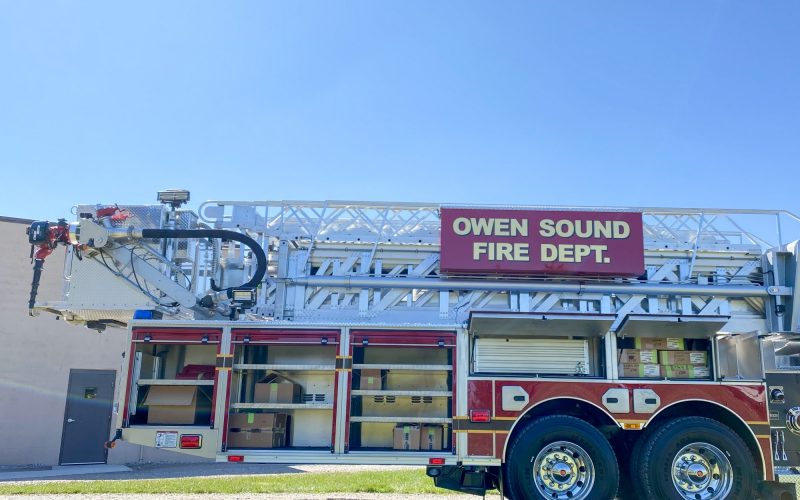

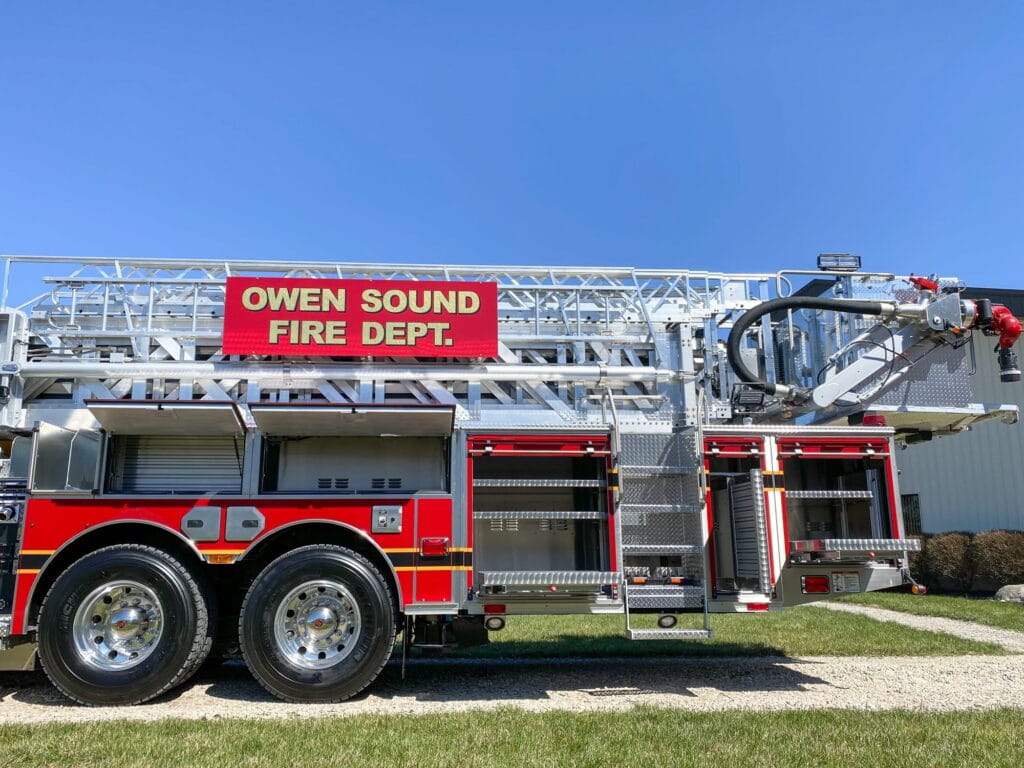

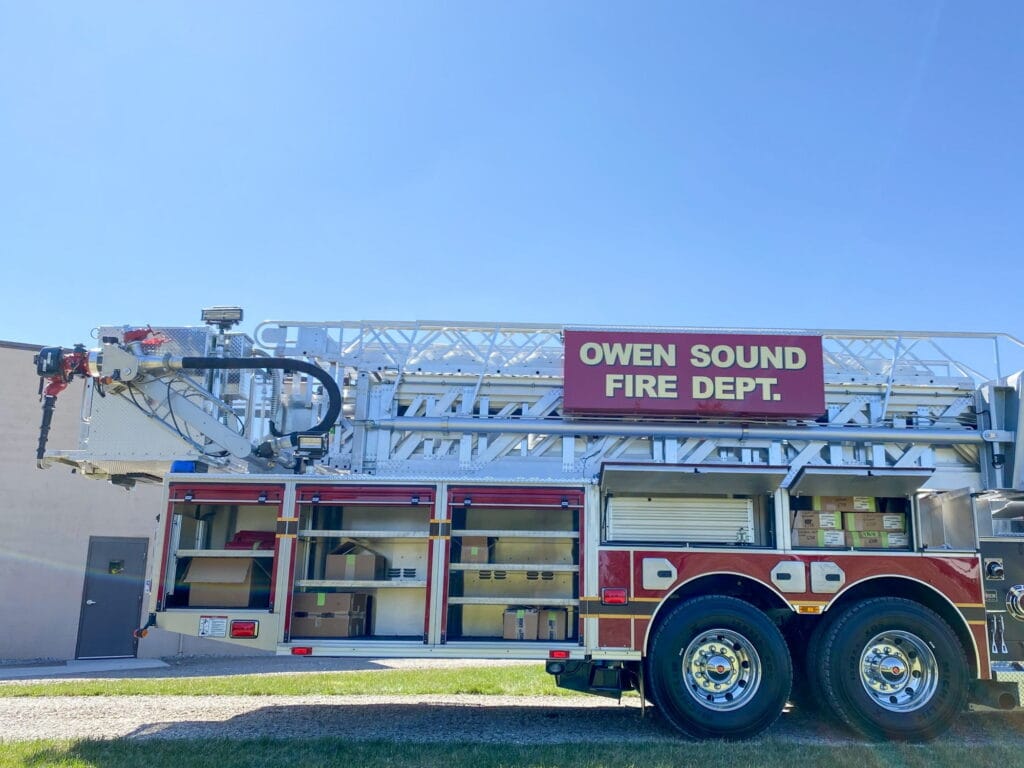

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Mixed Roll-Up and Hinged Compartment Doors
  • Nearly 250 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package (115’: 14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ F)
  • Body: SPH-1, Left 48” H / Right 48” H

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Channel Bumper Extension
  • Generator: Honda EU2200I
  • Camera System: Brigade Backeye 360
  • Intercom System, FRC ACT 3-Station
  • Whelen Freedom 72”Lightbar (8 Module)
  • Whelen Pioneer 12V Brow Light
  • Whelen PFP1AC 120V Tele
  • Whelen TAL85 Traffic Advisor
  • FireTech 12V Scene Light

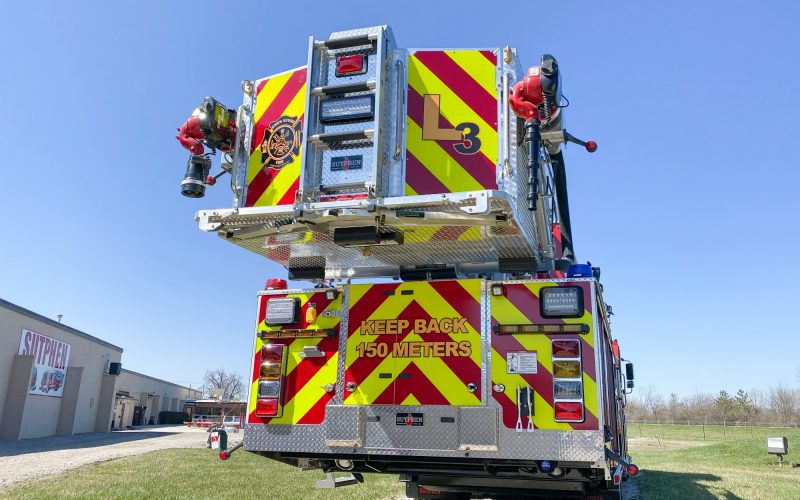

MONITORS:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM
  • Driver Side Nozzle: Akron 2499 & 3488 Pipe
  • Officer Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
