Delivery Date:
10/20/2022
Department Name:

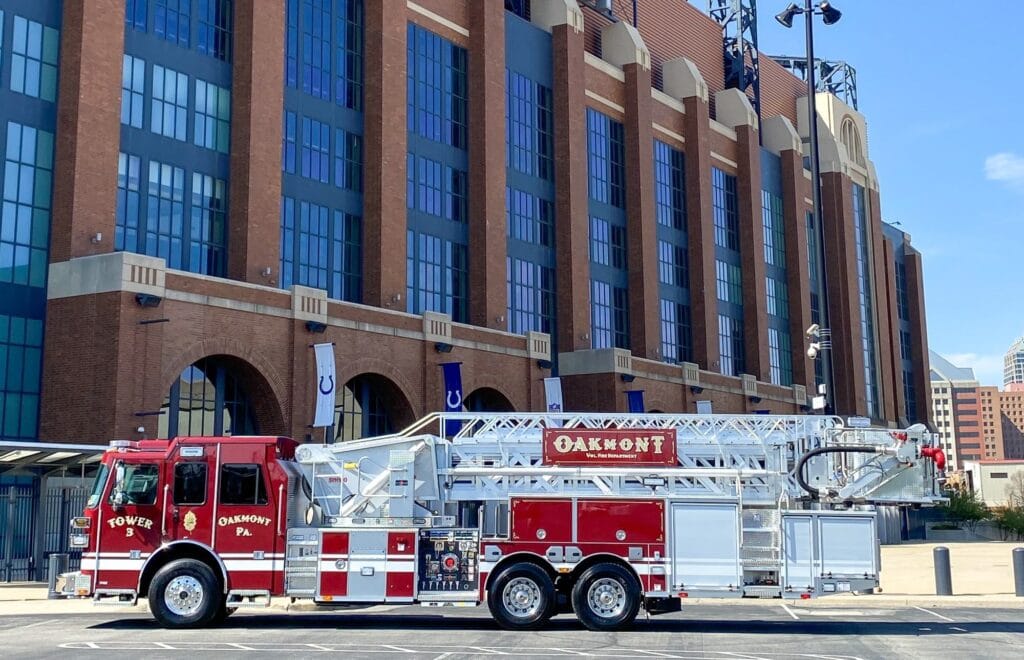

Oakmont Fire Department
Department City / State:
Pittsburgh, PA

Dealer – FAST of the Allegheny Mountains

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12 500 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right,
  • Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel and (2) 2” Crosslays 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolted #304 Stainless Steel
  • Mixed AMDOR Roll-Up and Hinged Compartment Doors
  • Over 280 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (115’: 14’, (2) 16’, 24’ 2-Section, 35’ 2-Section, & 10’ Folding)
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless-Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Generator: Smart Power 10KW
  • Hannay Electric Cord Reel, 150’ (1)
  • Camera System: FRC, Inview Trueview, Two Cameras
  • Intercom System: FRC ACT 2-Station
  • Pike Pole Storage Tubes, 3 Each Side
  • Whelen Freedom IV 72” Lightbar
  • Whelen L31 Beacons
  • Whelen 600 Warning Light
  • 12V Spectra Brow Light
  • 12V Spectra Scene Light
  • 240V FR Spectra Tele Lights
  • FireTech Aerial Spotlights

MONITOR:

  • DS Monitor: Akron 3482 Stream Master2, Electric 1250 GPM w/ Akron 5177
  • DS Nozzle: Akron 5160 Auto
  • OS Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • OS Nozzle: Akron 2499 & 3488 Pipe
