Delivery Date:
07/29/2022
Department Name:
Middletown Division of Fire
Department City / State:
Middletown, Ohio

Sutphen Corporation – HS #7186

Dealer – Heritage Fire Equipment

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 47’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Flat Cab

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

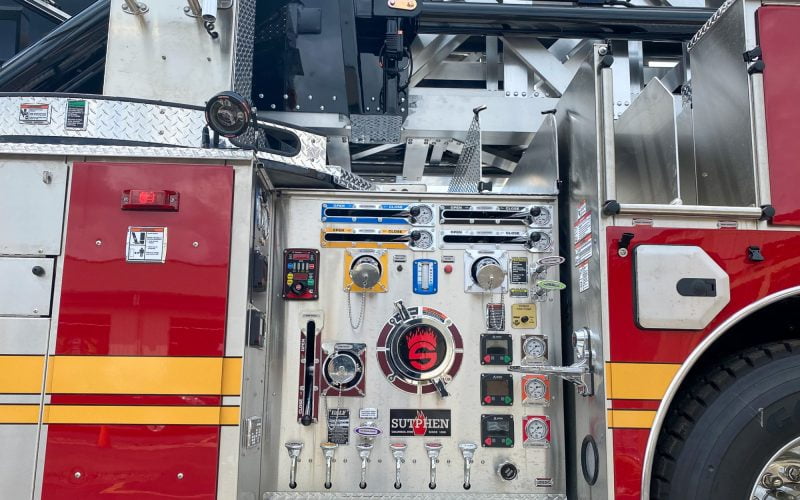

PUMP:                 Hale

  • QMAX-1500 GPM 6” Suction, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslays: (1) 2 ½” Crosslays, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • Hinged Compartment Doors, Aluminum
  • Over 283 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: (2) 16’, (1) 24’ 2-section, (1) 35’ 3-section, (1) 10’ Folding
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC ACT 2-Station
  • Camera System: Pro-Vision (6)
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: 10KW ER HYD
  • Whelen Freedom IV 72” Lightbar
  • Tomar 3065 Traffic Emitter
  • FR Spectra 12V Brow Light
  • FR Spectra 240V Scene Light
  • FR Spectra 240V Tele Lights
  • FireTech Aerial Spotlights
  • FireTech Laser Cannon Outrigger Spotlights

MONITOR:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
