Dealer – Williams Fire Apparatus
WHEELBASE: 247”
TRAVEL HEIGHT: 11’ – 6”
TRAVEL LENGTH: 47’ – 11”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ a 10-Inch Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 52,000 lbs
- Engine: Cummins X 12, 500HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4500

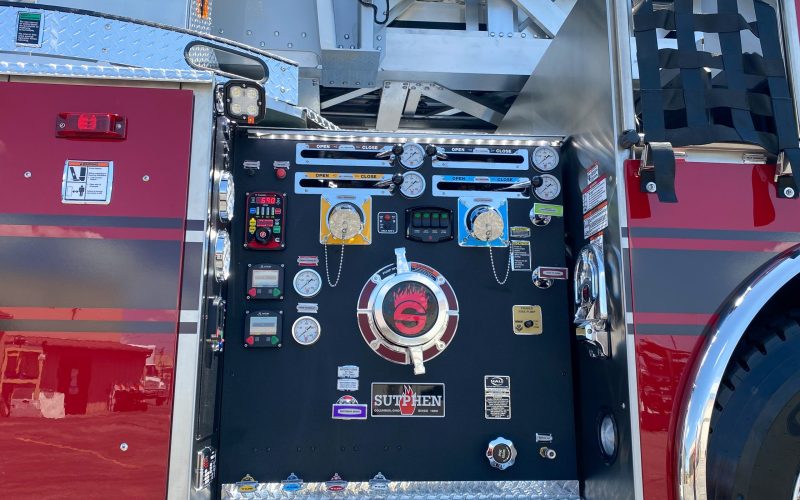

PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
- Crosslays: (2) 2” Crosslay Valve-Piping w/ 1 ½” Swivel
- 300-Gallon Water Tank
BODY: Sutphen
- Huckbolt #304 Stainless Steel
- Mixed Roll Up and Hinged Compartment Doors
- Duo-Safety Ladder Package: 14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ F
- Body: SPH-3, Left 56” H / Right 56” H
ADDITIONAL EQUIPMENT:
- 12” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Intercom System: FRC, Act 2-Station
- Hannay Electric Cord Reel, 150’ (1)
- Generator: Smart Power, 6KW
- Camera System: FRC Inview 360HD w/ Built-In DVR
- Whelen Freedom IV 72” Light Bar
- Whelen M9V2 Warning/Scene Light
- 12V FireTech 3-Piece Brow Light
- 12V FireTech Outrigger Spotlights
MONITOR:
- Driver Side Monitor: Akron 3483 Stream Master2, Manual, 1250 GPM
- Driver Side Nozzle: Akron 5160 Auto
- Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
- Officer Side Nozzle: Akron 2499 & 3488 Pipe
