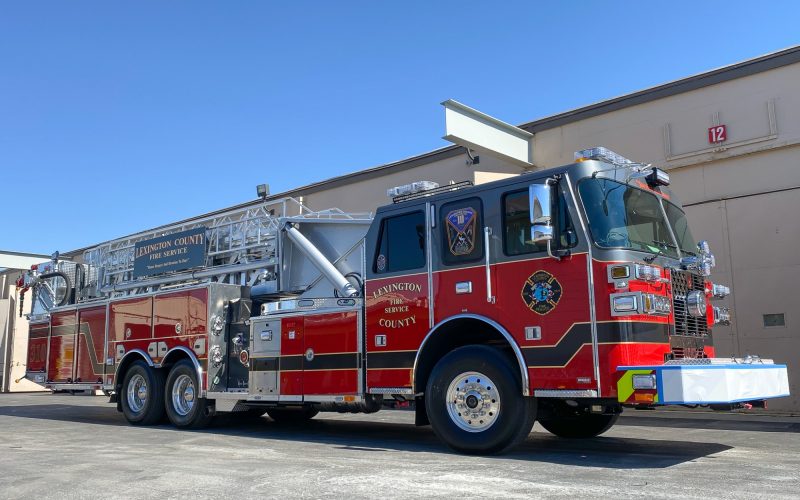

Department Name:
Lexington County Fire Services
Department City / State:
Lexington, SC

Sutphen Corporation – HS #7319

Dealer – Williams Fire Apparatus

WHEELBASE: 230”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 47’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab w/ a Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 455HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper
  • Crosslays: (1) 2 ½” Crosslay w/ 2 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • Mixed Roll Up and Hinged Compartment Doors
  • Over 280 cu ft. Total Compartment Space
  • Alco-Lite Ladder Package: (2) 28’ 2-Section, (1) 16’ Roof, (1) 20’ Roof, 10’ Folding, 35’ 2-Section, 8’ VES
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC, Act 2-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Honda, 3000 Watt Portable
  • Camera System: Voyager2 System
  • Roto-Ray Warning Light
  • Whelen Freedom IV 72” Rota-Beam Lightbar
  • 12V FR Spectra Brow Light
  • 120V FR Spectra Tele Light
  • 12V FireTech Outrigger Spotlights
  • 12V FireTech Mini-Brow Scene Light

MONITOR:

  • Driver Side Monitor: Akron 3483 Stream Master2, Manual, 1250 GPM
  • Driver Side Nozzle: Akron 5160 Auto
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
