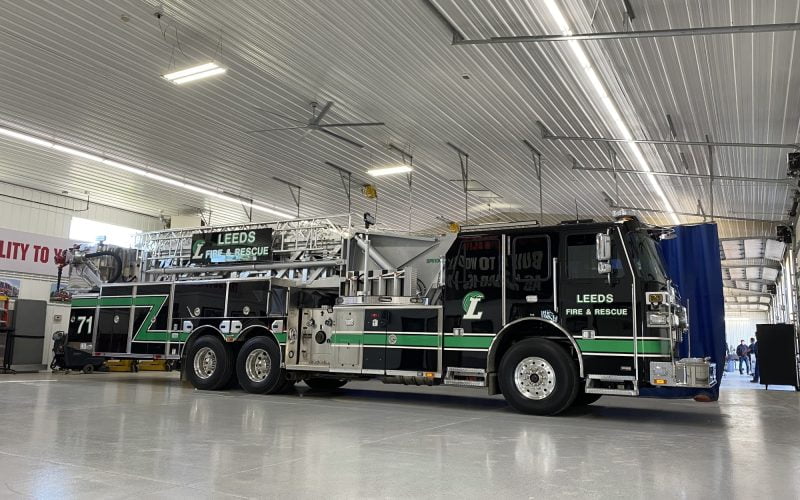

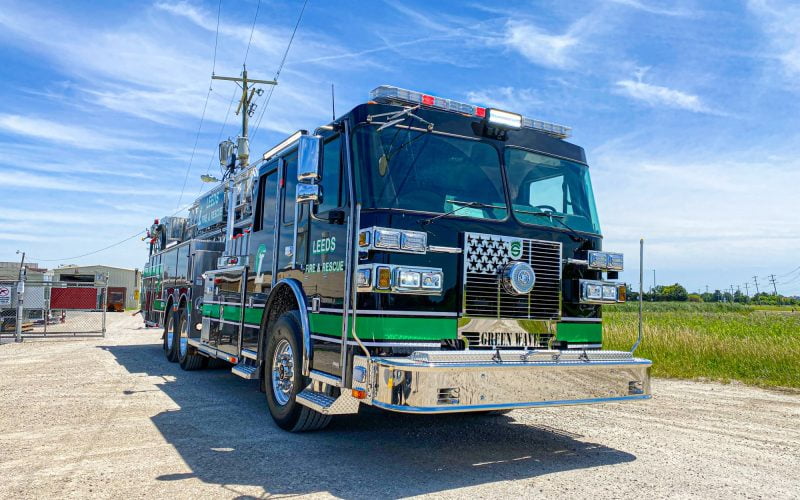

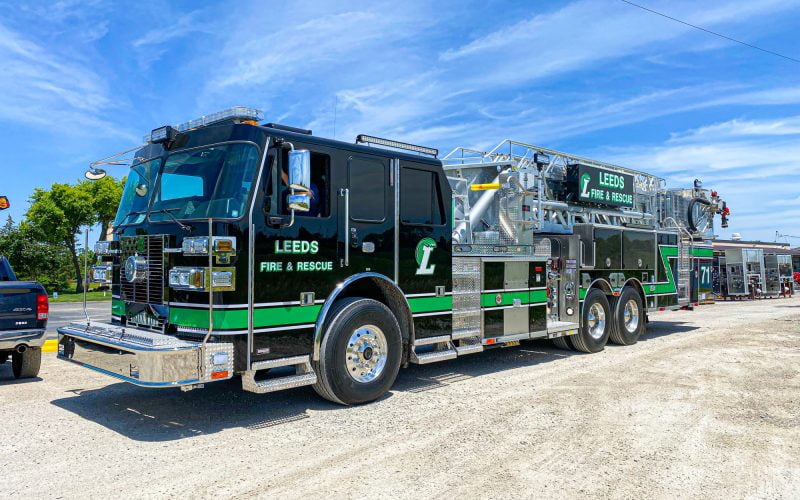

Delivery Date:
05/16/2022
Department Name:
Leeds Fire Department
Department City / State:
Leeds, AL

Sutphen Corporation – HS #7099

Dealer – Williams Fire Apparatus

WHEELBASE: 230”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 7”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15 600HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4500R w/ Retarder

PUMP:                  Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) ½” Front Bumper
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Foam System: Hale Smartfoam 2.1A

BODY:                   Sutphen

  • Huckbolted #304 Stainless Steel
  • Hinged Compartment Doors
  • Over 283 cu ft. Total Compartment Space
  • Alco-Lite Ladder Package: 14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section, 10’ F, 16’ R
  • Body: SPH-3, LEFT 56″ H / RIGHT 56″ H

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Pro Vision 360
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power, 10KW ER HYD
  • Whelen Freedom IV 81” Lightbar
  • FRC Spectra 12V Brow Light
  • FRC Spectra 240V Tele Light
  • FireTech Aerial Spotlights
  • FireTech 12V Scene Light
  • FireTech 12V Work Lights

MONITOR:

  • Driver Side Monitor: Akron 3482 Stream Master2, Manual 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Driver Side Nozzle: Akron #3488 Streamshaper w/ #2499 Stacked Tips
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
