Delivery Date:
08/29/2020
Department Name:
LaVale Fire Department
Department City / State:
LaVale, Maryland

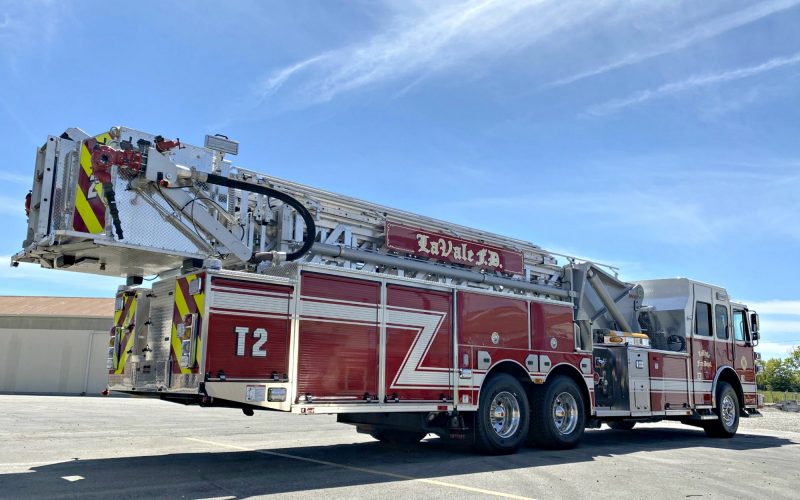

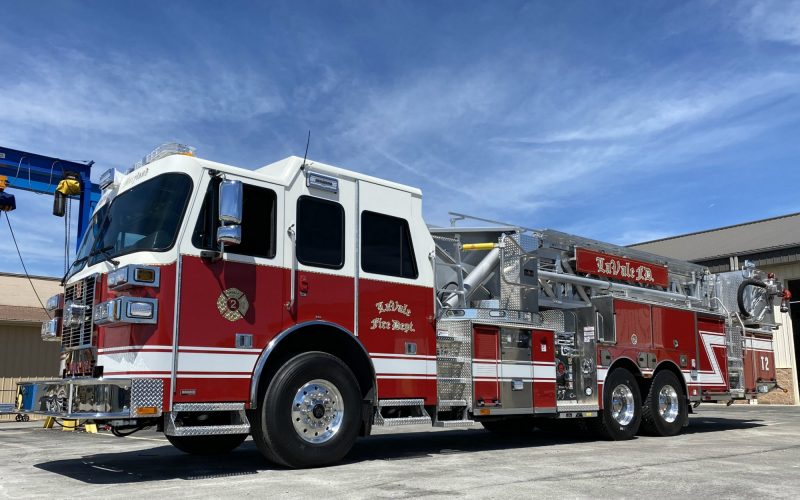

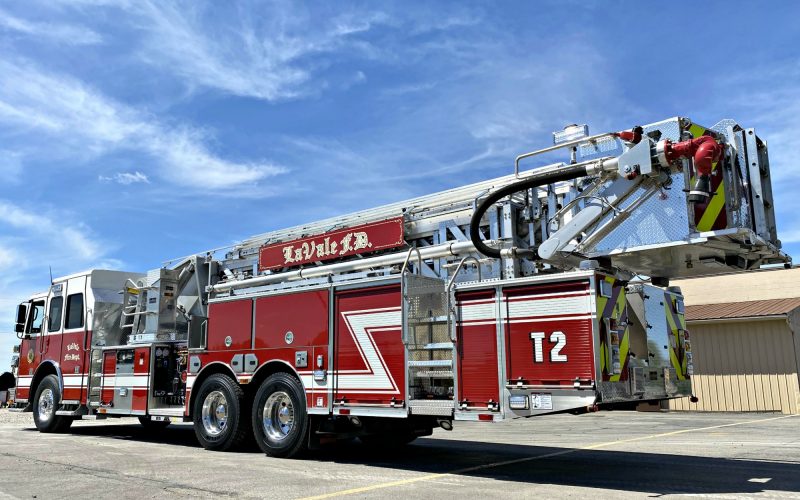

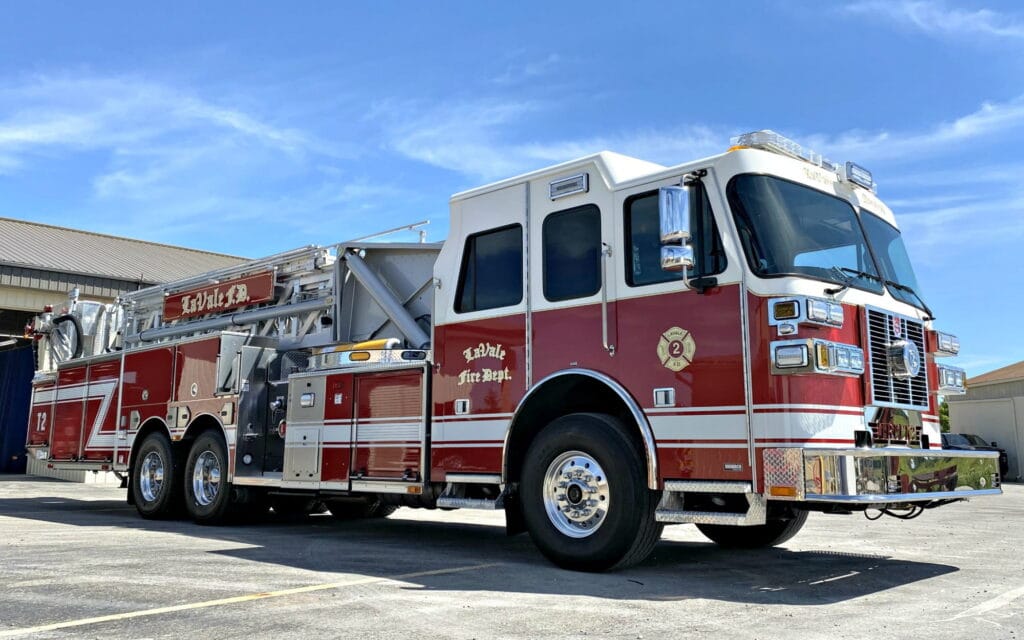

Sutphen Corporation – HS #6643

Dealer – FAST of the Allegheny Mountains

WHEELBASE: 236”

TRAVEL HEIGHT: 11’

TRAVEL LENGTH: 46’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

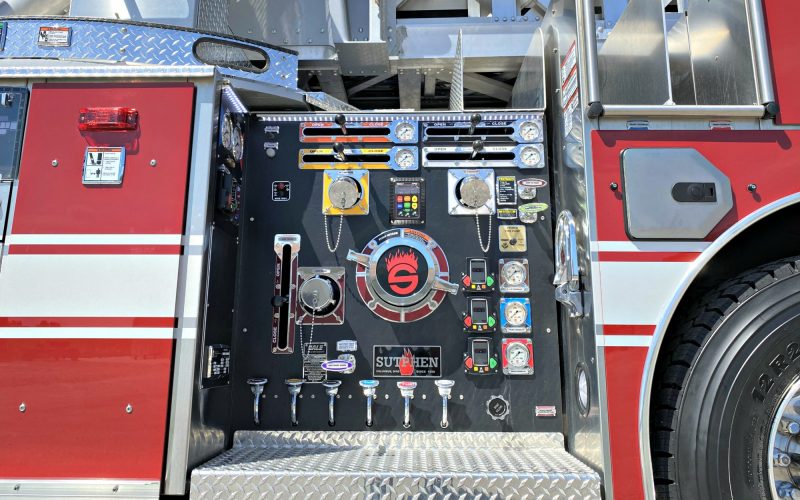

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslays: (1) 2 ½” w/ 2 ½” Swivel, (2) 2” w. 1 ½” Swivel
  • 300-Gallon Water Tank

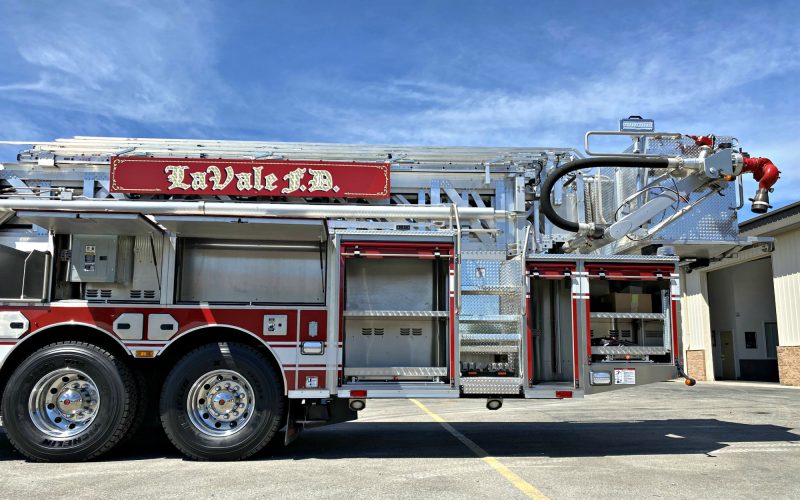

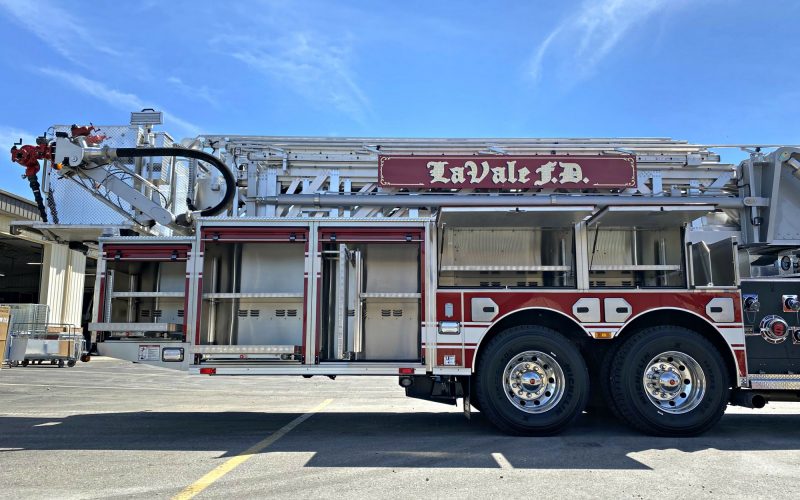

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Doors
  • Over 280 cu. ft. Total Compartment Space
  • Alco-Lite (115’: 14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ Folding)
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper Extension
  • Camera System, Inview TrueView, FRC
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150’ (1)
  • HAAS HA-5 Safety Alerting System
  • Generator: Smart Power 10KW
  • Roto-Ray Warning Light
  • Whelen Freedom IV 72” LED Lightbar
  • FR Spectra LED Brow
  • FR Spectra 12V Scene
  • FR Spectra 240V Tele

MONITORS:

  • Driver Side: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side: Akron 3483 Stream Master2, Manual 1250 GPM
