More Recent Deliveries

Delivery Date:
11/16/2018
Department Name:
Lakewood Fire Department
Department City / State:
Lakewood, NY

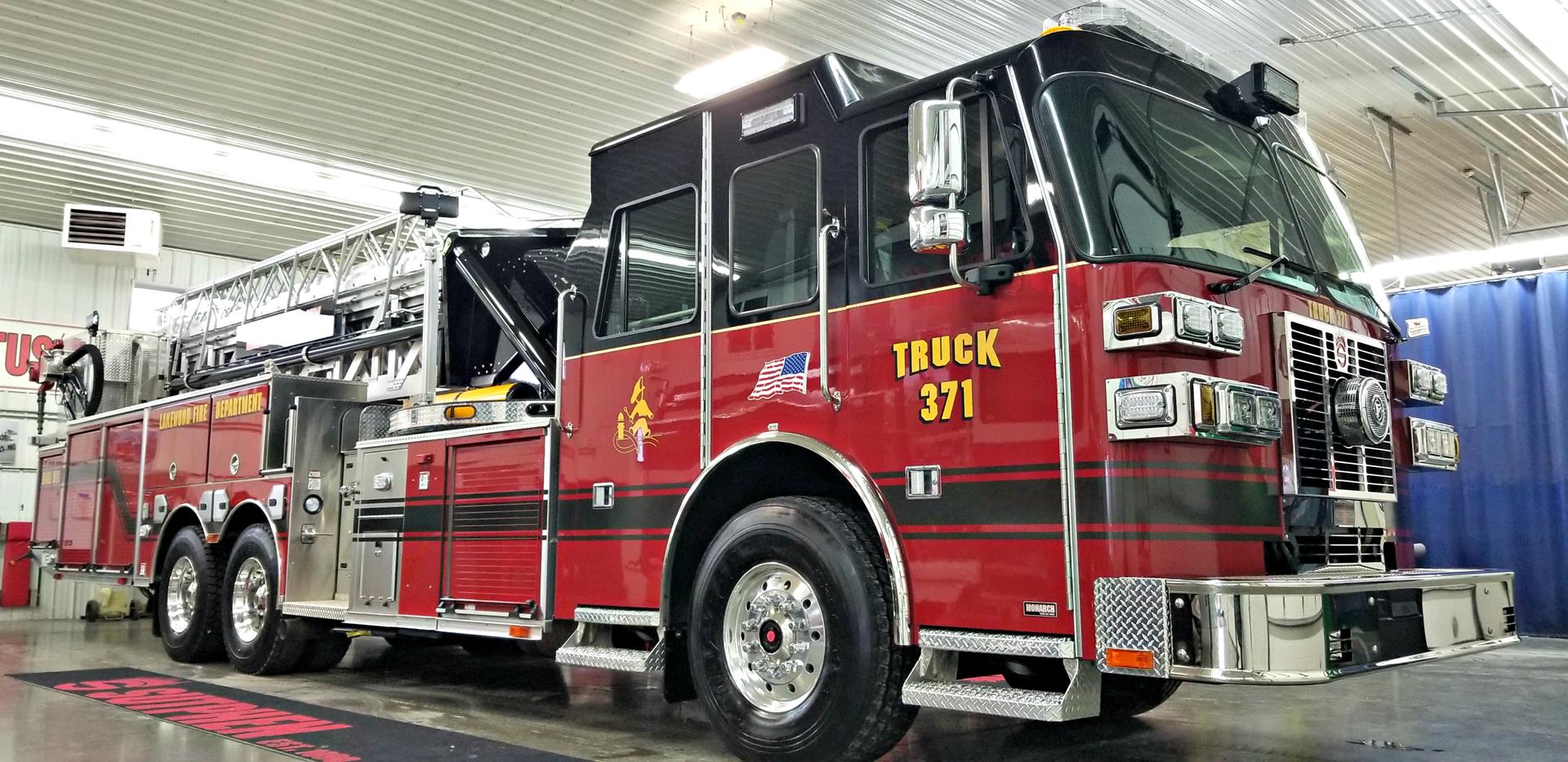

Sutphen Corporation – HS #6185

Dealer – Herb Fire Equipment

WHEEL BASE: 236”

TRAVEL HEIGHT: 11’-6”

TRAVEL LENGTH: 46’-7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins ISX12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-2,000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslays: (1) 2 ½”, 2 ½” Swivel and (2) 2” Crosslays with 1 ½” swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Left High, Right High
  • ROM Roll-Up Compartment Doors
  • 293 cu. ft. Total Compartment Space
  • Alco-Lite 115’ (14’, 16’, 16’, 24’ 2-section, 35’ 2-section and 10’ F

OPTIONAL EQUIPMENT:

  • 12” Bumper Extension
  • Buckeye 360 Camera System
  • Harrison, 10 KW Generator
  • Hannay Electric Cord Reel, 200’ (1)
  • Pike Pole Storage Tubes (3)
  • Federal Q2B Siren
  • Parapet Ladder, SPH100

MONITOR:

  • Monitor: Driver Side, Akron 3480 Stream Master2, 2,000 GPM with 5178 Nozzle
  • Monitor: Officer Side, Akron 3483 Stream Master2, Manual 1250 GPM
  • Nozzle: Officer Side, Akron 2499 and 3488 Pipe
