Delivery Date:
04/20/2021
Department Name:
Lake Ozark Fire Protection District
Department City / State:
Lake Ozark, MO

Sutphen Corporation – HS #6763

Dealer – Cashion Fire Equipment

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 47’

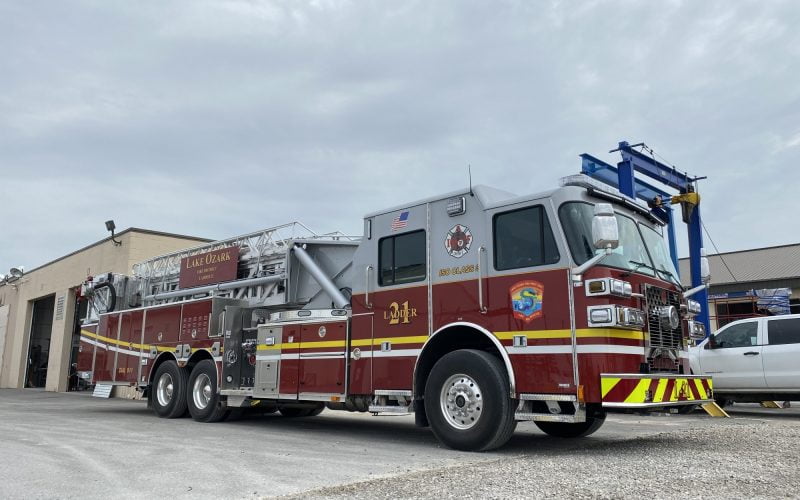

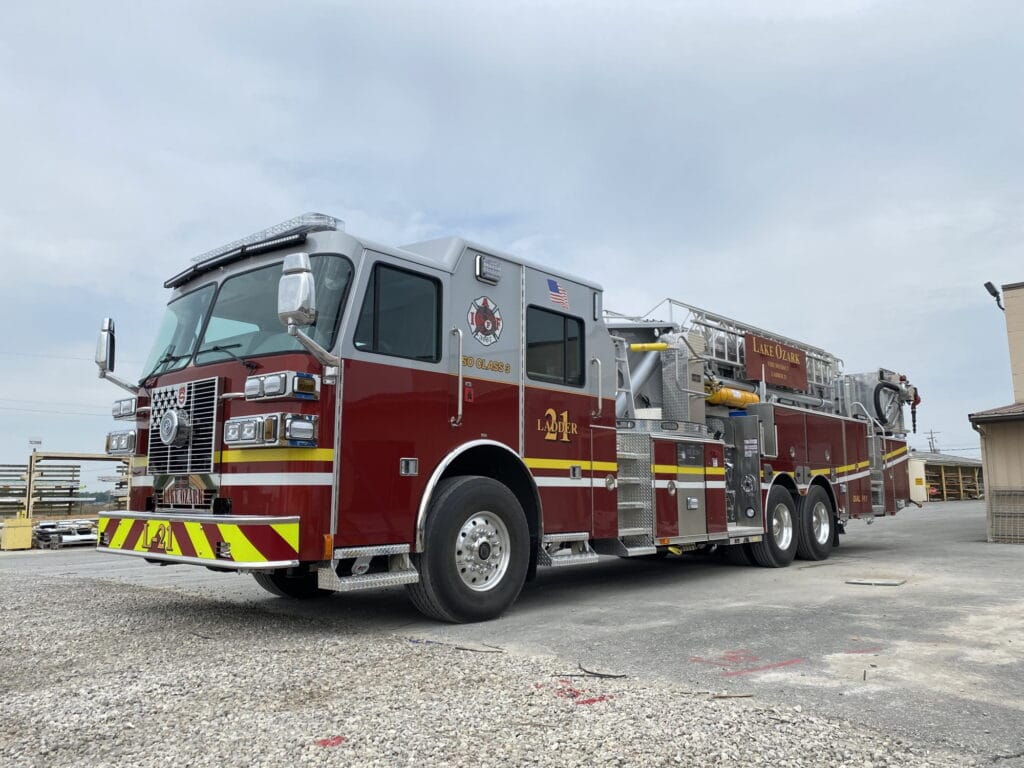

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15 600HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison EVS4500

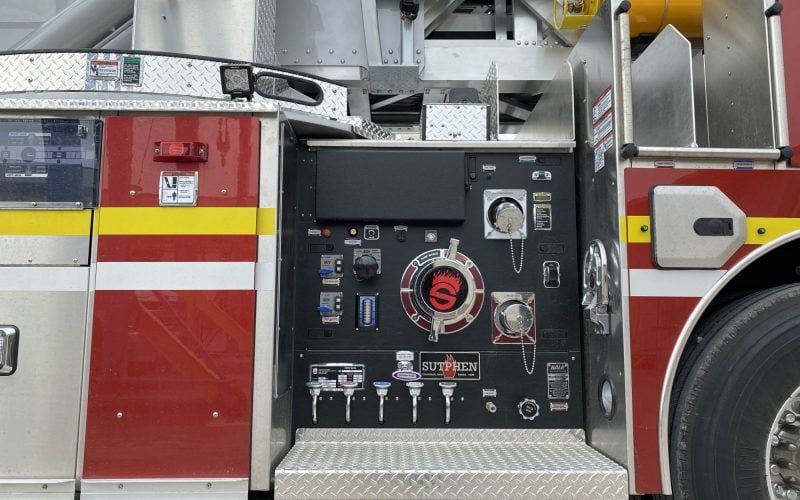

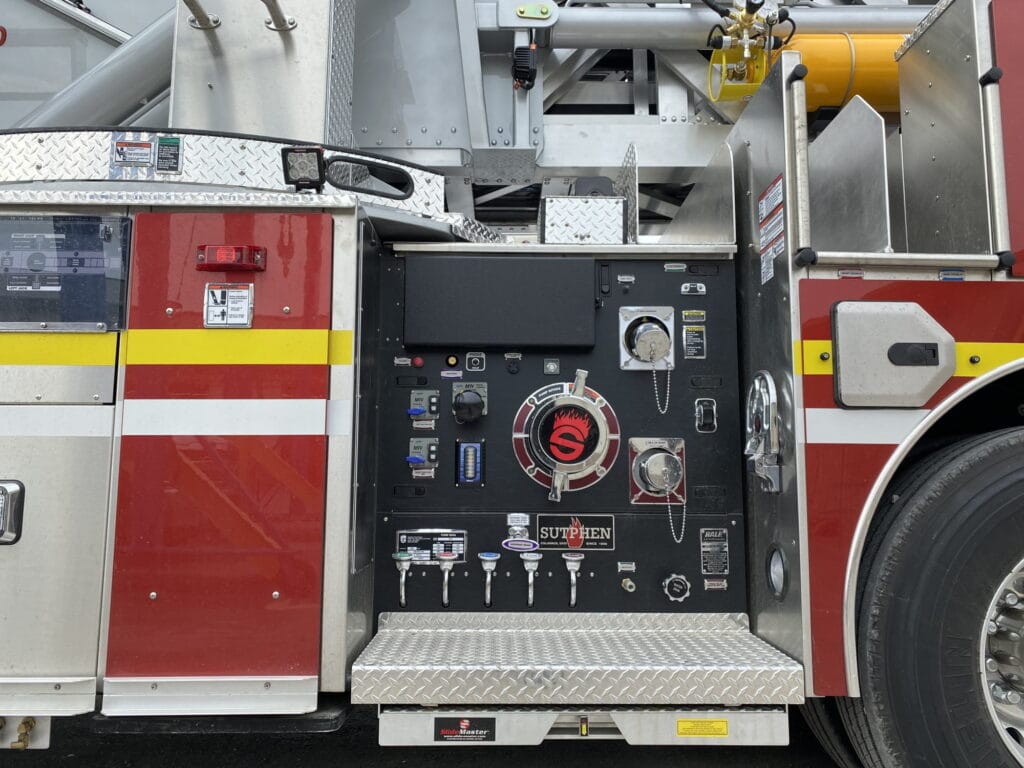

PUMP:                  Hale

  • QMAX-2000 GPM 6” Suction, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 4” Right, (2) 2 ½” Right
  • Crosslay: (1) 2 ½”, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 400-Gallon Water Tank

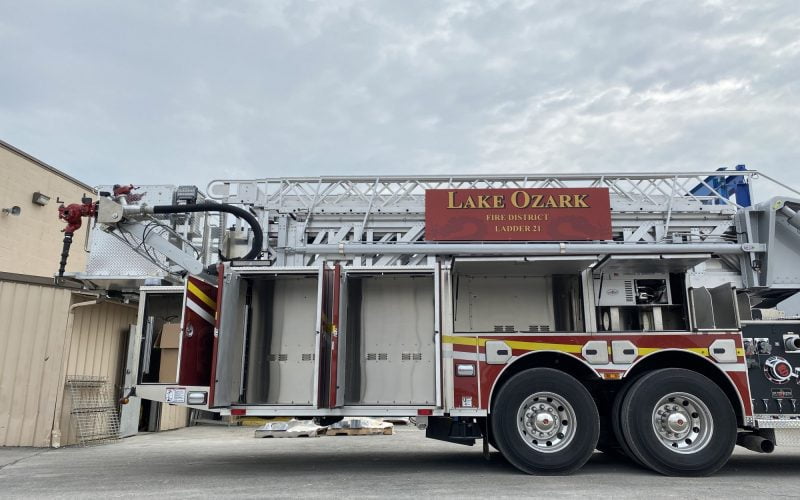

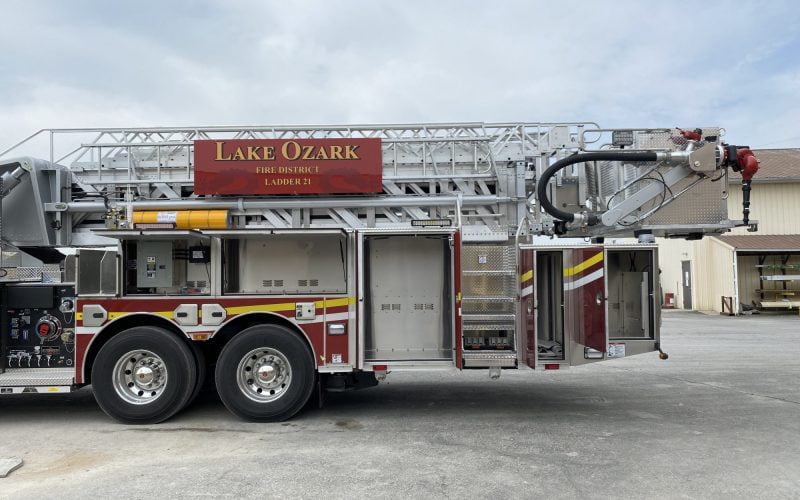

BODY:                   Sutphen

  • Hinged Compartment Doors
  • 287 cu. ft. Total Compartment Space
  • Duo-Safety (Aerials): 119’ 14’, 16’, 16’, 28’-2Sec, 35’-2Sec & 10’F
  • Body: SPH-3, LEFT 56″ H / RIGHT 56″H

ADDITIONAL EQUIPMENT:

  • 6” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade 360 For Multiplex
  • FRC ACT 2-Station Intercom System
  • Whelen Freedom IV 72” LED Lightbars
  • 12V Firetech Brow w/ ICC Lights
  • Whelen 600 Warning Lights
  • Firetech LED Aerial Spotlights
  • Firetech Guardian Elite 120V Tele
  • Guardian Elite Scene Light
  • Smart Power 10KW Generator

MONITOR:

  • Officer Side Monitor: Akron 3483 Stream Master 2, Manual 1250 GPM
  • Driver Side Monitor: Akron 3482 Stream Master2, Manual, 1250 GPM
