Delivery Date:
02/15/2019
Department Name:
Hugo Fire Department
Department City / State:
Hugo, MN

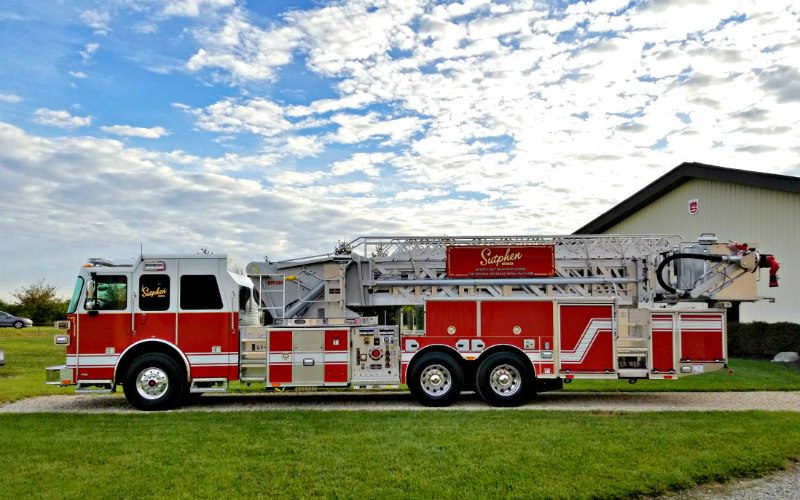

Sutphen Corporation – HS #6288

WHEEL BASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 7”

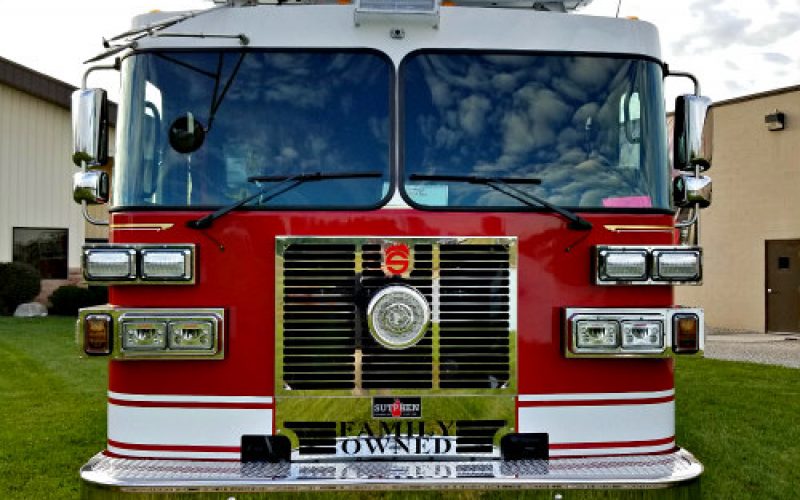

CHASSIS:          Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX- 2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslay: (1) 2 ½” with 2 ½” Swivel and (2) 2” with 1 ½” Swivel
  • Akron Brass 3480 Stream Master Monitors and Nozzles
  • 300 Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-up Compartment Doors
  • Over 290 cu. ft. of Compartment Space
  • Alco-Lite Ladders (115’, 14, (2) 16’, 24’ 2-Section, 35’ 2-Section & 10’ Folding)
  • Ladder Chute
  • SPH-3, Left 56” High, Right 56” High

OPTIONAL EQUIPMENT:

  • 12” Bumper Extension
  • Whelen 295HFS2 Electric Siren
  • Federal Q2B Siren
  • Whelen LED Warning Lights
  • Harrison 10kw Generator
  • HAAS Alert R2V System
  • Pike Pole Storage (6)
  • Whelen Pioneer PFH2, 12v, LED, Brow Light (1)
  • Whelen Pioneer PFH2, 12v, LED, Recessed, (1)
  • Whelen Pioneer PCPSM1A, 120v LED, Surface Mount (1)
  • Whelen Pioneer PFP2AC, 120v, Telescopic (4)
  • Brigade Backeye 360, Camera System

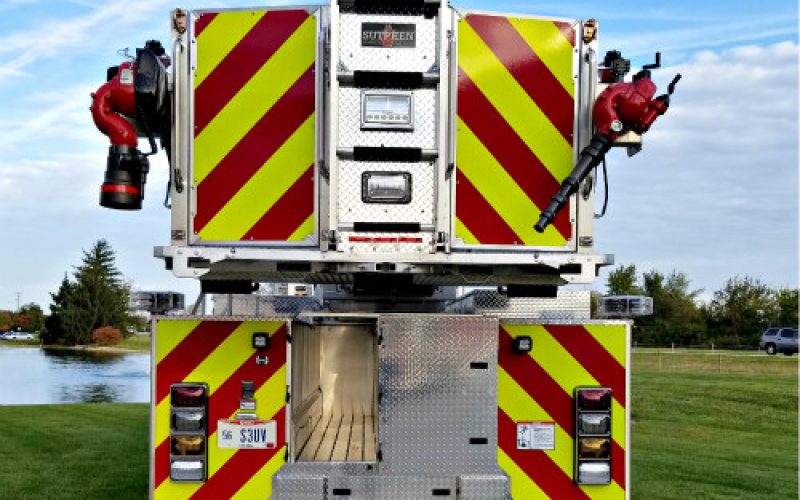

Monitors:

  • Drive Side Monitor: Akron 3480 Stream Master2, 2,000 GPM, Elec RF with 5178 Nozzle
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
