Delivery Date:
02/15/2019
Department Name:

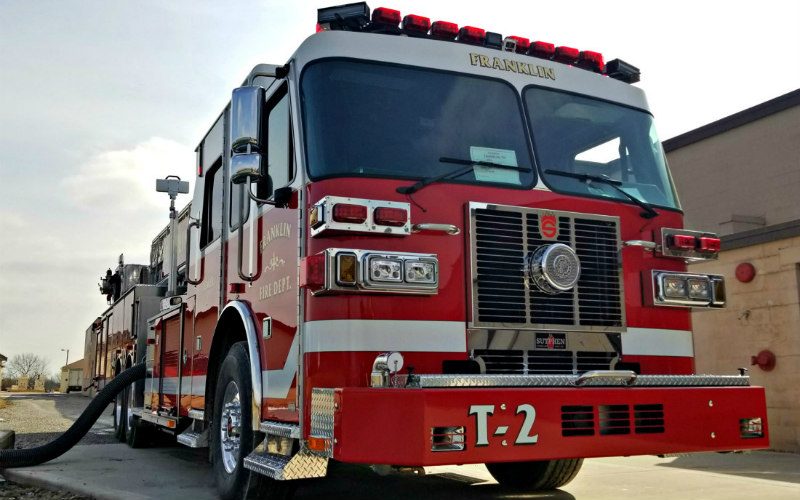

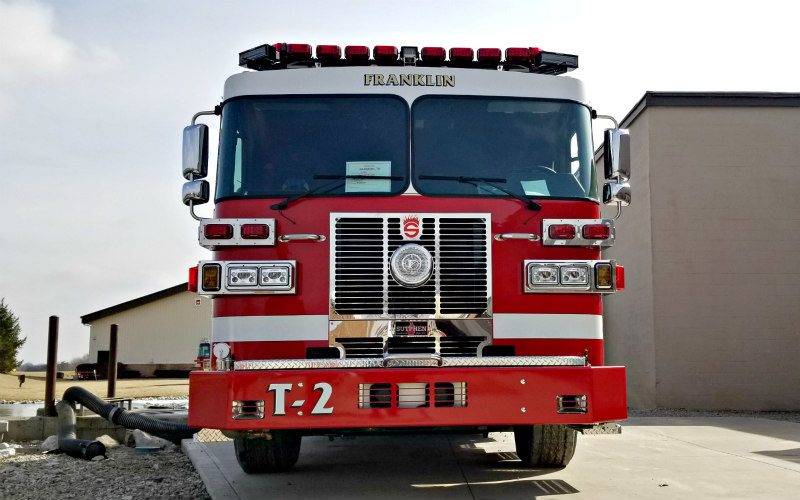

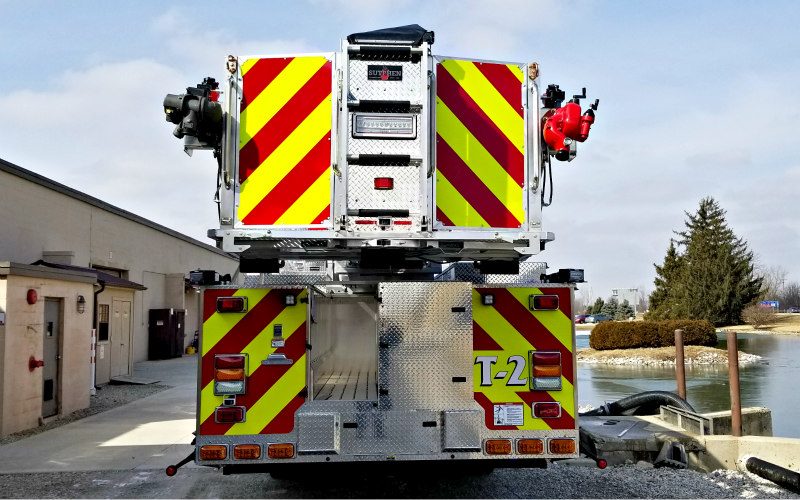

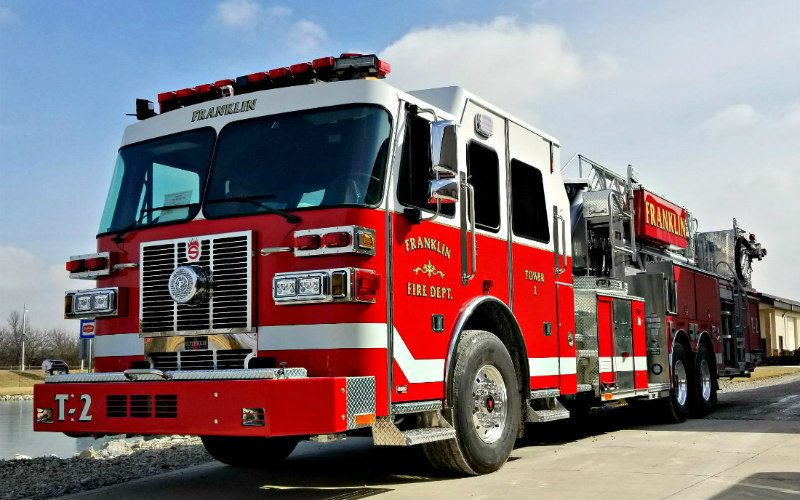

Franklin Fire Department
Department City / State:
Franklin, TN

Sutphen Corporation – HS #6353

Dealer – Southeast Fire

WHEEL BASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’

CHASSIS:          Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Idle Pro, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

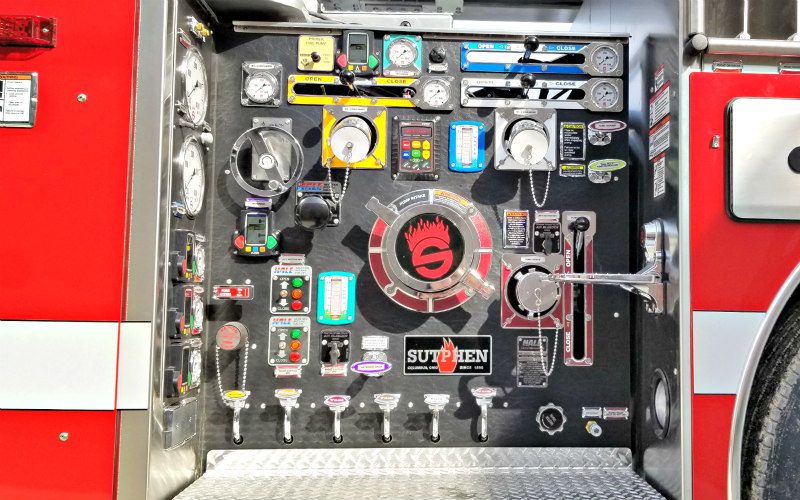

PUMP:                 Hale

  • QMAX- 2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper
  • Crosslay: (1) 2 ½”, 2 ½” Swivel and (2) 2” with 1 ½” Swivel
  • 300-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Akron Foam Supply System

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • ROM Roll-up Compartment Doors
  • 293 cu. ft. of Compartment Space
  • Alco-Lite Ladders (115’: 14’, (2) 16’, 24’ 2-Section, 35’ 2-Section & 10’ Folding)
  • Ladder Chute
  • SPH-3, Left 56” High, Right 56” High

OPTIONAL EQUIPMENT:

  • 18” Bumper Extension
  • Whelen 295HFS2 Electric Siren
  • Federal Q2B Siren
  • PowerArc Warning Lights
  • Smart Power 8kw Generator
  • Pike Pole Storage (6)
  • FRC Spectra Scene Light
  • FRC Spectra Tele Lights
  • Safety Vision SVR-4100 DVR, Camera System

Monitors:

  • Drive Side Monitor: Elkhart Cobra EXM 1250 GPM w/ Elkhart SM-1250E w/ 248A Stream Shaper
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
