Delivery Date:
03/19/2022
Department Name:
Fort Lauderdale Fire Rescue
Department City / State:
Fort Lauderdale, FL

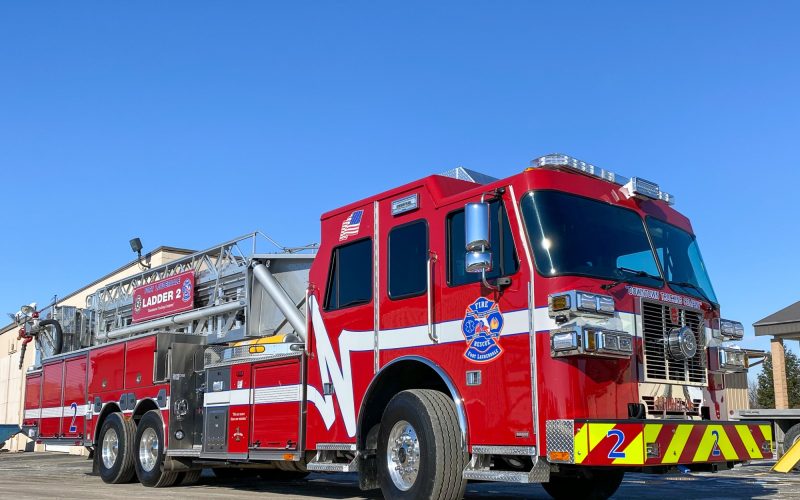

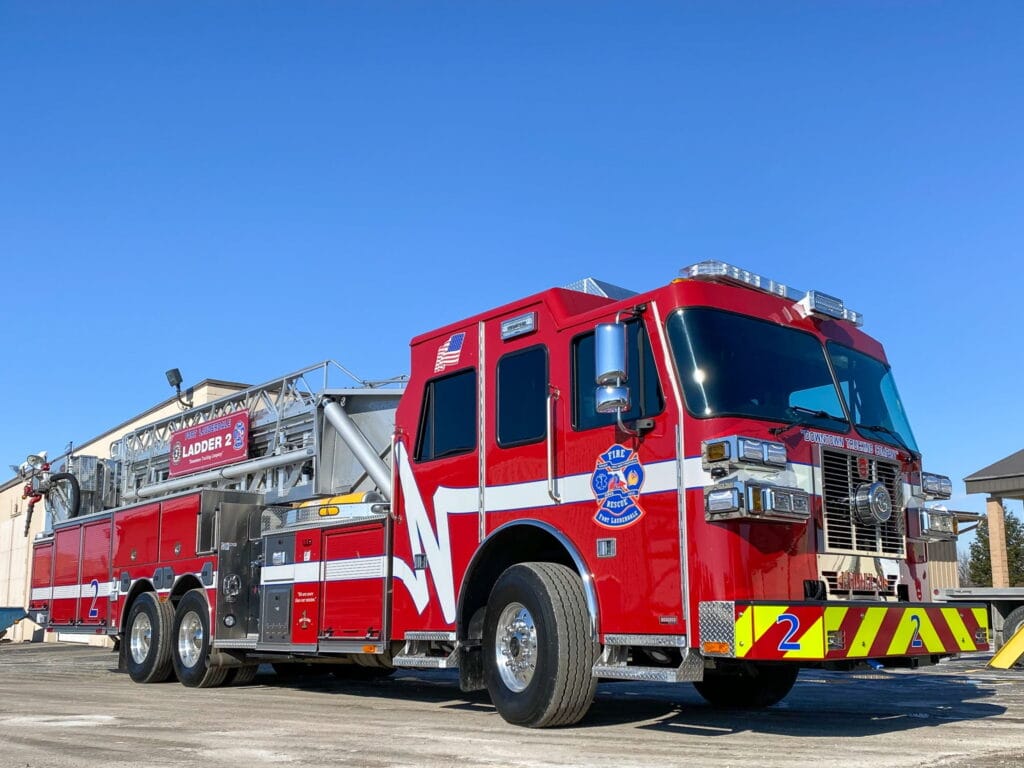

Sutphen Corporation – HS #6811

Dealer – South Florida Emergency Vehicles

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 7”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

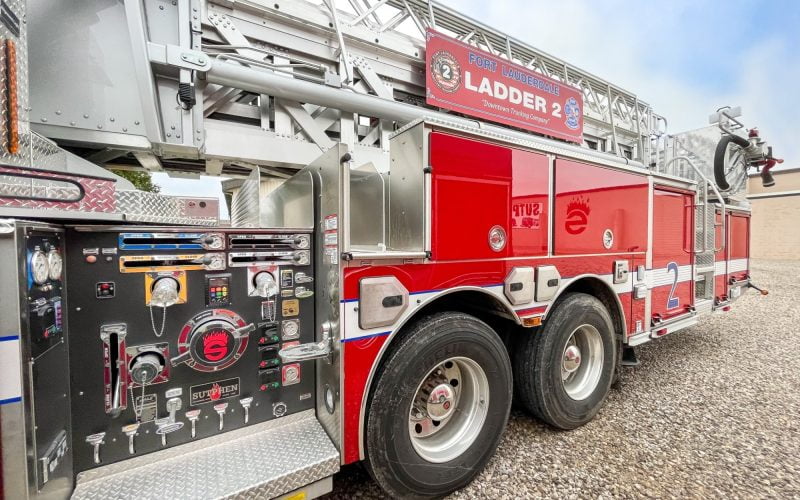

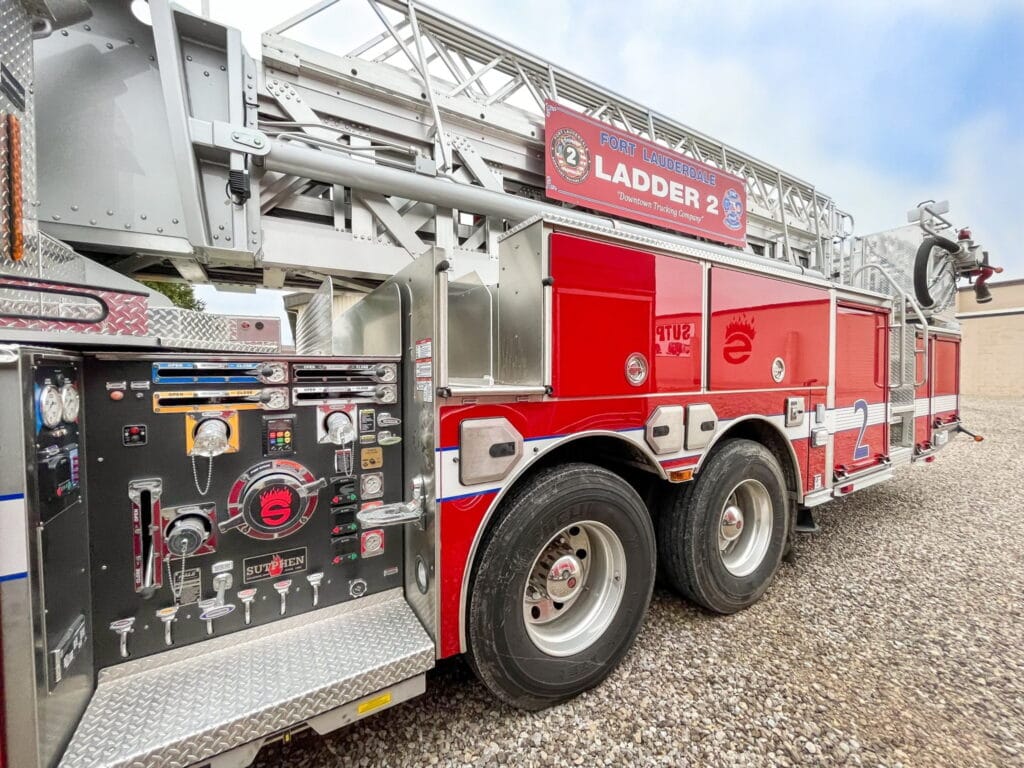

PUMP:                  Hale

  • QMAX – 2000 GPM 6” Suction, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslays: (1) 2 ½” Crosslay, (1) 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                   Sutphen

  • Huckbolted #304 Stainless Steel
  • SPH Mixed Roll-Up and Hinged Compartment Doors
  • Over 283 cu ft. Total Compartment Space
  • Alco-Lite Ladders: (1) 14’, (2) 16’, (1) 24’ 2-section, (1) 35 2-section & (1) 10’ Folding
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 12” Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Whelen Freedom IV 72” LED Lightbar
  • FRC Spectra Brow Light
  • FR Spectra 12V Scene Light
  • FR Spectra 240V Tele Lights
  • Camera System: FRC, Inview Trueview, Two Cameras (Wired)
  • Intercom System: FRC, ACT 2 – Station
