Delivery Date:
01/27/2023
Department Name:
Endwell Fire District
Department City / State:
Endwell, NY

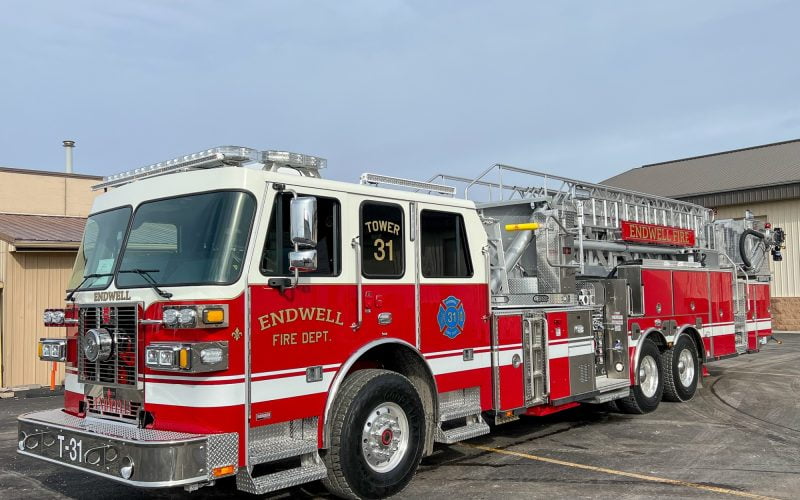

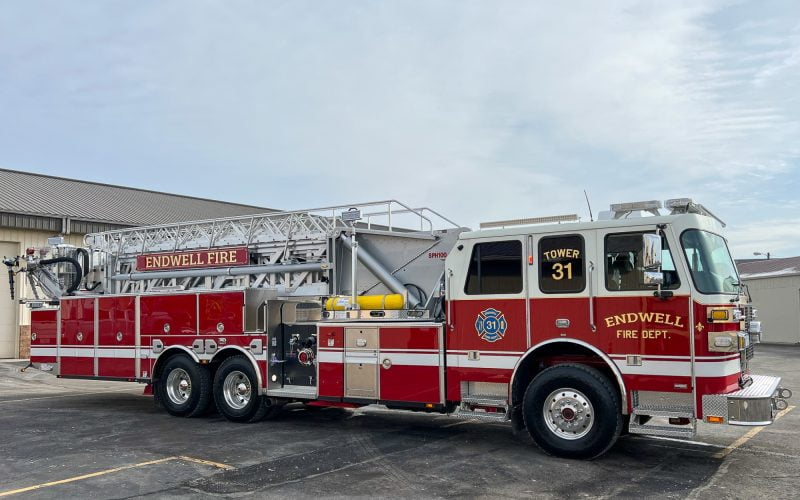

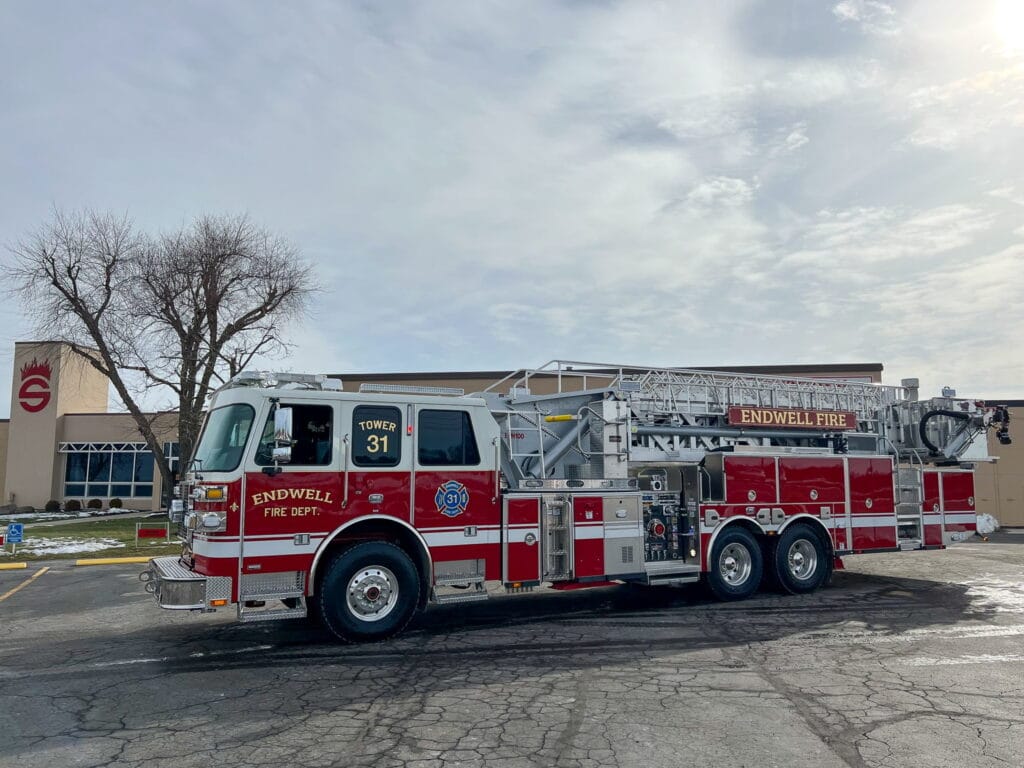

Sutphen Corporation – HS #7267

Dealer – Vander Molen Fire Apparatus Sales and Service

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 10”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ a Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15, 600HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4500

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • Hinged Compartment Doors
  • Over 280 cu ft. Total Compartment Space
  • Alco-Lite Ladder Package: 121’: 14’; 16’; 16’; 30’ 2-Section; 35’ 2-Section & 10’F
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: Wired Firecom 5100D, Single Radio, 6 Position
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: 8KW HYD
  • Camera System: FRC, Inview Trueview, Single Camera
  • Whelen Freedom IV 72” Lightbar
  • Whelen Mini Freedom IV 21” Lightbar
  • Whelen
  • FireTech 12V 80” Single Brow Light
  • FireTech 12V 27.2” Scene Light
  • FR Spectra 240V Tele Lights
  • FR Spectra 240V Tele Lights

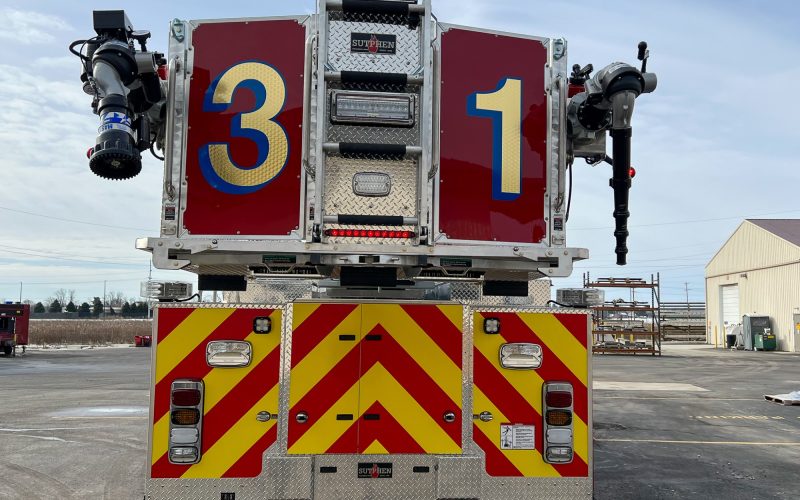

MONITOR:

  • Driver Side Monitor: TFT Monsoon RC, Electric w/ Electric VUM, (2) Panel Controllers & (1) Wireless Controller
  • Officer Side Monitor: TFT Monsoon, Manual 1250 GPM w/ Manual VUM
  • Driver Side Nozzle: TFT Master Stream 1250 GPM Electric
  • Officer Side Nozzle: TFT MST-4NJ Stacked Tips w/ XF-SS10 Stream Straightener
