Delivery Date:
01/05/2022
Department Name:
Egypt Fire Department
Department City / State:
Egypt, NY

Sutphen Corporation – HS #6903

Dealer – Herb Fire Equipment

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 7”

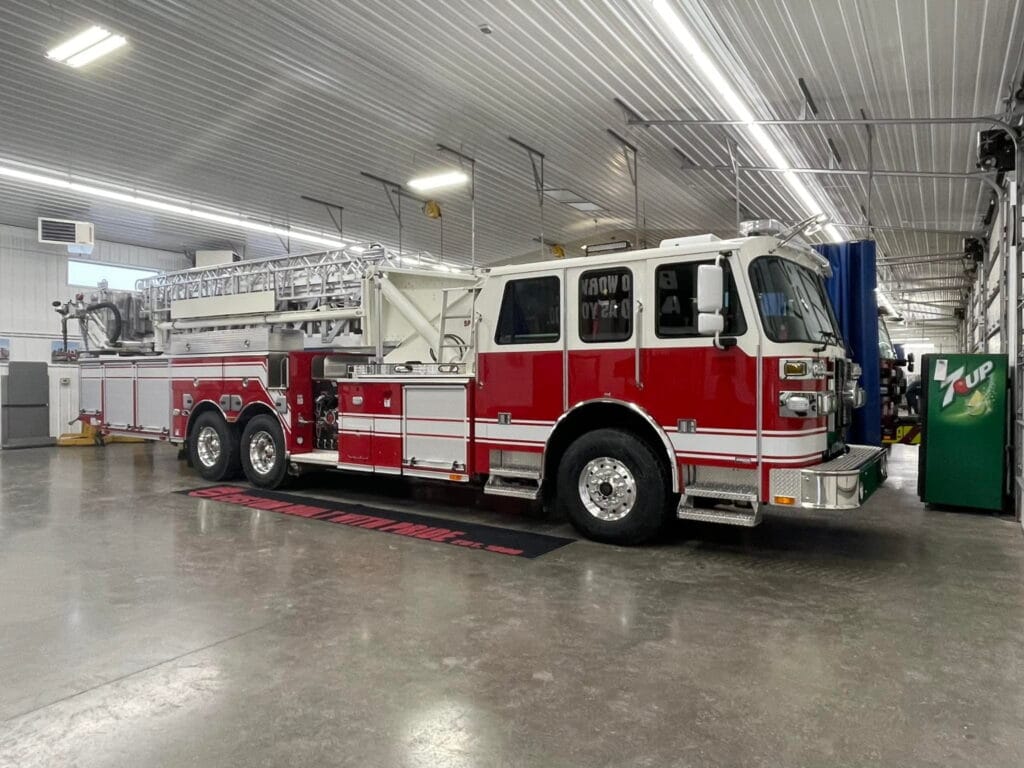

CHASSIS:          Sutphen Monarch Heavy-Duty Custom Chassis, 62” Flat

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15 565HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

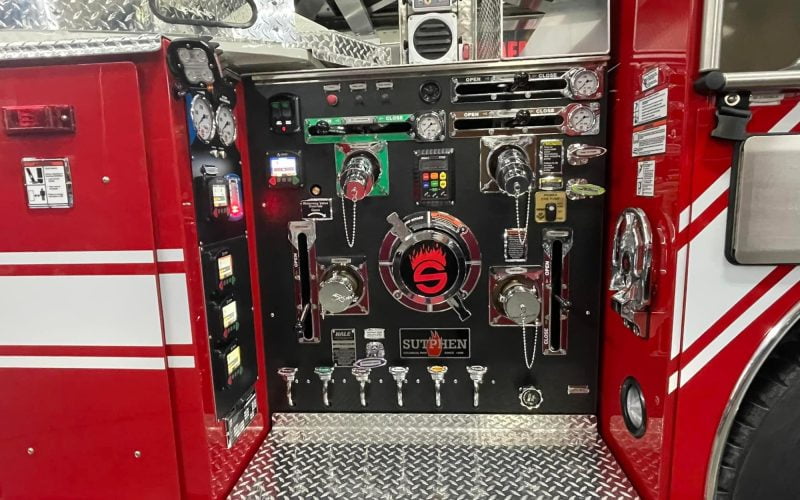

PUMP:                  Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right
  • Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank

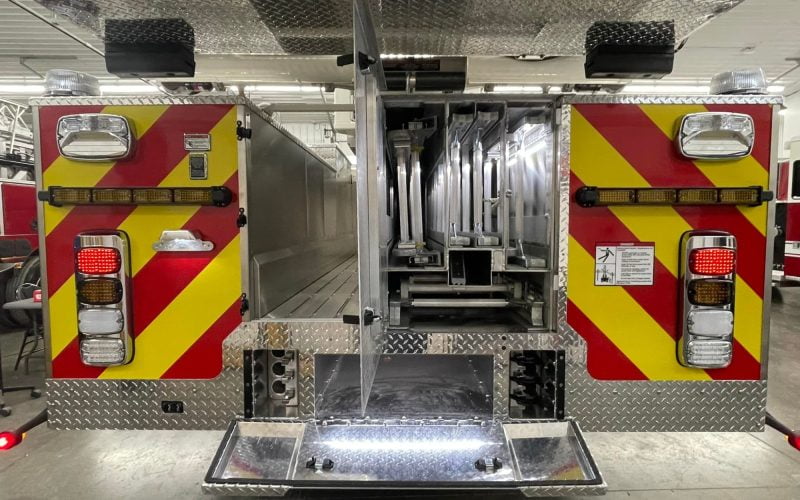

BODY:                   Sutphen

  • SPH Mixed Roll up and Hinged Compartment Doors
  • Over 245 cu ft. Total Compartment Space
  • Alco-Lite Ladder Package: 113’ 16’. 14’, 24’ – 2 Section, 35’ 2 – Section, & 10’ Folding
  • Body: SPH-7, LEFT 56″ H / RIGHT 48″ H

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • Intercom System: FRC ACT 3-Station
  • Hannay Electric Cord Reel, 200’ (1)
  • Generator: Harrison, 10KW HYD
  • Whelen Freedom IV 72” LED Lightbar
  • Whelen TAL85 Traffic Advisor
  • Firetech, 72” 3-Piece 12V LED Brow
  • Firetech 12V Scene
  • FR Spectra 240V Tele

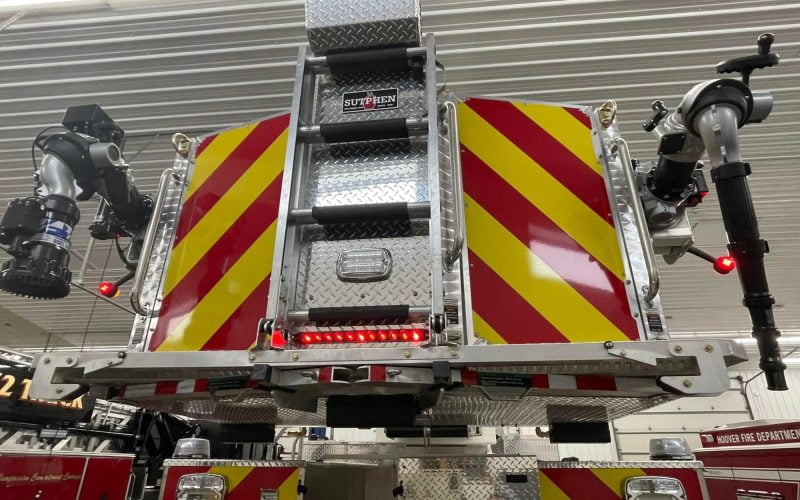

MONITOR:

  • Driver Side Monitor: TFT Monsoon RC Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: TFT Monsoon, Manual 1250 GPM
  • Officer Side Nozzle: TFT MST-4NJ Stacked Tips W/XF-ss10 Stream Straightener
